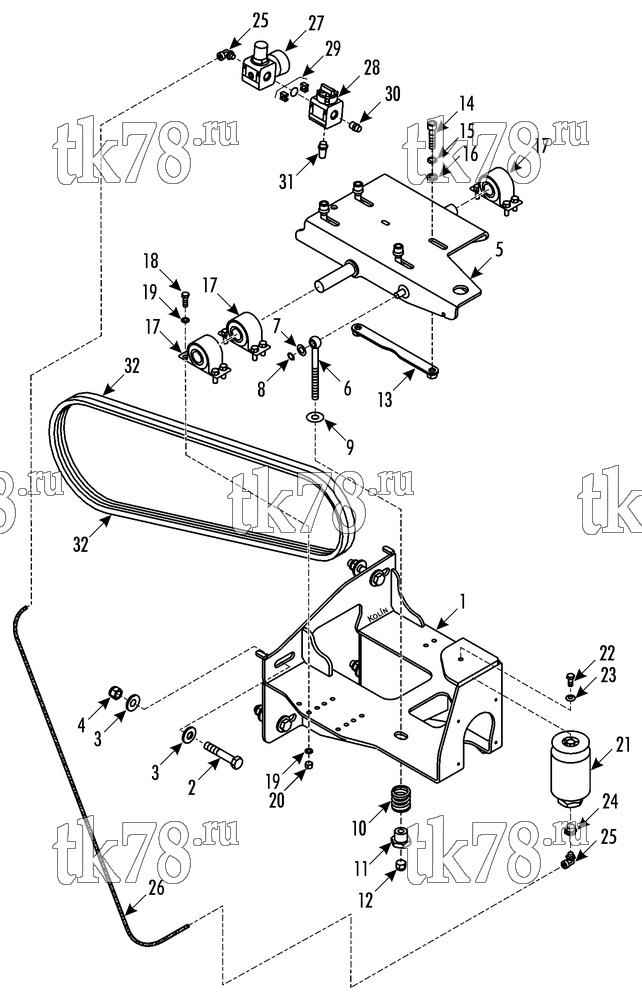

Установкa Thermo King Bus Drive Kits схема DRIVE KIT 700655 - KAROSA ARWAY, X430 – 219B8
Обновление от: 1/31/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-2422 | SUPPORT - assy | 1 | |
| 2 | 108-1838 | SCREW - support | 4 | |
| 3 | 51-1618 | WASHER - conical | 8 | |
| 4 | 51-1111 | NUT | 4 | |
| 5 | 108-2423 | BASE - compressor | 1 | |
| 6 | 108-2312 | BOLT - eye | 1 | |
| 7 | 55-5914 | FLATWASHER | 1 | |
| 8 | 108-2165 | RING | 1 | |
| 9 | 108-2313 | WASHER - spring | 1 | |
| 10 | 108-2166 | SPRING | 1 | |
| 11 | 108-2167 | INSERT | 1 | |
| 12 | 51-143 | NUT | 1 | |
| 13 | 108-2424 | PLATE | 2 | |
| 14 | 55-6279 | SCREW - plate | 4 | |
| 15 | 55-1173 | LOCKWASHER | 4 | |
| 16 | 55-7072 | WASHER | 4 | |
| 17 | 108-2161 | SILENTBLOCK | 3 | |
| 18 | 55-5424 | SCREW - silentblock | 12 | |
| 19 | 55-4613 | FLATWASHER | 24 | |
| 20 | 51-1114 | NUT | 12 | |
| 21 | 108-2175 | SPRING - air | 1 | |
| 22 | 55-5022 | SCREW - airspring | 1 | |
| 23 | 51-779 | WASHER - conical | 1 | |
| 24 | 108-2176 | REDUCTION | 1 | |
| 25 | 108-2177 | ELBOW | 2 | |
| 26 | 108-2178 | HOSE | 1 | |
| 27 | 108-2179 | VALVE - pressure regulator | 1 | |
| 28 | 108-2180 | VALVE - shut-off | 1 | |
| 29 | 108-2181 | KIT - fixing | 1 | |
| 30 | 108-2182 | CONNECTOR - male | 1 | |
| 31 | 108-2183 | SILENCER | 1 | |
| 32 | 78-1548 | BELT | 2 |
