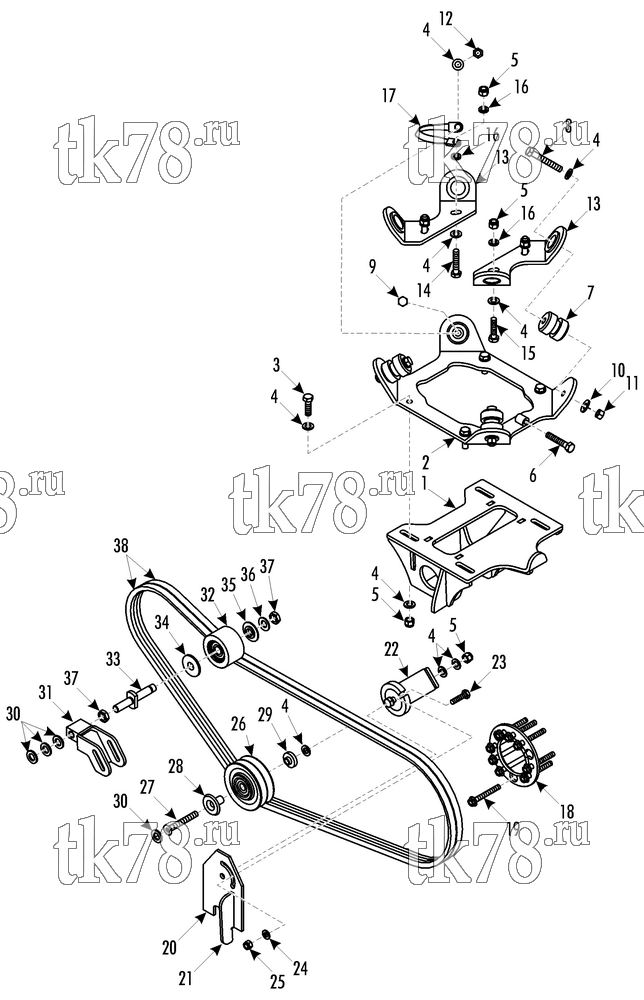

Установкa Thermo King Bus Drive Kits схема DRIVE KIT 700895 - VOLVO B12B/E3/E4, X430 – 216B1
Обновление от: 11/2/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-2108 | BRACKET - assy | 1 | |
| 2 | 92-4356 | SUPPORT | 1 | |
| 3 | 55-7350 | SCREW - support | 4 | |
| 4 | 55-5914 | FLATWASHER | 20 | |
| 5 | 51-143 | NUT | 9 | |
| 6 | 108-2109 | SCREW - tension | 1 | |
| 7 | 108-2343 | MOUNT - vibration | 4 | |
| 8 | 55-7023 | SCREW - mount | 3 | |
| 9 | 55-7001 | SCREW - mount | 1 | |
| 10 | 51-145 | WASHER | 4 | |
| 11 | 55-8471 | NUT | 3 | |
| 12 | 55-7003 | NUT | 1 | |
| 13 | 108-2344 | SUPPORT - compressor | 2 | |
| 14 | 108-1930 | SCREW - support | 1 | |
| 15 | 108-1745 | SCREW - support | 3 | |
| 16 | 55-399 | WASHER | 5 | |
| 17 | 92-4344 | STRAP - ground | 1 | |
| 18 | 108-2118 | SPACER | 1 | |
| 19 | 108-2119 | BOLT | 9 | |
| 20 | 108-2111 | PLATE - rosta | 1 | |
| 21 | 108-2110 | RULER | 1 | |
| 22 | 51-777 | ROSTA | 1 | |
| 23 | 55-5427 | SCREW - rosta position | 1 | |
| 24 | 55-7072 | FLATWASHER | 1 | |
| 25 | 51-1086 | NUT | 1 | |
| 26 | 108-2112 | PULLEY - complete | 1 | |
| 108-2113 | PULLEY | 1 | ||
| 51-778 | RING | 1 | ||
| 108-1603 | BEARING | 2 | ||
| 55-5663 | RING - retaining | 1 | ||
| 27 | 108-2121 | SCREW - pulley | 1 | |
| 28 | 108-2122 | SPACER - pulley | 1 | |
| 29 | 108-2115 | SPACER - pulley | 1 | |
| 30 | 51-152 | FLATWASHER | 4 | |
| 31 | 92-4346 | BRACKET - tensioning pulley | 1 | |
| 32 | 77-2806 | PULLEY - tensioning, complete | 1 | |
| 108-1617 | PULLEY | 1 | ||
| 51-778 | RING | 1 | ||
| 108-1603 | BEARING | 2 | ||
| 55-5663 | RING - retaining | 1 | ||
| 33 | 108-2116 | AXIS - pulley | 1 | |
| 34 | 108-1621 | CAP | 1 | |
| 35 | 108-2110 | CAP | 1 | |
| 36 | 108-2009 | WASHER | 1 | |
| 37 | 108-2117 | NUT | 2 | |
| 38 | 108-2134 | BELT | 2 |
