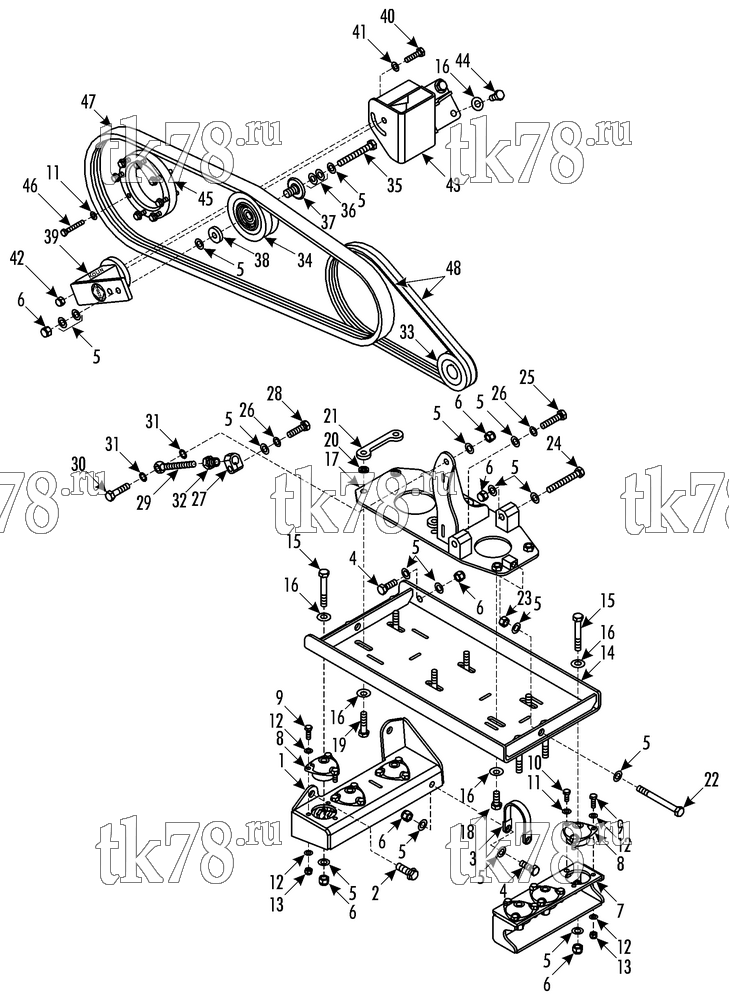

Установкa Thermo King Bus Drive Kits схема DRIVE KIT 700734 - MAN R33 X430 w/Engine Pulley – 211D4
Обновление от: 5/9/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-2241 | BRACKET - assembly | 1 | |
| 2 | 108-2242 | BOLT - bracket to chassis | 3 | |
| 3 | 92-4344 | STRAP - ground | 1 | |
| 4 | 51-140 | SCREW | 2 | |
| 5 | 55-5914 | FLATWASHER | 21 | |
| 6 | 51-143 | NUT | 11 | |
| 7 | 108-2243 | HOLDER - side | 1 | |
| 8 | 92-2963 | SILENTBLOCK | 6 | |
| 9 | 55-5424 | SCREW - silentblock | 15 | |
| 10 | 55-5022 | SCREW - silentblock | 3 | |
| 11 | 51-779 | WASHER - conical | 11 | |
| 12 | 55-7069 | FLATWASHER | 30 | |
| 13 | 51-1114 | NUT | 15 | |
| 14 | 108-2244 | BASE - compressor | 1 | |
| 15 | 55-7023 | SCREW - base to silentblock | 6 | |
| 16 | 51-145 | WASHER - conical | 15 | |
| 17 | 108-2245 | PLATE - compressor | 1 | |
| 18 | 55-4723 | SCREW - compressor plate | 2 | |
| 19 | 108-1745 | SCREW - compressor & compressor plate | 4 | |
| 20 | 55-399 | WASHER | 4 | |
| 21 | 92-4472 | PLATE - threaded | 2 | |
| 22 | 55-7571 | SCREW - compressor plate position | 1 | |
| 23 | 55-8471 | NUT | 1 | |
| 24 | 55-7001 | SCREW - alternator | 1 | |
| 25 | 108-2071 | SCREW - alternator | 1 | |
| 26 | 55-6283 | LOCKWASHER | 2 | |
| 27 | 108-2073 | CLAMP | 1 | |
| 28 | 108-2075 | SCREW - clamp | 1 | |
| 29 | 108-2246 | BOLT - eye (tension) | 1 | |
| 30 | 55-8469 | SCREW - eye | 1 | |
| 31 | 55-7024 | FLATWASHER | 2 | |
| 32 | 108-2074 | NUT | 1 | |
| 33 | 108-2076 | PULLEY | 1 | |
| 34 | 108-2112 | PULLEY - complete | 1 | |
| 108-2113 | PULLEY | 1 | ||
| 108-1603 | BEARING | 2 | ||
| 51-778 | RING | 1 | ||
| 55-5663 | RING - retaining | 1 | ||
| 35 | 108-2015 | SCREW - pulley | 1 | |
| 36 | 77-2819 | SPACER - pulley | 2 | |
| 37 | 108-2114 | SPACER - pulley | 1 | |
| 38 | 108-2115 | SPACER - pulley | 1 | |
| 39 | 51-1089 | ROSTA | 1 | |
| 40 | 55-5427 | SCREW - rosta position | 1 | |
| 41 | 55-7072 | FLATWASHER | 1 | |
| 42 | 51-1086 | NUT | 1 | |
| 43 | 108-2247 | BRACKET - rosta | 1 | |
| 44 | 51-1339 | SCREW - bracket | 3 | |
| 45 | 108-2077 | SPACER - pulley | 1 | |
| 46 | 55-7167 | SCREW - pulley | 8 | |
| 47 | 78-1464 | BELT | 1 | |
| 48 | 108-1896 | BELT | 2 |
