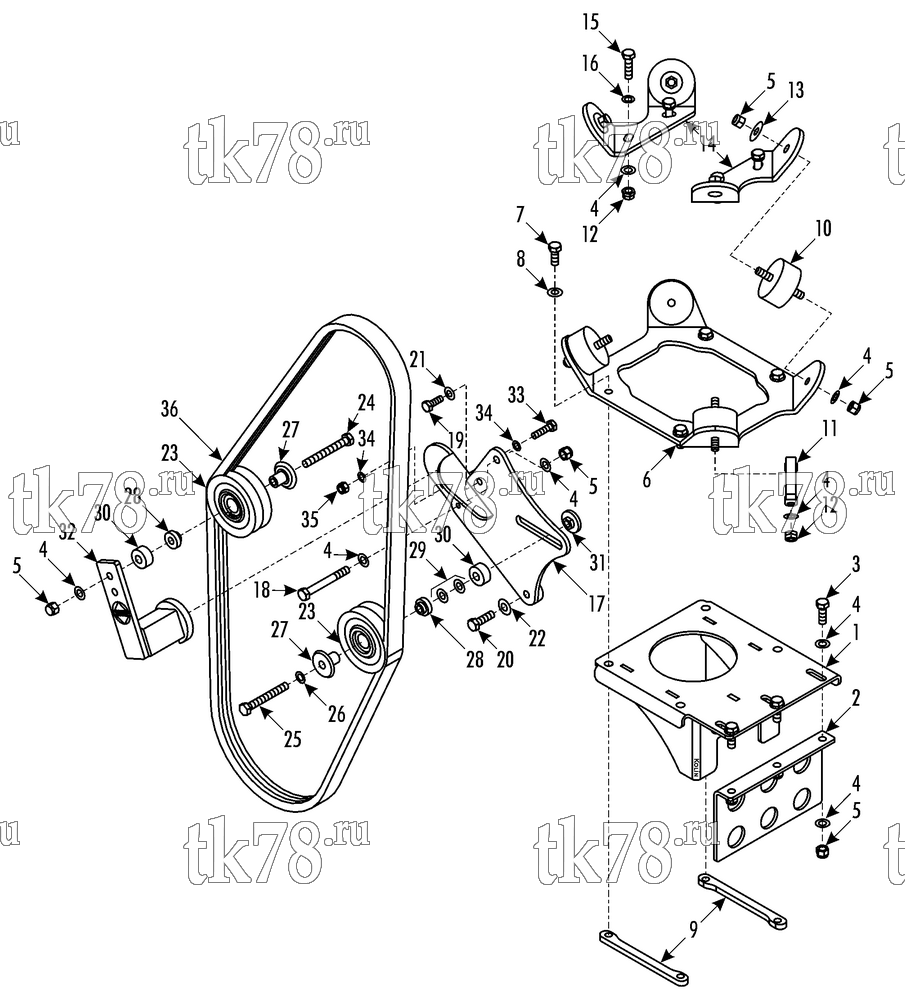

Установкa Thermo King Bus Drive Kits схема DRIVE KIT 700021 - IVECO City Class X430 w/o Pulley – 211D3
Обновление от: 5/5/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-2012 | PLATE - assembly | 1 | |
| 2 | 108-2130 | PLATE | 1 | |
| 3 | 51-140 | SCREW - plate to plate | 3 | |
| 4 | 55-5914 | FLATWASHER | 17 | |
| 5 | 51-143 | NUT | 11 | |
| 6 | 108-2013 | SUPPORT | 1 | |
| 7 | 55-4723 | SCREW - support to plate | 4 | |
| 8 | 51-1113 | WASHER | 4 | |
| 9 | 108-2014 | PLATE - threaded | 2 | |
| 10 | 92-3058 | SILENTBLOCK | 4 | |
| 11 | 92-4344 | STRAP - ground | 1 | |
| 12 | 55-7003 | NUT | 6 | |
| 13 | 108-1746 | FLATWASHER | 4 | |
| 14 | 92-4341 | SUPPORT - compressor | 2 | |
| 15 | 51-1115 | SCREW - compressor | 4 | |
| 16 | 55-399 | WASHER | 4 | |
| 17 | 92-3005 | BRACKET | 1 | |
| 18 | 55-7168 | SCREW - bracket | 1 | |
| 19 | 55-7004 | SCREW - bracket | 1 | |
| 20 | 55-7350 | SCREW - bracket | 1 | |
| 21 | 51-144 | WASHER - conical | 1 | |
| 22 | 51-145 | WASHER - conical | 1 | |
| 23 | 77-2818 | PULLEY - complete | 2 | |
| 77-2765 | PULLEY | 2 | ||
| 108-2229 | BEARING | 4 | ||
| 92-3020 | SPACER | 2 | ||
| 55-7437 | RING - retaining | 2 | ||
| 24 | 51-1088 | SCREW - pulley | 1 | |
| 25 | 108-2015 | SCREW - pulley | 1 | |
| 26 | 55-6283 | WASHER | 1 | |
| 27 | 77-2821 | SPACER - pulley | 2 | |
| 28 | 77-2822 | SPACER - pulley | 2 | |
| 29 | 77-2819 | SPACER - pulley | 2 | |
| 30 | 108-2016 | SPACER - pulley | 2 | |
| 31 | 108-2017 | NUT - special | 1 | |
| 32 | 51-1089 | ROSTA | 1 | |
| 33 | 55-5427 | SCREW - rosta position | 1 | |
| 34 | 55-4625 | FLATWASHER | 2 | |
| 35 | 51-1086 | NUT | 1 | |
| 36 | 108-1872 | BELT | 1 |
