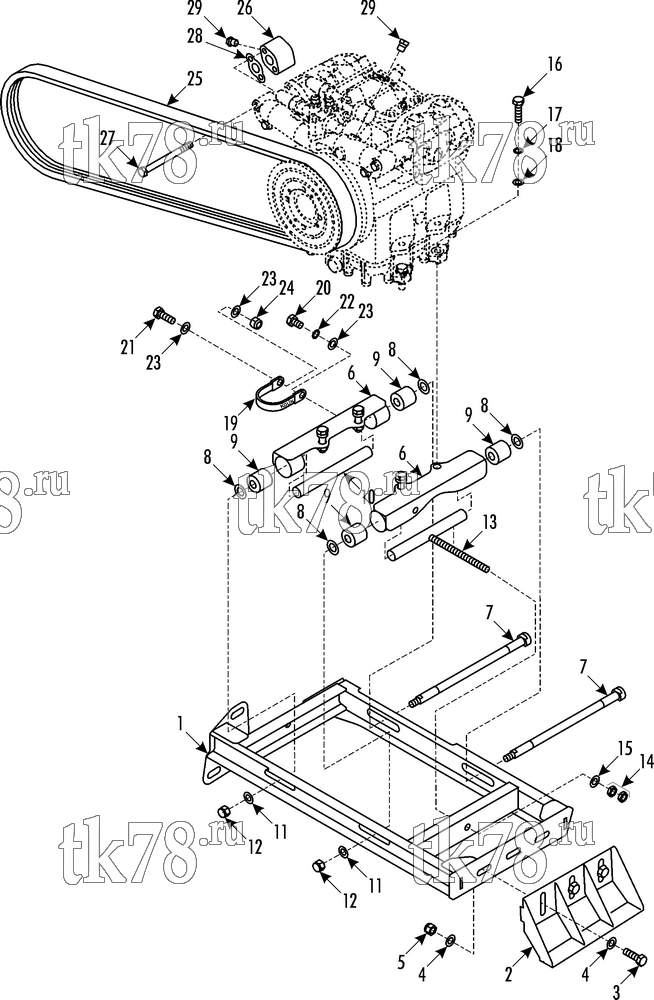

Установкa Thermo King Bus Drive Kits схема DRIVE KIT 720167 - Iveco 397 SRI F2B/E3/X430/Spain – 202D3
Обновление от: 2/8/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-2049 | BRACKET - compressor | 1 | |
| 2 | 108-2050 | BRACKET - side | 1 | |
| 3 | 55-7350 | SCREW - side bracket to compressor bracket | 3 | |
| 4 | 55-5914 | FLATWASHER | 6 | |
| 5 | 51-143 | NUT | 3 | |
| 6 | 108-2051 | PLATE - silentblock | 2 | |
| 7 | 108-2052 | PIVOT - plate | 2 | |
| 8 | 51-152 | FLATWASHER | 4 | |
| 9 | 108-1883 | SILENTBLOCK | 4 | |
| 10 | 108-2053 | TUBE - distance | 1 | |
| 11 | 55-5914 | FLATWASHER | 2 | |
| 12 | 51-143 | NUT | 2 | |
| 13 | 108-2054 | TUBE - distance, tension | 1 | |
| 14 | 55-9871 | NUT - tube | 2 | |
| 15 | 55-5914 | FLATWASHER | 1 | |
| 16 | 51-1115 | SCREW - compressor to bracket | 4 | |
| 17 | 55-5006 | LOCKWASHER | 4 | |
| 18 | 55-399 | WASHER | 4 | |
| 19 | 92-4344 | STRAP - ground | 1 | |
| 20 | 108-2055 | SCREW - ground strap | 1 | |
| 21 | 51-140 | SCREW - ground strap | 1 | |
| 22 | 55-5006 | LOCKWASHER | 1 | |
| 23 | 55-5914 | FLATWASHER | 3 | |
| 24 | 51-143 | NUT | 1 | |
| 25 | 108-2056 | BELT | 1 | |
| 26 | 108-1718 | ADAPTER | 2 | |
| 27 | 55-2888 | SCREW - adapter | 4 | |
| 28 | 33-2805 | GASKET | 2 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 29 | 55-3364 | PLUG | 2 |
