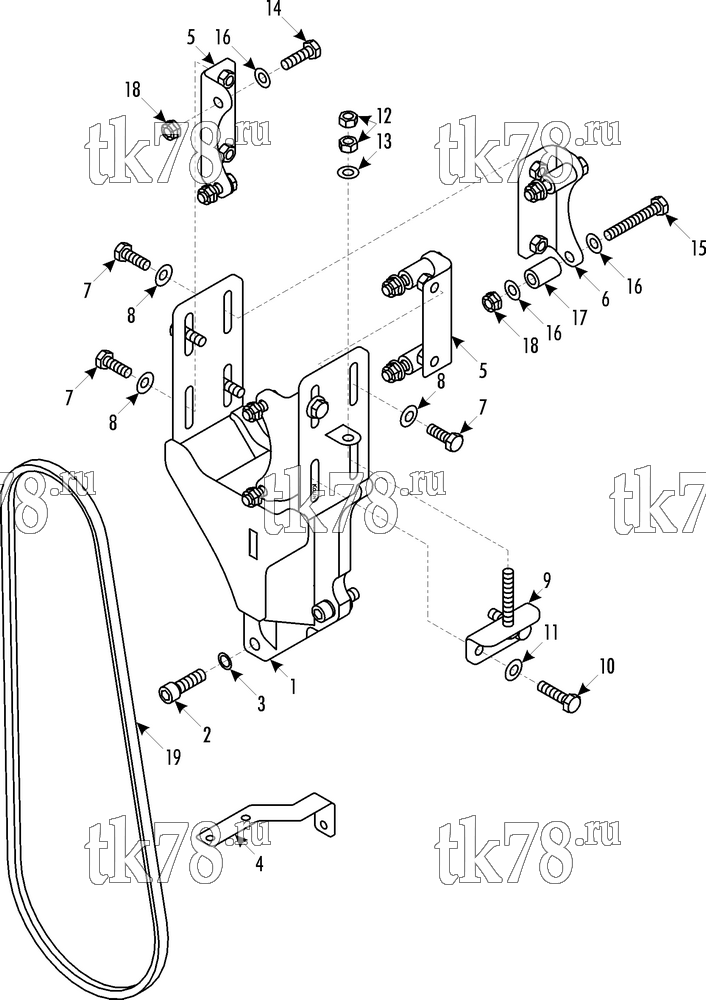

Установкa Thermo King Bus Drive Kits схема DRIVE KIT 700036 - DAF DB250, TM08 – 202B0
Обновление от: 2/8/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-2058 | BRACKET - assembly | 1 | |
| 2 | 51-1007 | SCREW - bracket | 3 | |
| 3 | 55-5006 | LOCKWASHER | 3 | |
| 4 | 108-2059 | PLATE - reinforcement | 1 | |
| 5 | 108-2060 | PLATE - compressor | 2 | |
| 6 | 108-2061 | PLATE - compressor | 2 | |
| 7 | 55-7004 | SCREW - plate to bracket | 6 | |
| 8 | 51-144 | WASHER | 6 | |
| 9 | 108-2062 | PLATE - tensioning | 2 | |
| 10 | 55-5427 | SCREW - tensioning plate | 2 | |
| 11 | 51-144 | WASHER | 2 | |
| 12 | 55-6573 | NUT | 1 | |
| 13 | 55-7072 | FLATWASHER | 1 | |
| 14 | 55-4680 | SCREW - compressor to plate | 4 | |
| 15 | 55-5419 | SCREW - compressor to plate | 4 | |
| 16 | 55-7072 | FLATWASHER | 12 | |
| 17 | 108-2063 | SPACER | 4 | |
| 18 | 55-7005 | NUT | 8 | |
| 19 | 108-2064 | BELT | 1 |
