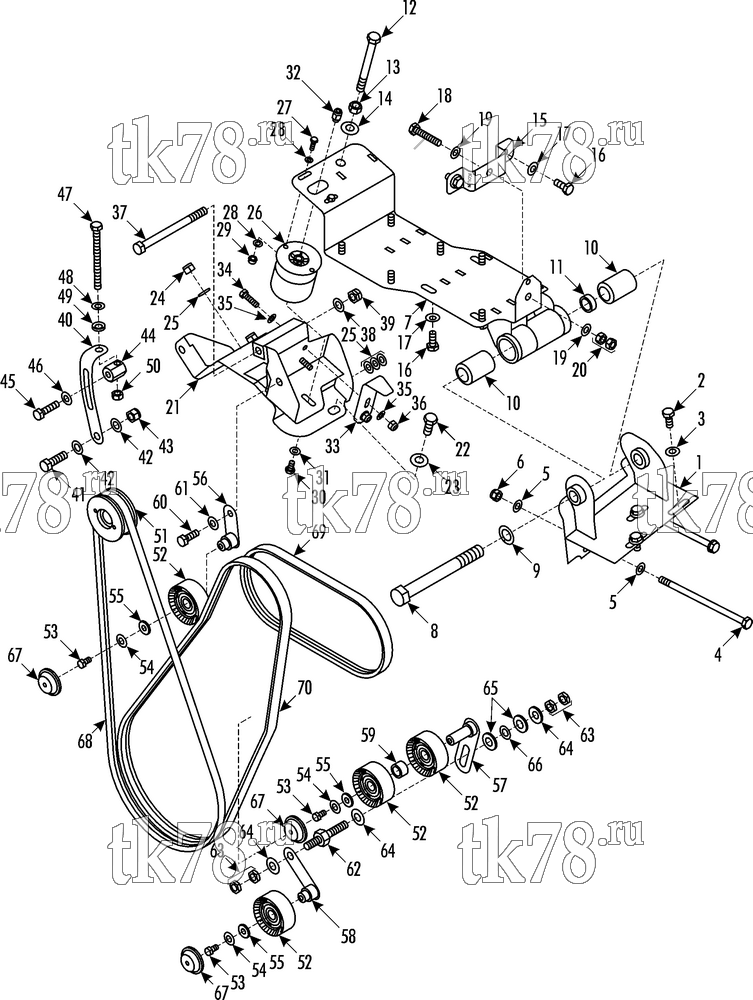

Установкa Thermo King Bus Drive Kits схема DRIVE KIT 715559 - Agora Line, 2xTM31 – 199H7
Обновление от: 2/8/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-1805 | MOUNTING | 1 | |
| 2 | 55-5579 | SCREW - mounting to chassis | 3 | |
| 3 | 51-144 | WASHER | 3 | |
| 4 | 108-1806 | SCREW - mounting to chassis | 2 | |
| 5 | 55-7072 | FLATWASHER | 4 | |
| 6 | 51-1086 | NUT | 2 | |
| 7 | 108-1807 | HOLDER - compressor | 1 | |
| 8 | 108-1808 | SCREW - holder to mounting | 1 | |
| 9 | 108-1809 | LOCKWASHER | 1 | |
| 10 | 108-1810 | SILENTBLOCK | 2 | |
| 11 | 108-1811 | SPACER | 1 | |
| 12 | 55-7571 | SCREW - holder | 1 | |
| 13 | 55-8471 | NUT | 1 | |
| 14 | 51-154 | WASHER | 1 | |
| 15 | 108-1812 | BRACKET - compressor | 1 | |
| 16 | 55-5579 | SCREW - compressor to holder & bracket | 10 | |
| 17 | 51-144 | WASHER | 10 | |
| 18 | 55-7684 | SCREW - bracket to holder | 1 | |
| 19 | 55-7072 | FLATWASHER | 2 | |
| 20 | 55-6573 | NUT | 2 | |
| 21 | 108-1813 | SUPPORT - alternator | 1 | |
| 22 | 55-4723 | SCREW - support | 1 | |
| 23 | 51-145 | WASHER | 1 | |
| 24 | 51-1086 | NUT | 2 | |
| 25 | 55-7072 | FLATWASHER | 14 | |
| 26 | 108-1814 | SPRING - air | 1 | |
| 27 | 55-5955 | SCREW - air spring to compressor holder | 2 | |
| 28 | 55-4638 | FLATWASHER | 4 | |
| 29 | 55-7007 | NUT | 2 | |
| 30 | 55-4998 | SCREW - air spring to alternator support | 1 | |
| 31 | 55-7069 | FLATWASHER | 1 | |
| 32 | 108-1815 | CONNECTION - air | 1 | |
| 33 | 108-1816 | LIMITER | 1 | |
| 34 | 55-6215 | SCREW - limiter | 2 | |
| 35 | 55-7069 | FLATWASHER | 4 | |
| 36 | 51-1114 | NUT | 2 | |
| 37 | 108-1817 | SCREW - alternator | 1 | |
| 38 | 55-5914 | FLATWASHER | 1 | |
| 39 | 55-7003 | NUT | 1 | |
| 40 | 108-1818 | ADJUSTER | 1 | |
| 41 | 55-7350 | SCREW - adjuster to alternator support | 1 | |
| 42 | 55-5914 | FLATWASHER | 2 | |
| 43 | 51-143 | NUT | 1 | |
| 44 | 108-1819 | NUT - arresting | 1 | |
| 45 | 55-5427 | SCREW - nut | 1 | |
| 46 | 51-144 | WASHER | 1 | |
| 47 | 55-9363 | SCREW | 1 | |
| 48 | 51-160 | WASHER | 1 | |
| 49 | 51-161 | WASHER | 1 | |
| 50 | 55-6573 | NUT | 1 | |
| 51 | 108-1820 | PULLEY | 1 | |
| 52 | 108-1821 | PULLEY | 4 | |
| 53 | 55-4998 | SCREW - pulley | 3 | |
| 54 | 51-144 | WASHER | 3 | |
| 55 | 108-1822 | FLANGE | 3 | |
| 56 | 108-1823 | ARM - short | 1 | |
| 57 | 108-1824 | ARM - slotted | 1 | |
| 58 | 108-1825 | ARM | 1 | |
| 59 | 108-1826 | SPACER | 1 | |
| 60 | 55-7004 | SCREW - arm | 1 | |
| 61 | 51-144 | WASHER | 1 | |
| 62 | 108-1827 | SCREW - arm | 1 | |
| 63 | 51-221 | NUT | 4 | |
| 64 | 51-145 | WASHER | 3 | |
| 65 | 18-1828 | SPACER | 2 | |
| 66 | 55-5914 | FLATWASHER | 1 | |
| 67 | 108-1829 | CAP - protective | 3 | |
| 68 | 108-1830 | BELT | 1 | |
| 69 | 108-1831 | BELT | 1 | |
| 70 | 108-1832 | BELT | 1 |
