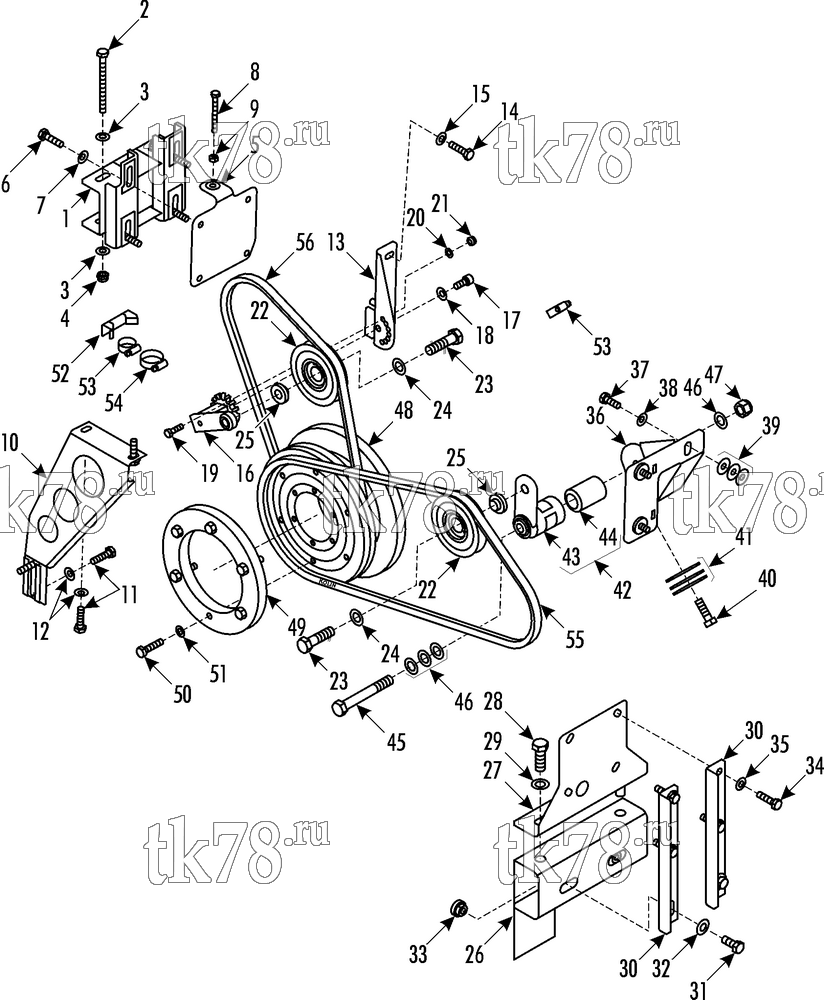

Установкa Thermo King Bus Drive Kits схема DRIVE KIT 715558 - Vanhool/MAN, 2xTM31 – 199G0
Обновление от: 2/8/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 108-1781 | HOLDER - compressor | 1 | |
| 2 | 55-9363 | SCREW - holder | 2 | |
| 3 | 51-144 | WASHER | 4 | |
| 4 | 55-7005 | NUT | 2 | |
| 5 | 108-1782 | PLATE - complete | 1 | |
| 6 | 55-5427 | SCREW - plate to holder & compressor | 4 | |
| 7 | 51-144 | WASHER | 4 | |
| 8 | 55-4647 | SCREW - plate to holder | 1 | |
| 9 | 55-4621 | NUT | 1 | |
| 10 | 108-1783 | SUPPORT - assembly | 1 | |
| 11 | 55-5427 | SCREW - support | 4 | |
| 12 | 51-144 | WASHER | 2 | |
| 13 | 108-1784 | BRACKET | 1 | |
| 14 | 55-5427 | SCREW - bracket to compressor | 2 | |
| 15 | 51-144 | WASHER | 2 | |
| 16 | 108-1785 | BRACKET - pulley | 1 | |
| 17 | 55-5957 | SCREW - pulley bracket to bracket | 1 | |
| 18 | 51-144 | WASHER | 1 | |
| 19 | 55-6215 | SCREW - pulley bracket position | 1 | |
| 20 | 55-7069 | FLATWASHER | 1 | |
| 21 | 55-7006 | NUT | 1 | |
| 22 | 108-1786 | PULLEY - complete | 1 | |
| 108-1787 | PULLEY | 1 | ||
| 77-2766 | BEARING | 2 | ||
| 55-7437 | RING - retaining | 1 | ||
| 23 | 108-1788 | SCREW - pulley | 2 | |
| 24 | 51-152 | FLATWASHER | 2 | |
| 25 | 108-1789 | SPACER | 2 | |
| 26 | 108-1790 | BASE | 1 | |
| 27 | 108-1791 | SUPPORT - compressor | 1 | |
| 28 | 51-200 | SCREW - support to base | 2 | |
| 29 | 51-152 | FLATWASHER | 2 | |
| 30 | 108-1792 | SUPPORT - vertical | 2 | |
| 31 | 55-4723 | SCREW - support to base | 2 | |
| 32 | 51-145 | WASHER | 2 | |
| 33 | 108-1793 | NUT | 2 | |
| 34 | 55-5427 | SCREW - support to compressor | 4 | |
| 35 | 51-144 | WASHER | 4 | |
| 36 | 108-1794 | PLATE - assembly | 1 | |
| 37 | 55-7004 | SCREW - plate to compressor | 3 | |
| 38 | 51-144 | WASHER | 3 | |
| 39 | 108-1591 | FLATWASHER | 9 | |
| 40 | 55-7350 | SCREW - plate | 1 | |
| 41 | 108-1795 | WASHER - special | 3 | |
| 42 | 108-1796 | ARM - complete | 1 | |
| 43 | 108-1797 | ARM | 1 | |
| 44 | 108-1798 | SILENTBLOCK | 1 | |
| 45 | 108-1799 | SCREW - arm to plate | 1 | |
| 46 | 51-152 | FLATWASHER | 4 | |
| 47 | 108-1743 | NUT | 1 | |
| 48 | 108-1800 | PULLEY | 1 | |
| 49 | 108-1801 | RING - pulley | 1 | |
| 50 | 55-6279 | SCREW - ring to pulley | 6 | |
| 51 | 55-8536 | FLATWASHER | 6 | |
| 52 | 108-1802 | BRACKET - tube | 1 | |
| 53 | 55-3400 | CLAMP - tube (0.75 to 1.125 dia) | 2 | |
| 54 | 55-3401 | CLAMP - tube (1.00 to 1.50 dia) | 1 | |
| 55 | 108-1803 | BELT | 1 | |
| 56 | 108-1804 | BELT | 1 |
