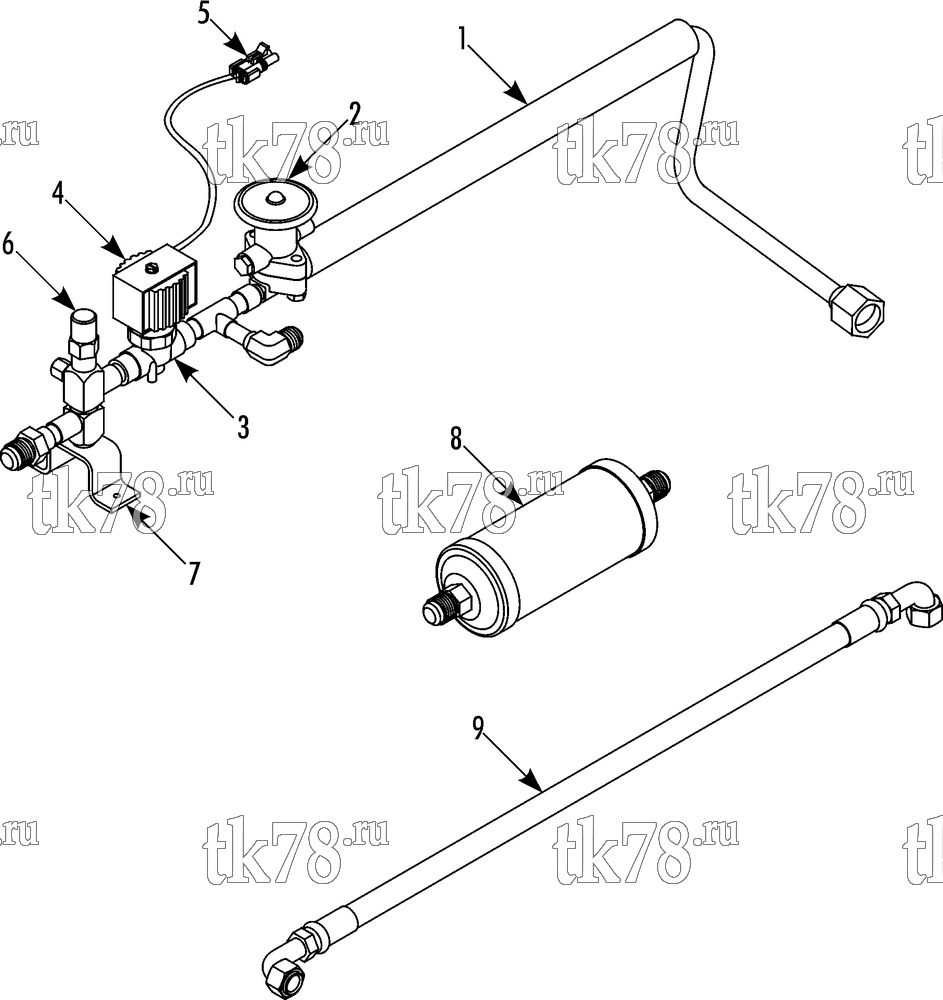

Установкa Thermo King Bus Accessories & Options схема LIQUID LINE KIT – 258H2
Обновление от: 3/19/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2658 | TUBE - liquid line | 1 | |
| 2 | 61-5995 | VALVE - expansion | 1 | |
| 3 | 61-5993 | VALVE - solenoid | 1 | |
| 4 | NSS | SOLENOID | 1 | |
| 5 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 2 | ||
| 44-5839 | TERMINAL - female (16-14 ga) | 2 | ||
| 6 | 306-661 | VALVE - shutoff | 1 | |
| 7 | 92-9736 | BRACKET | 1 | |
| 55-3502 | SCREW - bracket | 1 | ||
| 55-371 | FLATWASHER | 1 | ||
| 55-790 | LOCKWASHER | 1 | ||
| 8 | 66-1723 | DEHYDRATOR | 1 | |
| 9 | 61-5618 | HOSE (#10) | 1 |
