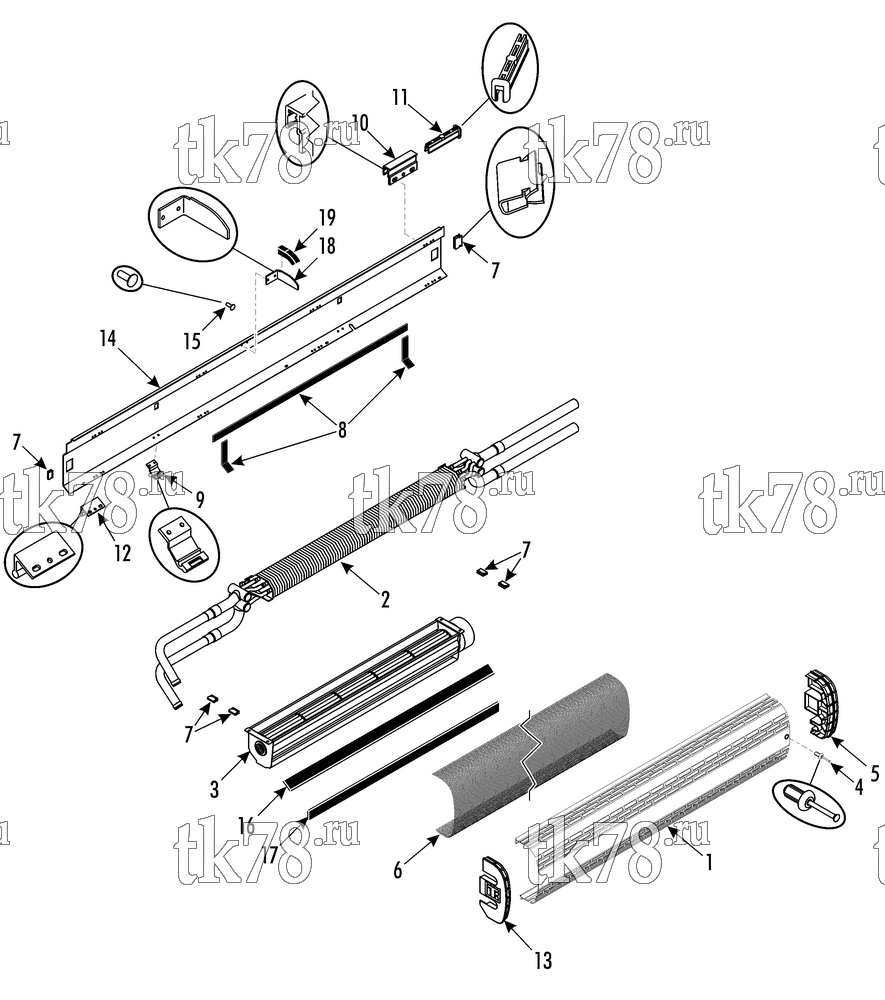

Установкa Thermo King Bus Accessories & Options схема CONVECTOR (1E55970G01 & 1E55970G02) – 251D1
Обновление от: 5/25/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| NSS | CONVECTOR - FACTKV 800 | 1 | ||
| 1 | 92-8083 | COVER (4 ft lg) | A/R | |
| 2 | NSS | COIL - heater | 1 | |
| 3 | 78-1781 | BLOWER | 1 | |
| 44-9569 | CONNECTOR - shroud (3-pin, see 115D14 for connectors) | 1 | ||
| 4 | 51-2108 | RIVET - plastic | 3 | |
| 5 | 92-3431 | UNION (left) | 1 | |
| 6 | 92-8965 | SCREEN (47 inches long) | 1 | |
| 7 | 51-262 | CLAMP | 6 | |
| 8 | 33-3812 | STRIP (neoprene) | A/R | |
| 9 | 51-294 | CLAMP - slider | 2 | |
| 10 | 92-2650 | BRACKET - top | 4 | |
| 11 | 92-2647 | SLIDER | 4 | |
| 12 | 92-2649 | BRACKET - bottom | 4 | |
| 13 | 92-3056 | CAP - end piece (left) | 1 | |
| 14 | 92-8969 | BRACKET - wall | 1 | |
| 15 | 55-2988 | RIVET - steel | 2 | |
| 16 | 92-3185 | STRIP - neoprene | A/R | |
| 17 | 99-7336 | STRIP - neoprene | A/R | |
| 18 | 92-4105 | STIFFENER | 1 | |
| 19 | 92-3279 | EXTRUSION (rubber) | A/R |
