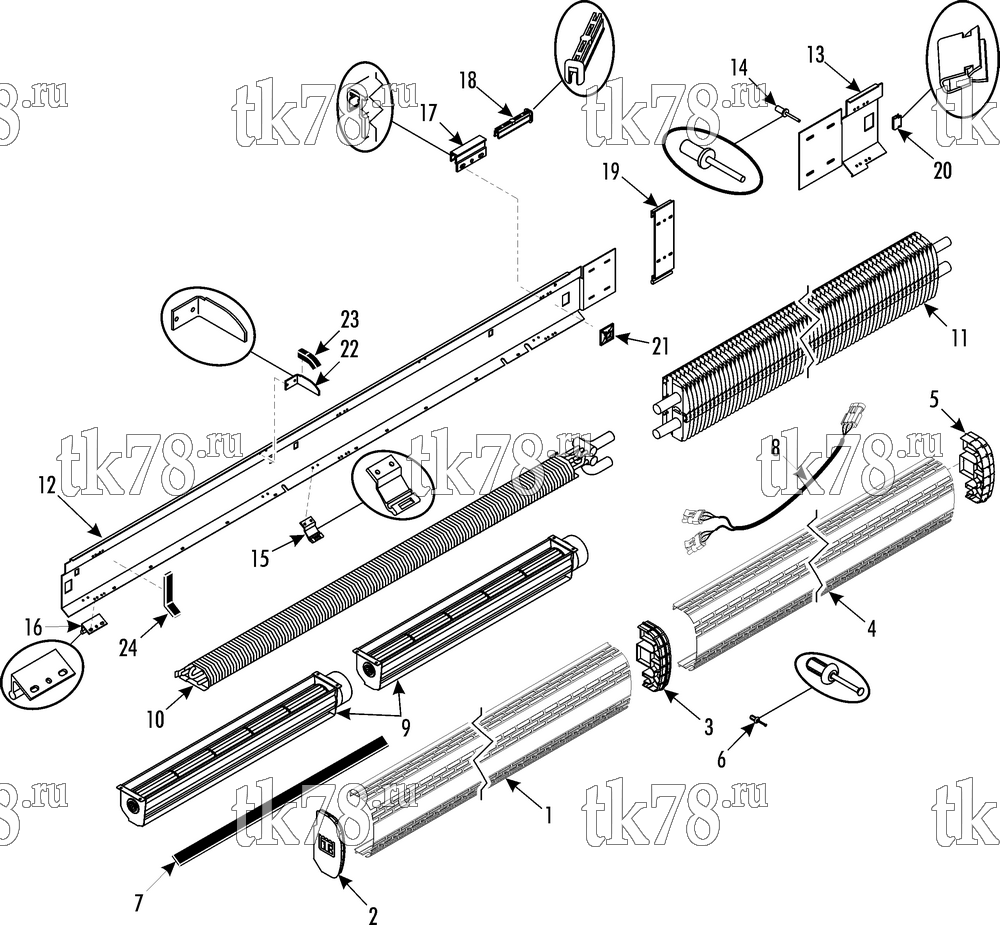

Установкa Thermo King Bus Accessories & Options схема CONVECTOR (1E56269G01) – 251C9
Обновление от: 5/18/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| NSS | CONVECTOR - FAC/TKV (curbside front) | 1 | ||
| 1 | 92-8084 | COVER (8 ft lg) | A/R | |
| 2 | 92-3056 | CAP - end | 1 | |
| 3 | 92-3431 | UNION - middle | 1 | |
| 4 | 92-8084 | COVER (8 ft lg) | A/R | |
| 5 | 92-3430 | UNION - end | 1 | |
| 6 | 51-2108 | RIVET - plastic | 3 | |
| 7 | 92-3185 | STRIP - neoprene | A/R | |
| 8 | 41-9163 | HARNESS - blower (for connectors see 115D14) | 1 | |
| 44-6959 | CONNECTOR - tower (3-pin) | 2 | ||
| 44-9569 | CONNECTOR - shroud (3-pin) | 1 | ||
| 9 | 78-1781 | BLOWER | 2 | |
| 44-9569 | CONNECTOR - shroud (3-pin see 115D14 for connectors) | 2 | ||
| 10 | NSS | COIL - heater | 1 | |
| 11 | NSS | COIL - heater | 1 | |
| 12 | 92-8962 | BRACKET - back wall | 1 | |
| 13 | 92-8960 | BRACKET - back wall | 1 | |
| 14 | 55-1714 | RIVET | A/R | |
| 15 | 51-294 | CLAMP - slider | 4 | |
| 16 | 92-2649 | BRACKET - bottom | 3 | |
| 17 | 92-2650 | BRACKET - top | 6 | |
| 18 | 92-2647 | SLIDER | 6 | |
| 19 | 92-2651 | BRACKET | 2 | |
| 20 | 51-262 | CLAMP | 11 | |
| 21 | 92-3785 | MOUNT - cable tie | 1 | |
| 22 | 92-8963 | STIFFENER | 2 | |
| 23 | 92-3279 | EXTRUSION (rubber) | A/R | |
| 24 | 99-7336 | STRIP | A/R |
