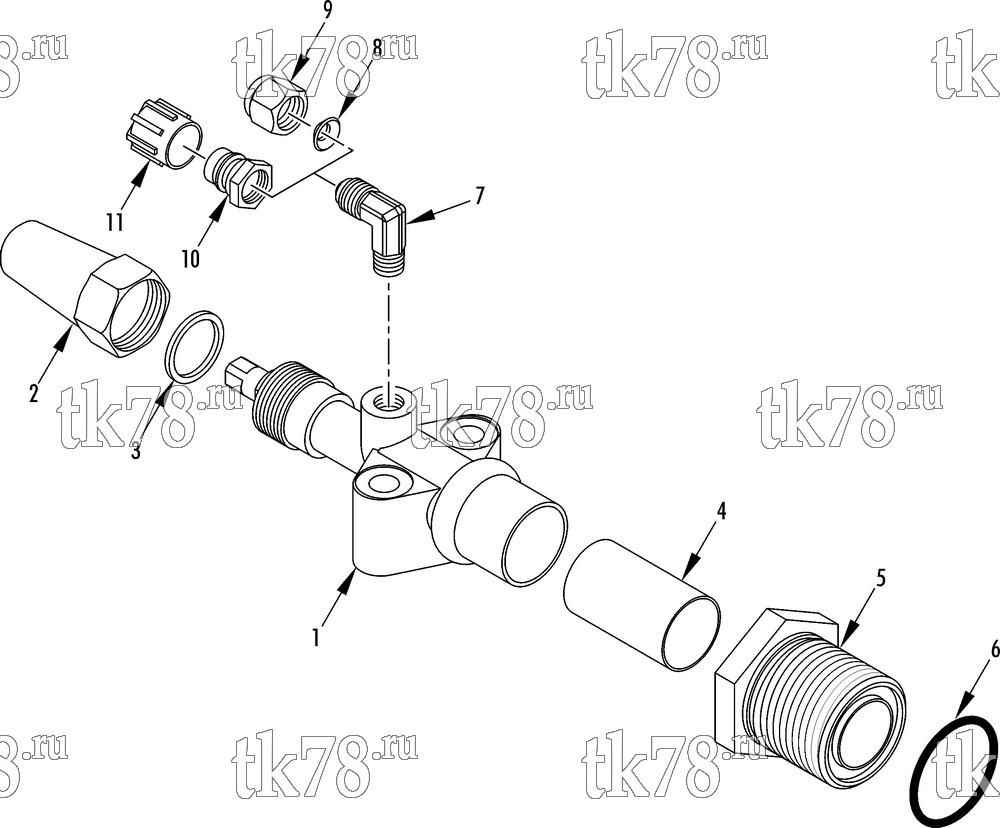

Установкa Thermo King Bus Accessories & Options схема VALVE ASSEMBLY - DISCHARGE – 242F3
Обновление от: 10/31/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 61-5072 | VALVE - discharge | 1 | ||
| 1 | 66-2140 | VALVE - discharge | 1 | |
| 2 | 66-3015 | CAP - valve (brass, incl gasket) | 1 | |
|
10-66-3015 | Крышка сервисного клапана, латунь, X426/430/640 | 3 000 ₽ |
|
| P-17-10806-10 | Крышка сервисного клапана, латунь, 05K/05G/06D | 3 000 ₽ |
|
|
| 3 | 33-350 | GASKET - cap | 1 | |
| 4 | 61-5073 | TUBE | 1 | |
| 5 | 55-7537 | ADAPTER (#20 ORS) | 1 | |
| 6 | 33-1777 | O-RING | 1 | |
| 7 | 55-308 | ELBOW | 1 | |
| 8 | 33-768 | GASKET - cap | 1 | |
| 9 | 55-1983 | CAP - elbow | 1 | |
| 10 | 66-8086 | FITTING - refrigerant (R134a) | 1 | |
| 11 | 66-7182 | CAP - fitting (R134a) | 1 |
