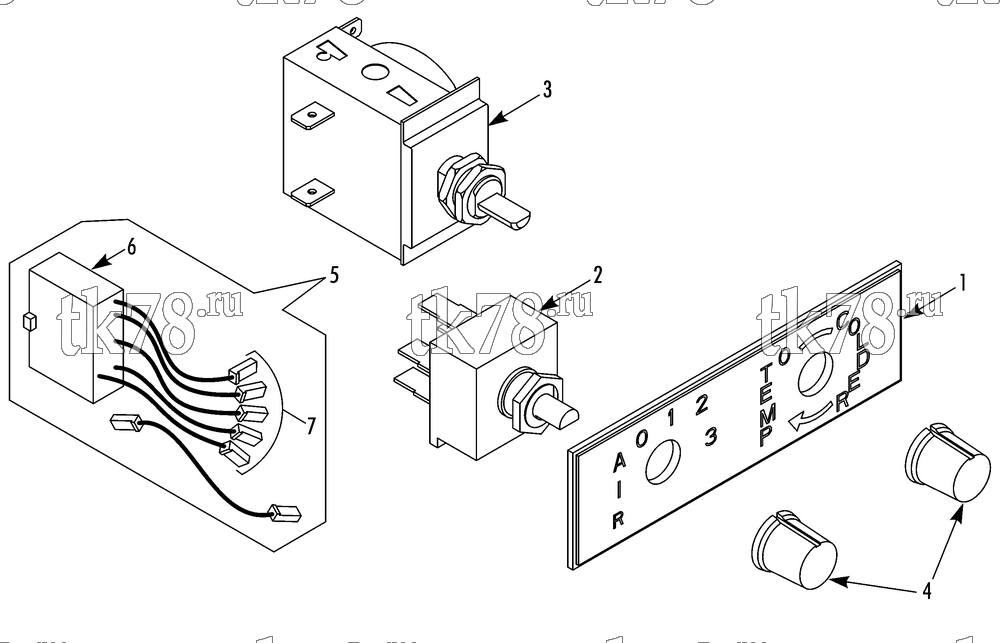

Установкa Thermo King Bus Accessories & Options схема TEMPERATURE CONTROL KIT – 242E0
Обновление от: 9/9/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-8256 | PLATE - switch | 1 | |
| 2 | 41-3229 | SWITCH - 3 speed | 1 | |
| 3 | 41-9321 | SWITCH - thermostatic | 1 | |
| 4 | 41-3227 | KNOB | 2 | |
| 5 | 41-9322 | HARNESS | 1 | |
| 6 | 41-6160 | CONNECTOR (14-pin) | 1 | |
| 651-148 | TERMINAL - pin (18-24 ga) | 5 | ||
| 7 | 44-6381 | CONNECTOR - female | 7 | |
| 44-5066 | TERMINAL - fingrip (14-18 ga) | 7 |
