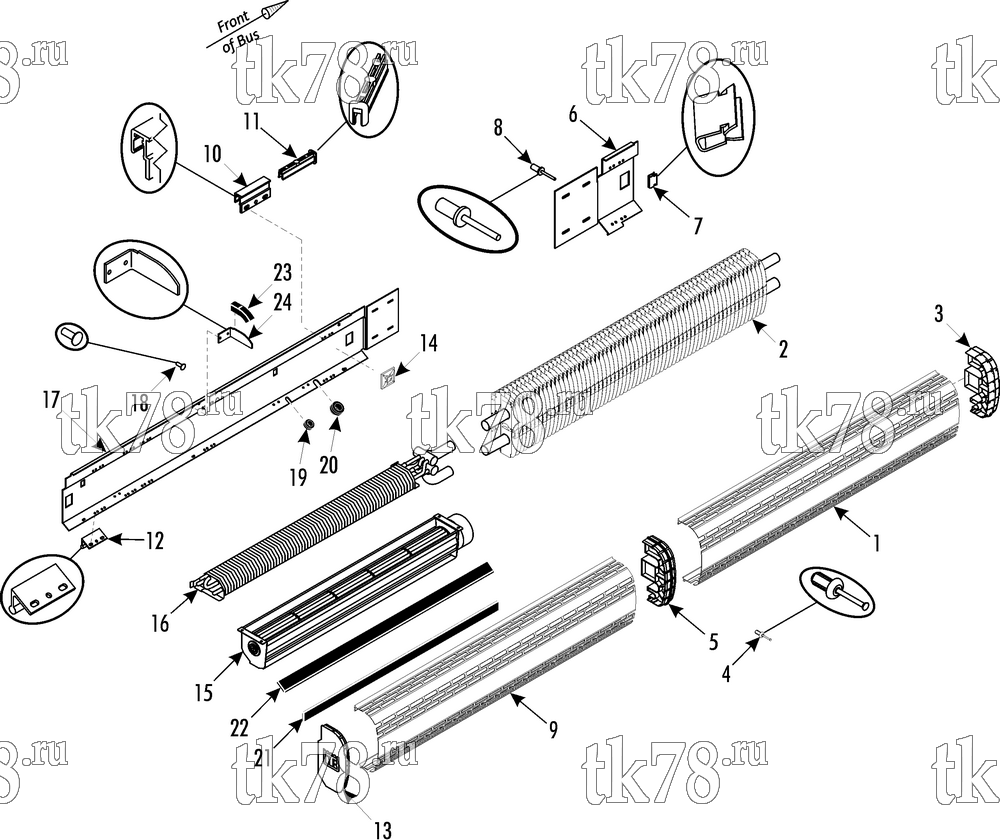

Установкa Thermo King Bus Accessories & Options схема CONVECTOR (1E45809G01) – 240D7
Обновление от: 9/9/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| NSS | CONVECTOR - FACTKV (roadside center) | 1 | ||
| 1 | 92-8083 | COVER (4 ft lg) | A/R | |
| 2 | NSS | COIL - heater | 1 | |
| 3 | 92-3430 | UNION (right) | 1 | |
| 4 | 51-773 | RIVET - plastic | 3 | |
| 5 | 92-3431 | UNION (left) | 1 | |
| 6 | 92-8085 | BRACKET - wall end | 1 | |
| 7 | 51-262 | CLAMP | 7 | |
| 8 | 51-1227 | RIVET - steel | 36 | |
| 9 | 92-8083 | COVER (4 ft lg) | A/R | |
| 10 | 92-2650 | BRACKET - top | 4 | |
| 11 | 92-2647 | SLIDER | 4 | |
| 12 | 92-2649 | BRACKET - bottom | 4 | |
| 13 | 92-3056 | CAP - end piece (left) | 1 | |
| 14 | 92-5033 | MOUNT - bandwrap | 1 | |
| 55-2330 | BANDWRAP | 1 | ||
| 15 | 78-1399 | BLOWER | 1 | |
| 16 | NSS | HEATER - coil | 1 | |
| 44-9569 | CONNECTOR - shroud (3-pin, see 115D14 for connectors) | 1 | ||
| 17 | 92-8087 | BRACKET - wall | 1 | |
| 18 | 55-5130 | RIVET - steel | 2 | |
| 19 | 33-2212 | GROMMET (3/16 id) | 1 | |
| 20 | 33-282 | GROMMET (3/8 id) | 1 | |
| 21 | 99-7336 | STRIP - neoprene | A/R | |
| 22 | 92-3185 | STRIP - neoprene | A/R | |
| 23 | 92-3279 | EXTRUSION (rubber) | A/R | |
| 24 | 92-4105 | STIFFENER | 1 |
