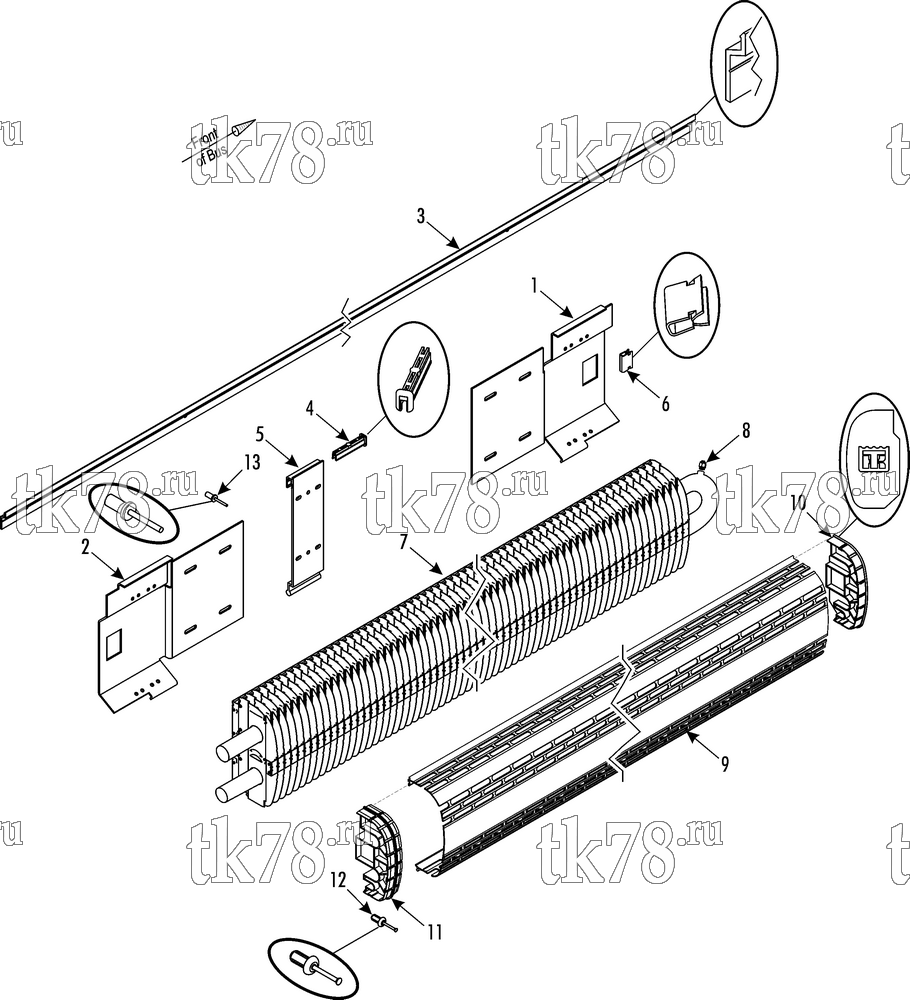

Установкa Thermo King Bus Accessories & Options схема CONVECTOR (1E45810G01) – 240D6
Обновление от: 9/9/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| NSS | CONVECTOR - TKV 800 (roadside front) | 1 | ||
| 1 | 92-8085 | BRACKET - wall right | 1 | |
| 2 | 92-8086 | BRACKET - wall left | 1 | |
| 3 | 92-7767 | BRACKET - fasting profile (4ft lg piece) | A/R | |
| 4 | 92-2647 | SLIDER | 6 | |
| 5 | 92-2651 | BRACKET | 6 | |
| 6 | 51-262 | CLAMP | 2 | |
| 7 | NSS | COIL - heater | 1 | |
| 8 | 61-1099 | VALVE - deaerate | 1 | |
| 9 | 92-8084 | COVER (8 ft lg) | A/R | |
| 10 | 92-3057 | CAP - end piece (roadside front) | 1 | |
| 11 | 92-3431 | UNION (roadside, center) | 1 | |
| 12 | 51-773 | RIVET - plastic | 2 | |
| 13 | 51-1227 | RIVET - steel | 38 |
