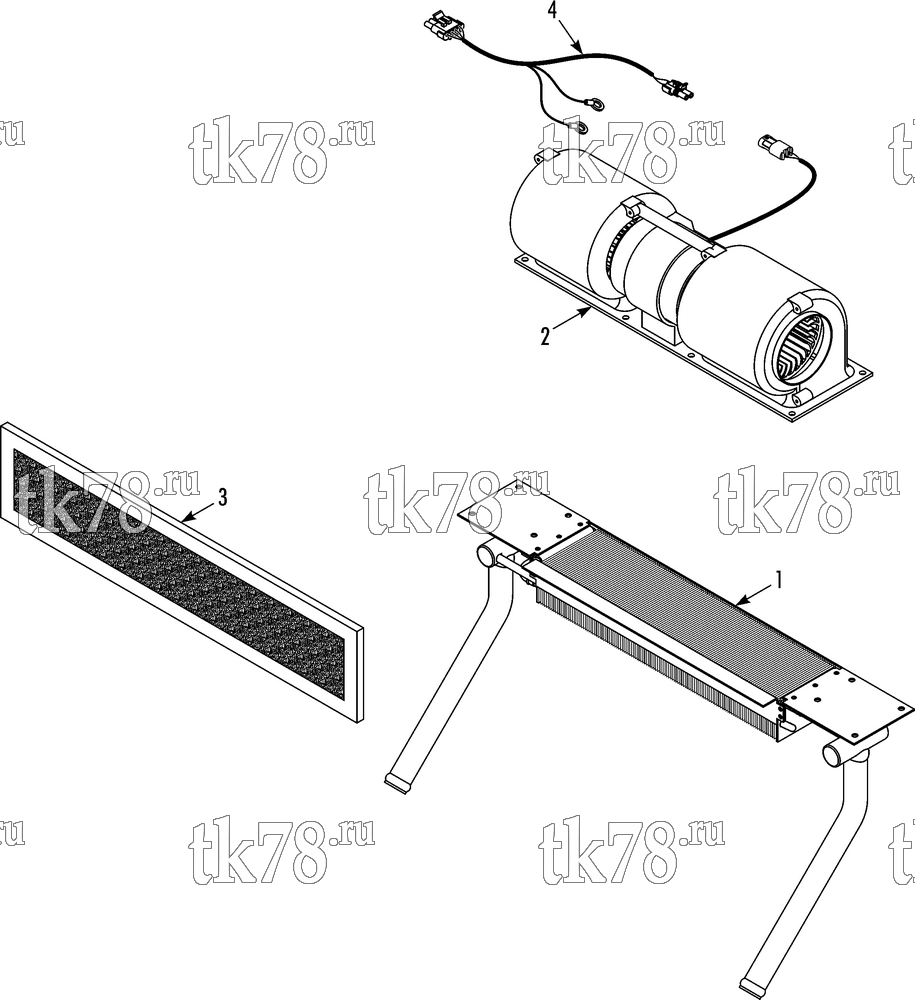

Установкa Thermo King Bus Accessories & Options схема WALL HEATER – 233F9
Обновление от: 7/10/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2412 | COIL - heater | 1 | |
| 2 | 78-1549 | BLOWER - assembly (24v) | 1 | |
| 44-5835 | CONNECTOR - shroud (2-pin, see 115D14) | 1 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 2 | ||
| 3 | 92-7368 | FILTER (with frame) | 2 | |
| 4 | 41-8570 | HARNESS - blower motor | 1 | |
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-7881 | CONNECTOR - tower (4-pin) | 1 | ||
| 55-2330 | BANDWRAP | 2 | ||
| 44-7812 | PLUG - cavity (green) | 1 | ||
| 44-2792 | TERMINAL - ring (yellow, #10) | 1 | ||
| 44-2791 | TERMINAL - ring (blue #10, 14-16 ga) | 1 | ||
| 55-3020 | SCREW | 2 | ||
| 55-396 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2965 | NUT | 2 |
