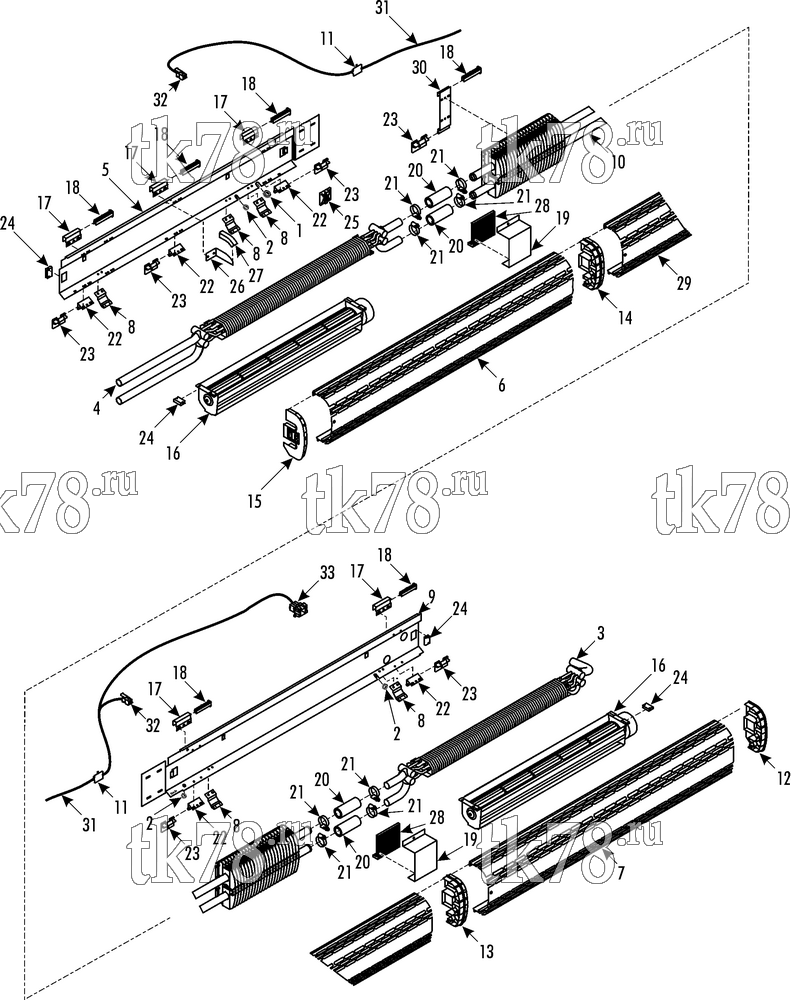

Установкa Thermo King Bus Accessories & Options схема CONVECTOR KIT (720155) – 203F2
Обновление от: 5/16/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-282 | GROMMET | 1 | |
| 2 | 33-2212 | GROMMET | 3 | |
| 3 | 67-2149 | COIL - heater | 1 | |
| 4 | 67-2151 | COIL - heater | 1 | |
| 5 | 98-7240 | COVER - back | 1 | |
| 55-5130 | RIVET - cover | 2 | ||
| 51-1227 | RIVET - cover | 4 | ||
| 6 | NSS | COVER - convector | 1 | |
| 51-773 | RIVET - plastic | 1 | ||
| 7 | NSS | COVER - convector | 1 | |
| 51-773 | RIVET - plastic | 1 | ||
| 8 | 51-294 | CLAMP - slider | 5 | |
| 51-1227 | RIVET - clamp | 10 | ||
| 9 | 98-7241 | COVER - back | 1 | |
| 55-5130 | RIVET - cover | 2 | ||
| 51-1227 | RIVET - cover | 4 | ||
| 10 | NSS | CONVECTOR - coil | 1 | |
| 11 | 92-5031 | CLAMP - harness | 4 | |
| 51-1228 | BANDWRAP | 4 | ||
| 12 | 92-3057 | COVER - end (front) | 1 | |
| 13 | 92-3430 | COVER - middle | 1 | |
| 14 | 92-3431 | COVER - middle | 1 | |
| 15 | 92-3432 | COVER - end (back) | 1 | |
| 16 | 78-1399 | BLOWER | 2 | |
| 17 | 92-2650 | BRACKET - top | 5 | |
| 51-1227 | RIVET - bracket | 10 | ||
| 18 | 92-2647 | SLIDER - top | 8 | |
| 19 | 92-2642 | COVER | 2 | |
| 55-9876 | SCREW - cover | 2 | ||
| 55-8310 | LOCKWASHER | 2 | ||
| 51-296 | NUT - captive | 2 | ||
| 20 | 92-5032 | HOSE | A/R | |
| 21 | 51-1229 | CLAMP - hose | 8 | |
| 22 | 92-2649 | BRACKET - bottom | 5 | |
| 51-1227 | RIVET - bracket | 10 | ||
| 23 | 92-2648 | SLIDER - bottom | 8 | |
| 24 | 51-262 | CLAMP | 12 | |
| 25 | 92-5033 | MOUNT - cable tie | 1 | |
| 55-2330 | BANDWRAP | 1 | ||
| 26 | 92-4105 | STIFFENER | 1 | |
| 51-1227 | RIVET - stiffener | 2 | ||
| 27 | 91-7754 | EXTRUSION - rubber | 1 | |
| 28 | 91-9862 | INSULATION | 2 | |
| 29 | NSS | COVER - convector | 1 | |
| 30 | 92-2651 | BRACKET | 3 | |
| 31 | 41-6810 | HARNESS | 1 | |
| 32 | 41-2769 | CONNECTOR (4-pin, female) | 2 | |
| 33 | 41-4949 | CONNECTOR (4-pin, male) | 1 |
