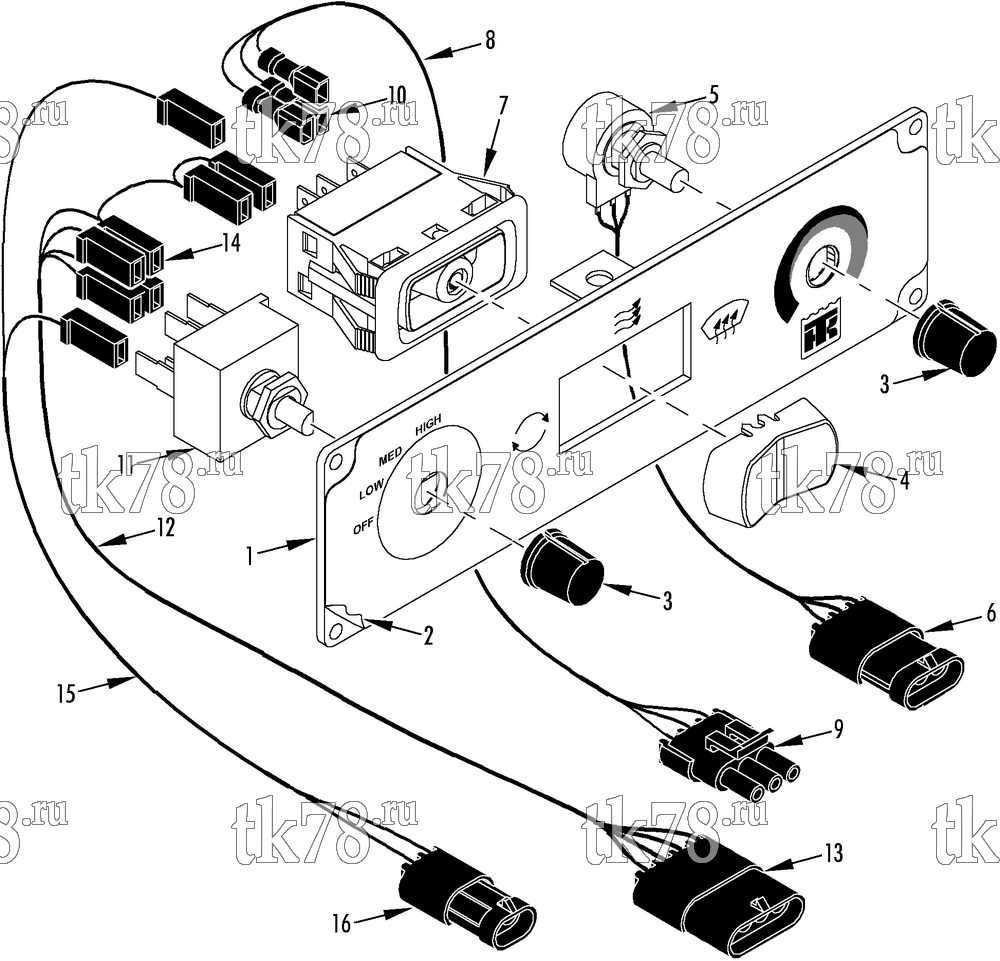

Установкa Thermo King Bus A/C & Heating Components схема CONTROL PANEL F3500S & F3500C (F35S & F35C, 718697) – 176H3
Обновление от: 9/26/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-2018 | PANEL - control | 1 | ||
| 1 | 92-2206 | PLATE - control panel | 1 | |
| 2 | 92-2207 | NAMEPLATE - control panel | 1 | |
| 3 | 41-3227 | KNOB | 2 | |
| 4 | 41-4847 | ROCKER - switch | 1 | |
| 5 | 41-3228 | POTENTIOMETER - temperature | 1 | |
| 55-2134 | LOCKWASHER (potentiometer) | 1 | ||
| 6 | 44-9569 | CONNECTOR - shroud (3-pin) | 1 | |
| 7 | 41-4846 | SWITCH - rocker (3-way) | 1 | |
| 8 | 41-3232 | HARNESS | 1 | |
| 9 | 44-6959 | CONNECTOR - tower (3-pin) | 1 | |
| 10 | 41-4851 | TERMINAL - switch | 3 | |
| 11 | 41-3229 | SWITCH - blower speed | 1 | |
| 55-2134 | LOCKWASHER - switch | 1 | ||
| 12 | 41-4848 | HARNESS - assembly | 1 | |
| 13 | 44-7880 | CONNECTOR - shroud (4-pin) | 1 | |
| 14 | 44-6381 | CONNECTOR - electric (1-pin, female) | 6 | |
| 44-5066 | TERMINAL - fingrip (18-14 ga) | 6 | ||
| 15 | 41-4849 | HARNESS - power | 1 | |
| 16 | 44-5835 | CONNECTOR - shroud (2 terminal) | 1 |
