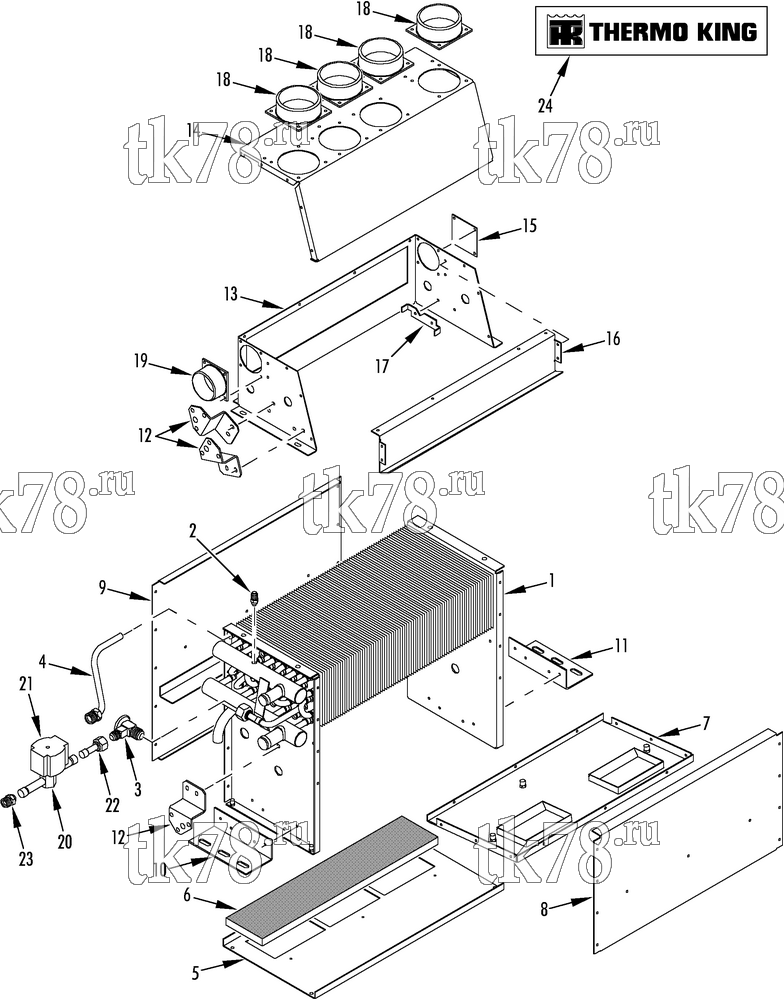

Установкa Thermo King Bus A/C & Heating Components схема FRONT BOX F35 (R134a) – 176G0
Обновление от: 9/25/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1838 | COIL - evaporator | 1 | |
| 2 | 61-1621 | ADAPTER - water | 1 | |
| 3 | 61-1622 | VALVE - expansion | 1 | |
| 4 | 61-1627 | ADAPTER - suction | 1 | |
| 5 | 92-2194 | PLATE - filter | 1 | |
| 6 | 11-9590 | FILTER - air | 1 | |
| 55-7340 | SCREW - plate | 4 | ||
| 55-4665 | FLATWASHER | 4 | ||
| 7 | 92-2186 | SUPPORT - blower | 1 | |
| 8 | 92-2195 | COVER | 1 | |
| 9 | 92-2193 | COVER | 1 | |
| 10 | 92-2197 | BRACKET | 1 | |
| 11 | 92-2196 | BRACKET | 1 | |
| 55-5130 | RIVET - covers & brackets | A/R | ||
| 12 | 92-2192 | BRACKET | 3 | |
| 51-129 | SCREW - bracket | 6 | ||
| 55-8309 | FLATWASHER | 6 | ||
| 55-2202 | LOCKWASHER | 6 | ||
| 55-7866 | NUT - captive | 4 | ||
| 13 | 92-2188 | PLATE - front | 1 | |
| 55-7340 | SCREW - funnel | 4 | ||
| 51-130 | LOCKWASHER | 4 | ||
| 14 | 92-2187 | FUNNEL | 1 | |
| 15 | 92-2190 | PLUG | 1 | |
| 16 | 92-2189 | FLAP - damper | 1 | |
| 55-5130 | RIVET - funnel, plug & flap | A/R | ||
| 17 | 92-2191 | INSERT - damper | 1 | |
| 18 | 92-3790 | OUTLET - air (75 mm od) | 4 | |
| 19 | 92-172 | OUTLET - air (55 mm od) | 1 | |
| 20 | 66-8900 | VALVE - solenoid | 1 | |
| 21 | 66-8901 | COIL - valve | 1 | |
| 22 | 61-1624 | TUBE | 1 | |
| 55-373 | NUT - flare | 1 | ||
| 23 | 61-1625 | ADAPTER (5/8-18) | 1 | |
| 24 | 91-9638 | NAMEPLATE - TK | 1 |
