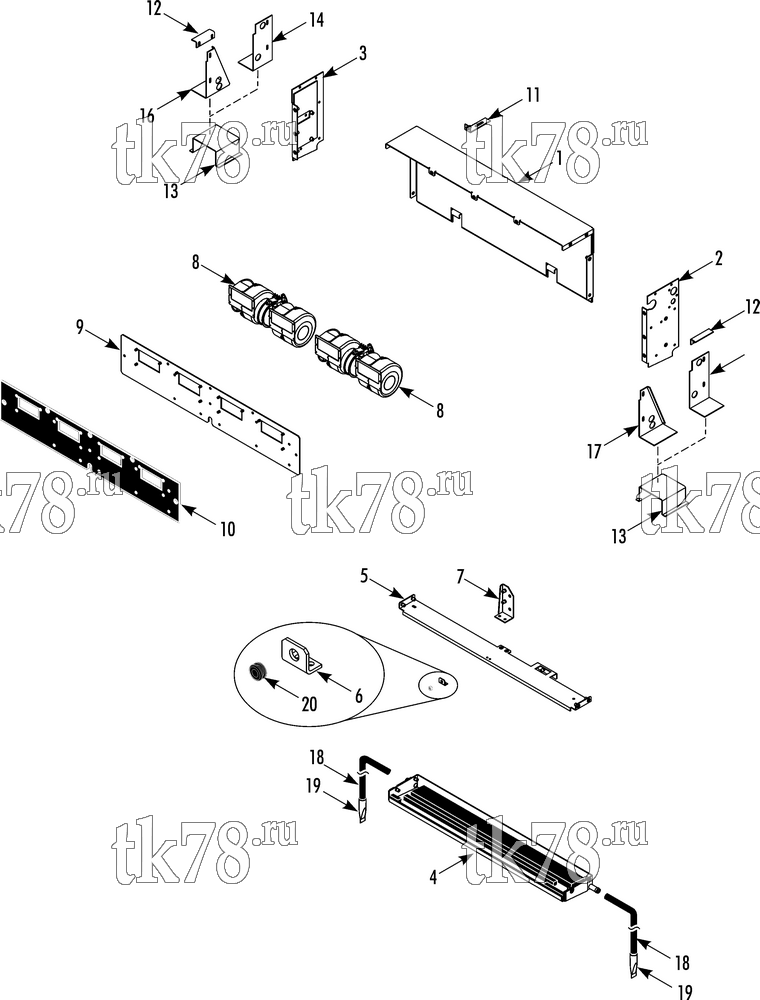

Установкa Thermo King BE-550 схема EVAPORATOR STRUCTUAL & BLOWERS w/ RIGHTSIDE CONNECTIONS – 268D4
Обновление от: 4/8/13
| № | TK # | Описание | Кол-во Цена |
|---|---|---|---|
| 1 | 93-778 | FRAME - evaporator | 1 |
| 55-9084 | INSERT | 9 | |
| 2 | 93-779 | PANEL - right side | 1 |
| 3 | 93-781 | PANEL - left side | 1 |
| 55-9084 | INSERT | 5 | |
| 4 | 93-782 | PAN - drain | 1 |
| 5 | 93-783 | BRACKET - evaporator top | 1 |
| 51-2200 | SCREW | 2 | |
| 6 | 93-784 | BRACKET | 1 |
| 55-3136 | RIVET | 2 | |
| 7 | 93-777 | BRACKET | 1 |
| 51-2200 | SCREW | 4 | |
| 55-9694 | SCREW | 2 | |
| 8 | 78-1537 | BLOWER - evaporator (12V) | 2 |
| 55-9694 | SCREW - blower | 12 | |
| 9 | 93-785 | PANEL - blower | 1 |
| 10 | 33-5104 | INSULATION - panel | 1 |
| 11 | 93-897 | BRACKET - top, cover (703654 & 703657) | 1 |
| 12 | 93-898 | BRACKET - roof (703654, front) | 2 |
| 93-899 | BRACKET - roof (703657, rear) | 2 | |
| 13 | 93-905 | BRACKET - front (703654, horizontal) | 2 |
| 93-906 | BRACKET - rear (703657, horizontal) | 2 | |
| 14 | 93-903 | BRACKET - front (703654, left side) | 1 |
| 15 | 93-904 | BRACKET - front (703654, right side) | 1 |
| 16 | 93-901 | BRACKET - rear (703657, left side) | 1 |
| 17 | 93-902 | BRACKET - rear (703657, right side) | 1 |
| 18 | 61-5463 | HOSE - drain | 2 |
| 19 | 66-1273 | VALVE - drain | 2 |
| 20 | 83-258 | GROMMET (.25 id) | 1 |
| 21 | 33-2110 | GROMMET (1.0 id) | 1 |
