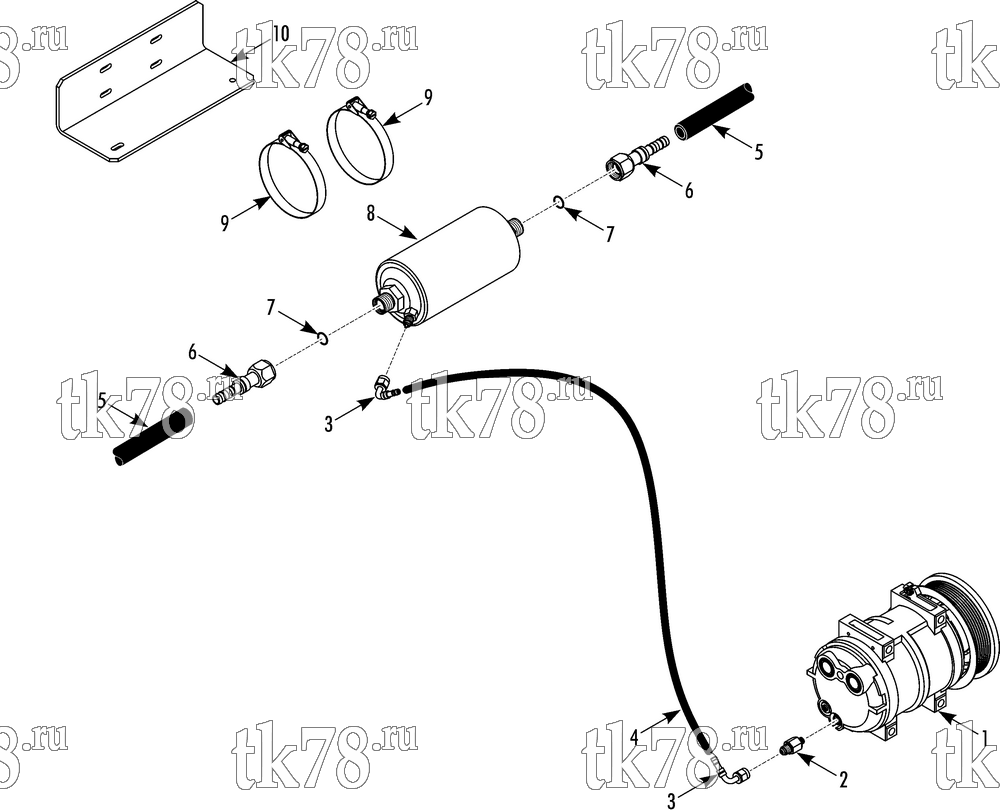

Установкa Thermo King BE-550 схема OIL SEPARATOR w/ HOSE KIT (703322, 703323 & 703486) – 268C8
Обновление от: 5/4/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COMPRESSOR - 16HD (see 133F14) | 1 | |
| NSS | COMPRESSOR - 21HD (see 268C7) | 1 | ||
| 2 | 66-7041 | FITTING-ADPT SEPARATOR-OIL | 1 | |
| 3 | 51-2417 | FITTING - 90 deg (1/4 flare, #4 hose) | 2 | |
| 4 | 67-1782 | HOSE (#4, 300 ft) | A/R | |
| 5 | 61-637 | HOSE (#10, 50 ft) | A/R | |
| 67-1710 | HOSE (#10, 300 ft) | A/R | ||
| 6 | 51-2443 | FITTING - straight (tube-O, #10 hose x #10 fitting) | 2 | |
| 7 | 33-2848 | O-RING (9/16 id) | 2 | |
| 8 | 61-599 | SEPARATOR - oil | 1 | |
| 9 | 55-7800 | CLAMP - separator | 2 | |
| 10 | 92-1425 | BRACKET - separator | 1 |
