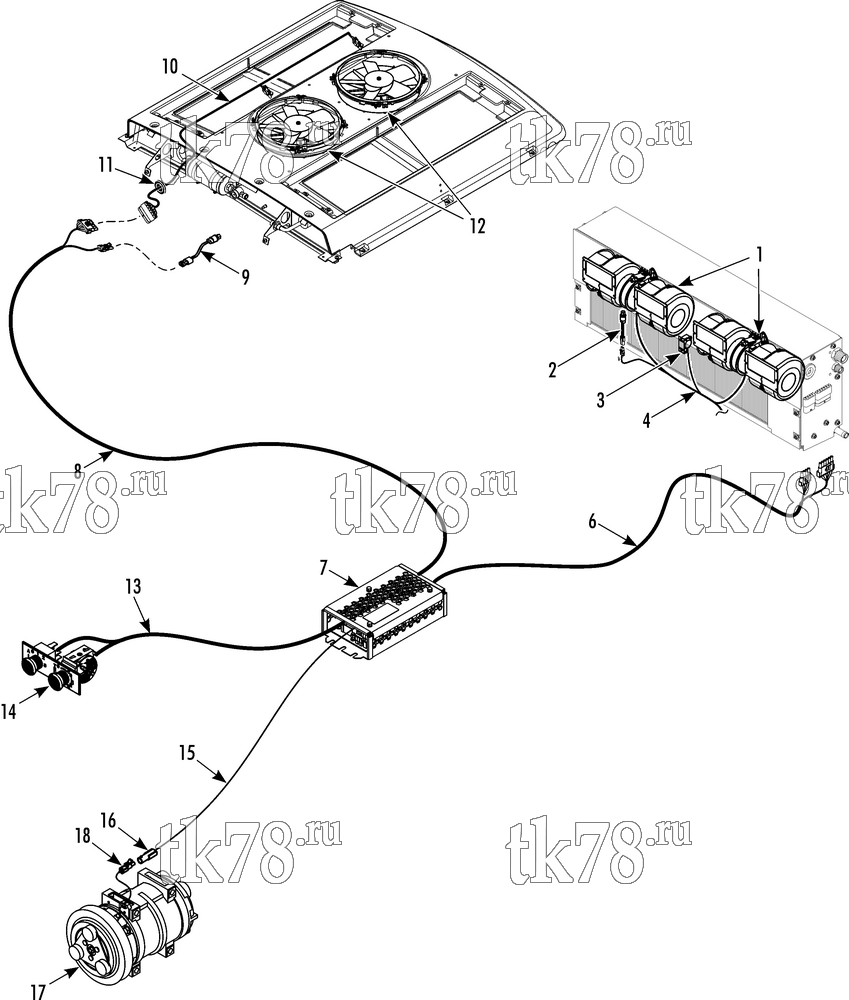

Установкa Thermo King BE-550 схема ELECTRICAL COMPONENTS w/ ROOFTOP CONDENSER – 268C0
Обновление от: 4/8/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1537 | BLOWER (12V, see 258E0) | 2 | |
| 2 | 41-9634 | SWITCH - lpco | 1 | |
| 3 | 41-6844 | THERMOSTAT - freeze | 1 | |
| 4 | 42-981 | HARNESS - evaporator | 1 | |
| 44-7880 | CONNECTOR - shroud (4-pin) | 1 | ||
| 44-8294 | CONNECTOR - shroud (6-pin) | 1 | ||
| 44-5883 | TERMINAL - male (20-18 ga) | 2 | ||
| 44-5836 | TERMINAL - male (16-14 ga) | 4 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 8 | ||
| 5 | 33-2110 | GROMMET (1.0 id) | 1 | |
| 6 | 42-982 | HARNESS - evaporator to control panel (4M) | 1 | |
| 42-983 | HARNESS - evaporator to control panel (11M) | 1 | ||
| 7 | NSS | CONTROL PANEL (258F6) | 1 | |
| 8 | 42-413 | HARNESS - condenser (11M) | 1 | |
| 42-414 | HARNESS - condenser (15M) | 1 | ||
| 41-5244 | TERMINAL - fingrip (10-12 ga) | 5 | ||
| 42-424 | TERMINAL - fingrip (22-18 ga) | 2 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-5884 | TERMINAL - female (20-18 ga) | 2 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 2 | ||
| 44-7872 | CONNECTOR - tower (6-pin) | 1 | ||
| 44-5839 | TERMINAL - female (16-14 ga) | 2 | ||
| 41-8207 | TERMINAL - female (12 ga) | 4 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 6 | ||
| 9 | 42-409 | SWITCH - hpco (see 115D14 for connectors) | 1 | |
| 41-5070 | SWITCH - hpco | 1 | ||
| 10 | 42-416 | HARNESS - condenser fans | 1 | |
| 44-8294 | CONNECTOR - shroud (6-pin) | 1 | ||
| 44-5835 | CONNECTOR - shroud (2-pin) | 1 | ||
| 44-5836 | TERMINAL - male (16-14 ga) | 2 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 2 | ||
| 41-9729 | CONNECTOR (2 pin, black) | 2 | ||
| 41-6493 | LOCK - connector | 2 | ||
| 41-9730 | TERMINAL - female (14 ga) | 4 | ||
| 11 | 33-2110 | GROMMET (1.0 id) | 1 | |
| 12 | 78-1392 | FAN (12V, see 258E8) | 2 | |
| 13 | 42-419 | HARNESS - driver panel (4M) | 1 | |
| 42-418 | HARNESS - driver panel (10M) | 1 | ||
| 42-420 | HARNESS - driver panel (14M) | 1 | ||
| 41-3855 | CONNECTOR - female (10-pin) | 1 | ||
| 41-4247 | RECEPTACLE - female (18 ga) | 7 | ||
| 41-4248 | RECEPTACLE - female (16-14 ga) | 2 | ||
| 42-424 | TERMINAL - fingrip (22-18 ga) | 9 | ||
| 14 | NSS | TEMPERATURE - control (see 249E7) | 1 | |
| 15 | 41-5077 | HARNESS - control panel to compressor (10M) | 1 | |
| 41-8198 | HARNESS - control panel to compressor (18M) | 1 | ||
| 16 | 44-7330 | CONNECTOR - shroud (1-pin, see 115D14) | 1 | |
| 17 | NSS | COMPRESSOR (see 258G2) | 1 | |
| 18 | 44-7327 | CONNECTOR - tower (1-pin, see 115D14) | 1 | |
| 44-5839 | TERMINAL - female (16-14 ga) | 1 | ||
| 44-8681 | SEAL - cable (red) | 1 |
