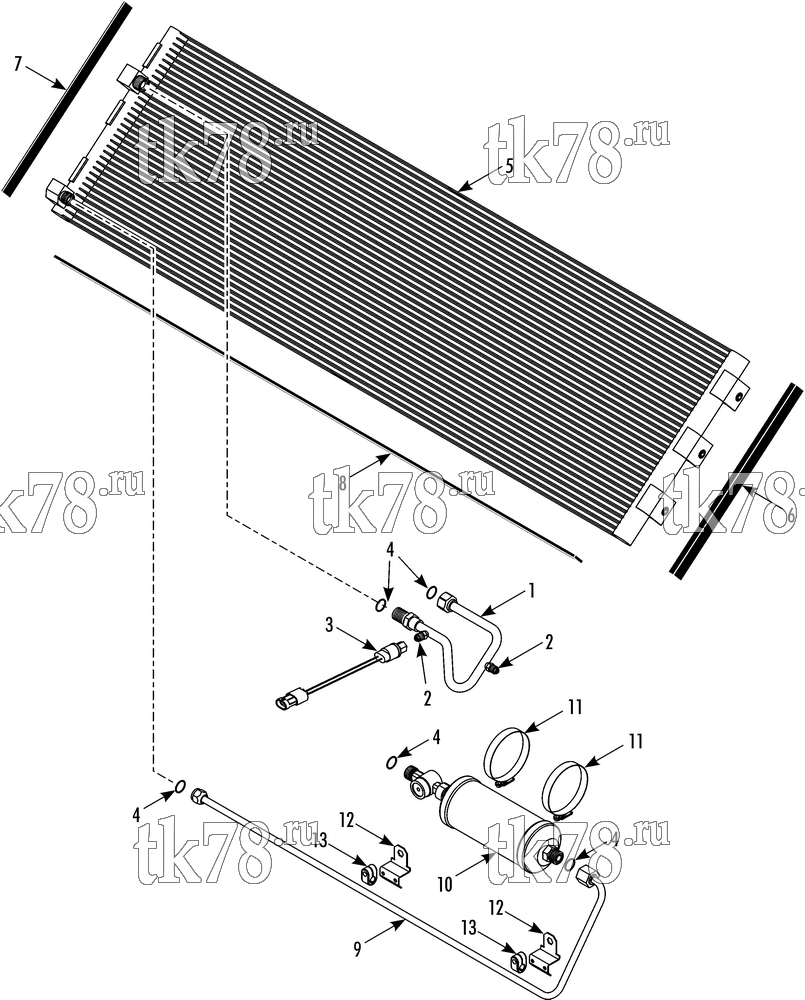

Установкa Thermo King BE-550 схема REFRIGERATION CONDENSER SKIRT MOUNT (w/3 FANS) – 258E6
Обновление от: 9/25/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-5944 | TUBE - discharge | 1 | |
| 2 | 66-9842 | VALVE | 2 | |
| 3 | 42-409 | SWITCH - hpco | 1 | |
| 41-5070 | SWITCH (see 115D14 for connectors) | 1 | ||
| 4 | 33-2846 | O-RING (.437 id) | A/R | |
| 33-566 | O-RING (.50 id) | A/R | ||
| 5 | 67-2722 | COIL - condenser | 1 | |
| 55-8711 | INSERT | 6 | ||
| 55-2979 | SCREW - coil | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 6 | 33-4903 | GASKET - coil (side, 1/2 in thk) | 1 | |
| 7 | 33-4902 | GASKET - coil (side, 1/4 in thk) | 1 | |
| 8 | 33-4904 | GASKET - coil (3/8 in thk) | 1 | |
| 9 | 61-5945 | TUBE - liquid | 1 | |
| 10 | 61-5212 | DEHYDRATOR | 1 | |
| 11 | 55-6225 | CLAMP - dehydrator | 2 | |
| 12 | 92-9617 | BRACKET - tube | 2 | |
| 55-3101 | RIVET - bracket | 6 | ||
| 13 | 55-6388 | CLAMP - tube (.375 id) | 2 | |
| 55-2979 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 |
