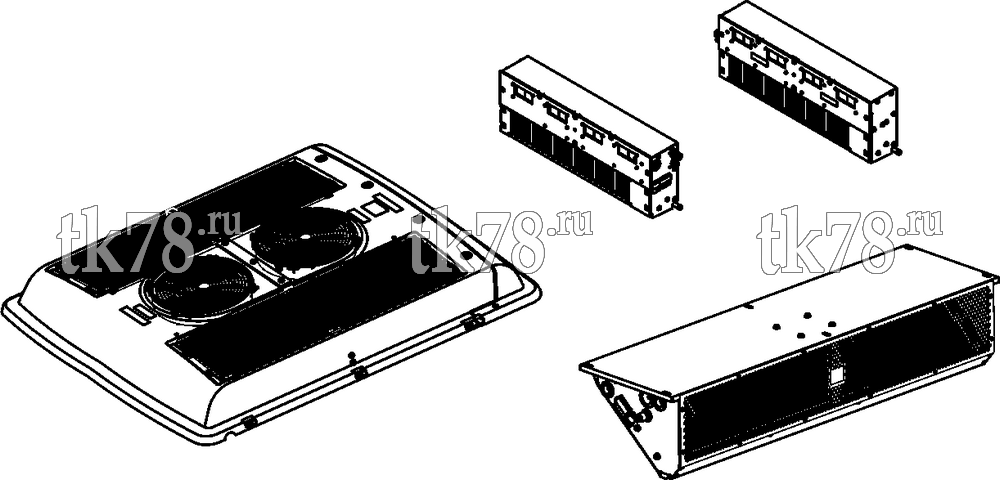

Установкa Thermo King BE-550 схема BE-550 REFERENCE SHEET – 18U79
Обновление от: 4/4/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 902438 | BE-550 w/ Right Connection | 2/13 | ||
| 902439 | BE-550 w/ Left Connection | 2/13 | ||
| 007711 | Evaporator Assembly w/ Right Side Connections | 2/13 | ||
| 013483 | Condenser SLC | 2/13 | ||
| 013498 | Condenser - Skirt Mount | 2/13 | ||
| 013756 | Evaporator Assembly w/ Left Side Connections | 2/13 | ||
| 701992 | Condenser Harness Kit 11M | 2/13 | ||
| 702413 | Drain Hose Kit | 2/13 | ||
| 702503 | Swivel Manifold Kit | 2/13 | ||
| 702506 | Standard Controls | 2/13 | ||
| 703059 | Evaporator Cover Kit | 2/13 | ||
| 703060 | Condenser Harness Kit 15M | 2/13 | ||
| 703061 | Driver Panel Harness 4M | 2/13 | ||
| 703062 | Driver Panel Harness 10M | 2/13 | ||
| 703063 | Driver Panel Harness 14M | 2/13 | ||
| 703075 | Control Panel Rooftop Mount | 2/13 | ||
| 703076 | Control Panel Skirt Mount | 2/13 | ||
| 703154 | Compressor Kit 16HD 12V 2A Groove | 2/13 | ||
| 703155 | Compressor Kit 16HD 12V 8V Groove | 2/13 | ||
| 703156 | Compressor Kit 16HD 12V 8V Groove | 2/13 | ||
| 703157 | Compressor Kit 16HD 12V 2A Groove | 2/13 | ||
| 703158 | Compressor Kit 21HD 12V 8V Groove | 2/13 | ||
| 703159 | Compressor Kit 21HD 12V 2A Groove | 2/13 | ||
| 703160 | Compressor Kit 21HD 12V 1B Groove | 2/13 | ||
| 703322 | Oil Separator w/ Hose Kit Straight Fittings | 2/13 | ||
| 703323 | Oil Separator w/ Hose Kit 90 Degree Fittings | 2/13 | ||
| 703486 | Oil Separator w/ Hose Kit 45 Degree Fittings | 2/13 | ||
| 703541 | Refrigeration Fittings Skirt Condenser 90 Degree Fittings | 2/13 | ||
| 703542 | Refrigeration Fittings Skirt Condenser 45 Degree Fittings | 2/13 | ||
| 703543 | Refrigeration Fittings Skirt Condenser Straight Fittings | 2/13 | ||
| 703544 | Refrigeration Fittings Rooftop Condenser 90 Degree Fittings | 2/13 | ||
| 703545 | Refrigeration Fittings Rooftop Condenser 45 Degree Fittings | 2/13 | ||
| 703546 | Refrigeration Fittings Rooftop Condenser Straight Fittings | 2/13 | ||
| 703554 | Evaporator Harness Kit 4M | 2/13 | ||
| 703555 | Evaporator Harness Kit 11M | 2/13 | ||
| 703654 | Front Mounting Brackets Horizontal | 3/13 | ||
| 703657 | Rear Mounting Brackets Horizontal | 3/13 | ||
| 703661 | Rear Cover Kit International | 3/13 | ||
| 703662 | Front Cover Kit International | 3/13 | ||
| 718286 | Compressor Straight Manifold Kit TM16/21 | 2/13 | ||
| 719704 | Hose Kit for Skirt Condenser | 2/13 | ||
| 719706 | Hose Kit for Rooftop Condenser | 2/13 | ||
| 720839 | Harness Control Panel to Compressor 10M | 2/13 | ||
| 720849 | Harness Control Panel to Compressor 18M | 2/13 | ||
| 800722 | Install Kit | 2/13 | ||
| 800723 | Install Kit | 2/13 | ||
| 800766 | Roof Plate SLC Kit | 2/13 | ||
| 800767 | Roof Plate Shuttle Kit | 2/13 |
