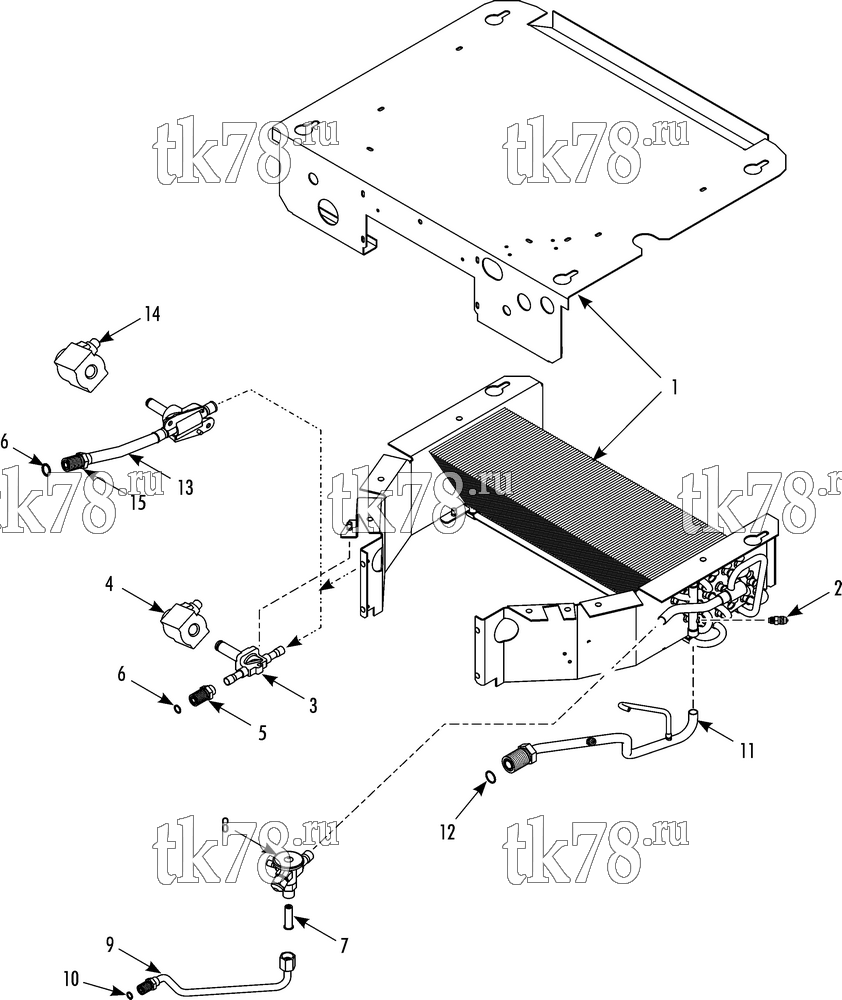

Установкa Thermo King B-100 схема EVAPORATOR REFRIGERATION (ES100, 10/11 & after) – 256G9
Обновление от: 9/17/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2754 | COIL - evaporator | 1 | |
| 2 | 61-2504 | VALVE - service port | 1 | |
| 3 | 66-7878 | SOLENOID - hot gas (before Jul 12) | 1 | |
| 4 | 41-5789 | COIL - valve (12V) | 1 | |
| 41-5791 | COIL - valve (24V) | 1 | ||
|
10-41-5791 | Катушка соленоида 24V, V-Series | 4 200 ₽ |
|
| 51-2011 | SCREW - valve | 1 | ||
| 5 | 51-2101 | FITTING - hot gas | 1 | |
| 6 | 33-1015 | O-RING (3/8 id, #6) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 7 | 61-1297 | FILTER - expansion | 1 | |
| 8 | 66-9312 | BODY - expansion valve (R134a) | 1 | |
| 203-534 | TAPE - insulating | A/R | ||
| 9 | 61-5806 | TUBE - expansion valve (wo/ Jet Cool, R134a) | 1 | |
| 10 | 33-1461 | O-RING (5/16, #4) | 1 | |
| 11 | 61-5810 | TUBE - suction | 1 | |
| 12 | 33-2115 | O-RING (5/8 id, #10) | 1 | |
| 13 | 61-6109 | TUBE - hot gas (Jul 12 & after) | 1 | |
| 61-6110 | SOLENOID - hot gas (see 269A7) | 1 | ||
| 61-434 | FITTING - hot gas (#6) | 1 | ||
| 55-9836 | NUT - fitting (#6) | 1 |
