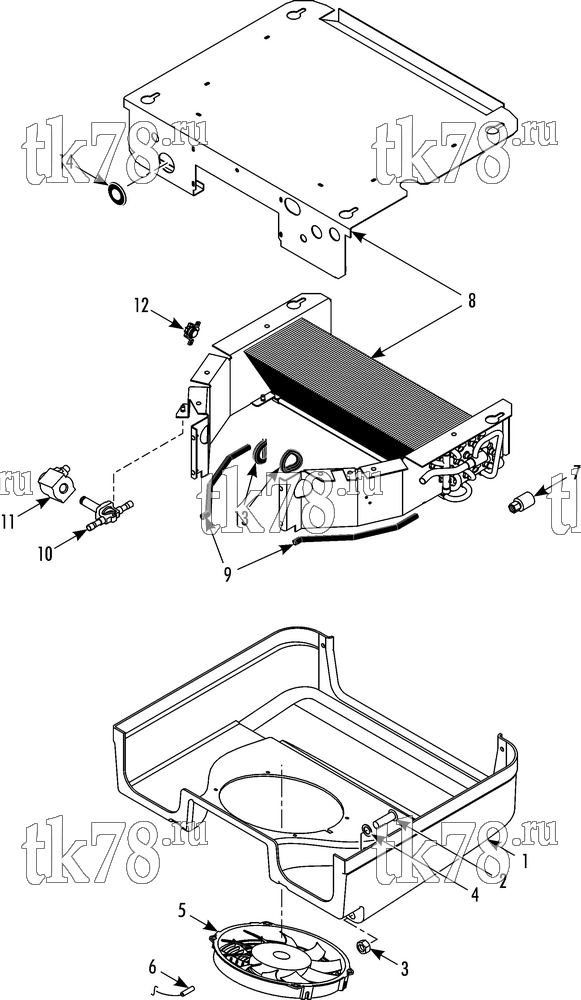

Установкa Thermo King B-100 схема EVAPORATOR COVER & ELECTRICAL COMPONENTS (ES100, 10/11 & after) – 256G0
Обновление от: 8/19/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8249 | COVER - evaporator (ES100) | 1 | |
| 51-2010 | SCREW - cover | 6 | ||
| 55-9492 | WASHER - cosmetic | 2 | ||
| 55-9491 | CAP - cosmetic | 2 | ||
| 2 | 92-3466 | TUBE - defrost drain | 2 | |
| 3 | 51-790 | NUT - drain tube | 2 | |
| 4 | 51-791 | WASHER - drain seal | 2 | |
| 5 | 78-1643 | FAN - evaporator (12V) | 1 | |
| 78-1644 | FAN - evaporator (24V) | 1 | ||
| 51-1808 | RIVET - fan (unscrewing) | 4 | ||
| 6 | 41-5784 | SENSOR - temperature | 1 | |
| 42-3067 OEM | Датчик температуры, V-Series | 12 360 ₽ |
|
|
| 10-42-3067 | Датчик температуры, V-Series | 9 420 ₽ |
|
|
| 55-9825 | CLAMP - sensor | 1 | ||
| 51-2161 | SCREW - clamp | 1 | ||
| 51-2167 | NUT | 1 | ||
| 7 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 8 | 67-2754 | COIL - evaporator (ES100) | 1 | |
| 9 | 92-6268 | SEAL - rubber | 1 | |
| 10 | 61-6110 | SOLENOID - hot gas (Jul 12 & afer, see 269A7) | 1 | |
| 66-7878 | SOLENOID - hot gas (before Jul 12) | 1 | ||
| 11 | 41-5789 | COIL - valve (12V) | 1 | |
| 41-5791 | COIL - valve (24V) | 1 | ||
|
10-41-5791 | Катушка соленоида 24V, V-Series | 4 200 ₽ |
|
| 51-2011 | SCREW - valve | 1 | ||
| 12 | 41-3136 | SWITCH - defrost termination | 1 | |
| 51-2071 | SCREW - switch | 2 | ||
| 13 | 33-3135 | GROMMET (35 mm) | 2 | |
| 14 | 33-2923 | GROMMET (35 mm) | 1 |
