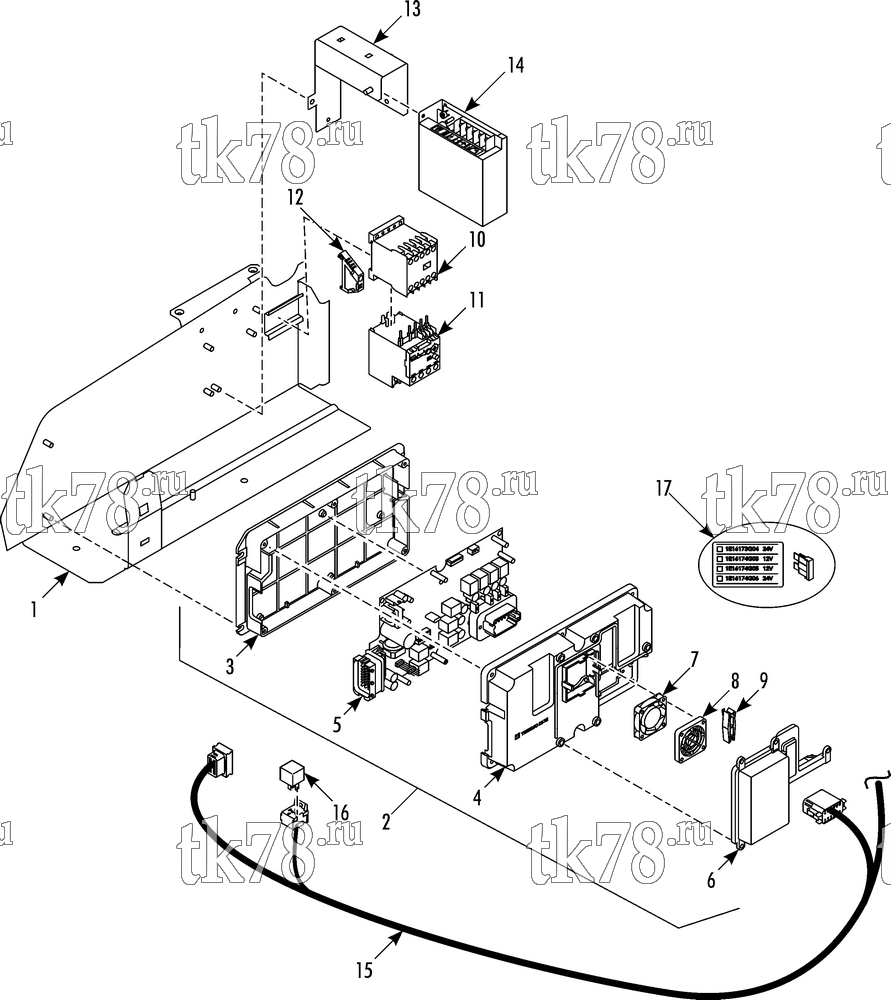

Установкa Thermo King B-100 схема CONTROL BOX (w/ DSR II) – 219C9
Обновление от: 9/16/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-6269 | SUPPORT - electric components | 1 | |
| 55-7367 | NUT - support | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 33-4368 | SEALER | A/R | ||
| 2 | 45-2190 | MODULE - control (12V DSR II, see note) | 1 | |
| 3 | 92-3470 | COVER - rear | 1 | |
| 4 | 92-3471 | COVER - front | 1 | |
| 5 | NSS | BOARD - pc | 1 | |
| 6 | 92-3473 | COVER - access, fuses | 1 | |
| 7 | 41-5480 | FAN - DC | 1 | |
| 8 | 92-3472 | FILTER - fan | 1 | |
| 9 | 204-1101 | PULLER - fuse | 1 | |
| 55-7367 | NUT - cover | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 10 | 41-7778 | CONTACTOR - reversing (12VDC, only for B-100 20) | 1 | |
| 41-7779 | CONTACTOR - reversing (24VDC, only for B-100 20) | 1 | ||
| 11 | 41-7632 | RELAY - overload (only for B-100 20) | 1 | |
| 12 | 41-898 | FIXING - plastic (only for B-100 20) | 1 | |
| 13 | 92-6270 | SUPPORT - power supply (only for B-100 20) | 1 | |
| 55-7367 | NUT - support | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 14 | 41-7776 | POWER SUPPLY (AC/DC, 12V, only for B-100 20) | 1 | |
| 41-7777 | POWER SUPPLY (AC/DC, 24V, only for B-100 20) | 1 | ||
| 51-1647 | SCREW - power supply | 2 | ||
| 55-7830 | FLATWASHER | 2 | ||
| 55-7864 | NUT | 2 | ||
| 15 | 41-7815 | HARNESS - condenser (B-100 10, see 236B9) | 1 | |
| 41-7818 | HARNESS - condenser (B-100 20, see 236B0) | 1 | ||
| 16 | 41-895 | RELAY (12V) | 1 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 41-896 | RELAY (24V) | 1 | ||
| 17 | 40-1182 | KIT - fuse & decal | 1 | |
| 41-3080 | FUSE (2 amp, gray) | A/R | ||
| 41-4551 | FUSE (5 amp, tan) | A/R | ||
| 30-41-4551 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 41-4552 | FUSE (7.5 amp, brown) | A/R | ||
| 30-41-4552 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 41-4553 | FUSE (10 amp, red) | A/R | ||
| 41-4554 | FUSE (15 amp, blue) | A/R | ||
| 41-4555 | FUSE (20 amp, yellow) | A/R |
