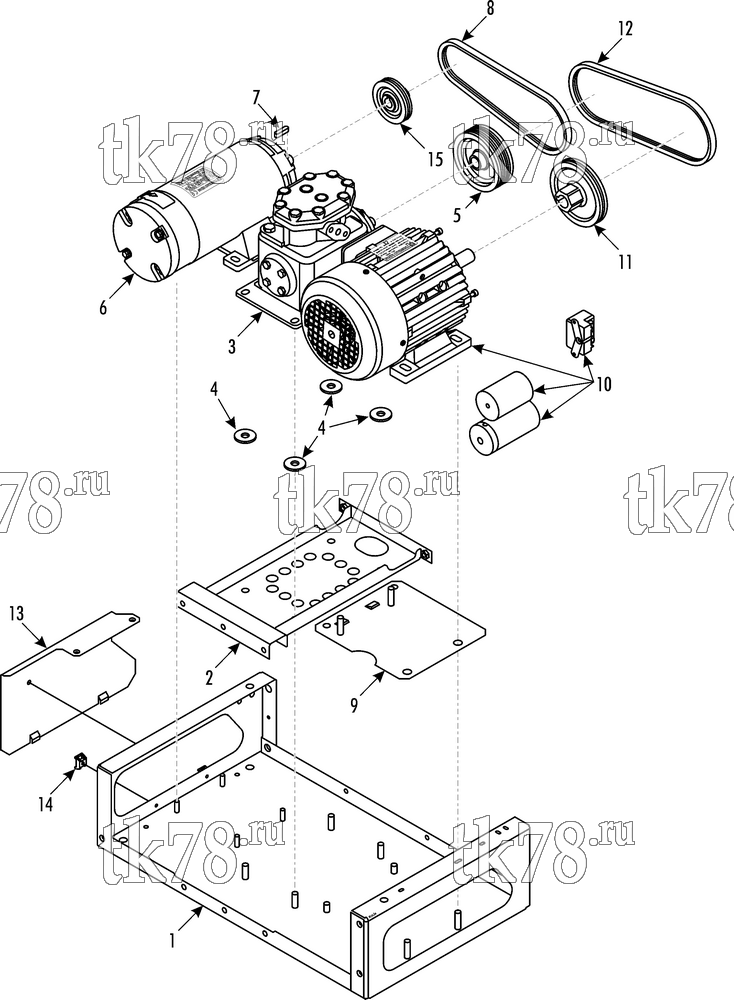

Установкa Thermo King B-100 схема POWER PACK – 219C5
Обновление от: 9/11/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7803 | BASE - power pack | 1 | |
| 55-9898 | RIVET - base | 2 | ||
| 55-7367 | NUT - base | 4 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 33-4368 | SEALER - top (sponge) | A/R | ||
| 33-4369 | SEALER - side (sponge) | A/R | ||
| 2 | 92-6264 | PLATE - compressor | 1 | |
| 3 | 102-891 | COMPRESSOR | 1 | |
| 22-1106 | SEAL - shaft | 1 | ||
| 33-3625 | GASKET - discharge valve | 1 | ||
| 33-3626 | GASKET - suction valve | 1 | ||
| 51-1643 | SCREW - compressor plate (12mm) | 2 | ||
| 55-7172 | SCREW - compressor plate (16mm) | 3 | ||
| 55-6996 | LOCKWASHER | 3 | ||
| 55-7075 | FLATWASHER | 3 | ||
| 4 | 51-1920 | WASHER - compressor | 4 | |
| 55-7825 | NUT - compressor | 4 | ||
| 55-7066 | LOCKWASHER | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 5 | 77-2892 | PULLEY - compressor | 1 | |
| 6 | 104-736 | MOTOR - DC (12V) | 1 | |
| 104-737 | MOTOR - DC (24V) | 1 | ||
| 92-6311 | BRUSH - DC motor | 4 | ||
| 41-8309 | PROTECTION - thermal, contact | 1 | ||
| 41-9905 | CAP - brush end | 1 | ||
| 55-7354 | NUT - motor | 4 | ||
| 55-6996 | WASHER - fender | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 7 | 51-2032 | KEY - motor | 1 | |
| 8 | 78-1556 | BELT | 1 | |
| 9 | 92-6266 | BASE - AC motor (only for B-100 20) | 1 | |
| 10 | 104-777 | MOTOR - 115/1/60 (see 236B8) | 1 | |
| 104-738 | MOTOR - 220/1/50 (see 236B8) | 1 | ||
| 104-783 | MOTOR - 230/1/60 (see 236B8) | 1 | ||
| 55-7825 | NUT - base & motor | 6 | ||
| 55-7066 | LOCKWASHER | 6 | ||
| 55-7085 | FLATWASHER | 6 | ||
| 11 | 77-2893 | PULLEY - motor (82.5mm, B-100 20, 50 Hz) | 1 | |
| 92-7679 | PULLEY - motor (99mm, B-100 20, 60 Hz) | 1 | ||
| 55-7172 | SCREW - pulley | 1 | ||
| 51-2691 | WASHER | 2 | ||
| 12 | 78-1557 | BELT (B-100 20, 50 Hz) | 1 | |
| 78-1698 | BELT (B-100 20, 60 Hz) | 1 | ||
| 13 | 92-6267 | CANALIZER - support | 1 | |
| 55-7340 | SCREW - canalizer | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 14 | 55-8212 | HOLDER - bandwrap | 2 | |
| 55-9915 | RIVET - holder | 2 | ||
| 55-2330 | BANDWRAP | 2 | ||
| 15 | 77-2891 | PULLEY - motor | 1 | |
| 55-7172 | SCREW - pulley | 1 | ||
| 55-8570 | WASHER | 1 |
