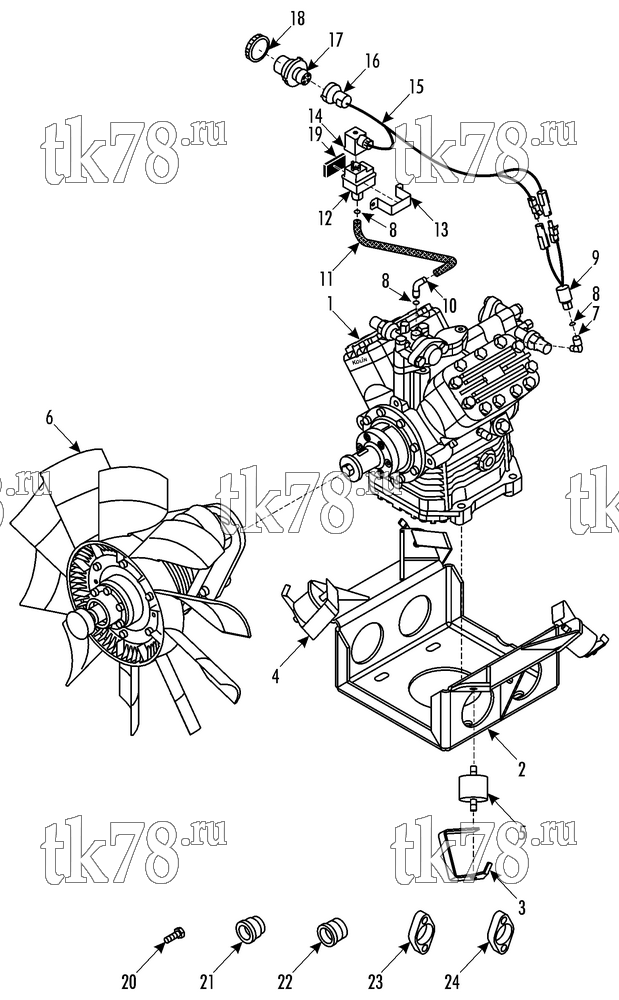

Установкa Thermo King Aquaclime Box MAN схема COMPRESSOR GROUP – 211D2
Обновление от: 9/11/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-876 | COMPRESSOR (see 206F0, only for 1E29843G01, 1E32298G01) | 1 | |
| 51-141 | SCREW - compressor | 4 | ||
| 55-7024 | FLATWASHER | 8 | ||
| 55-5006 | LOCKWASHER | 4 | ||
| 55-8471 | NUT | 4 | ||
| 2 | 92-5720 | HOLDER - compressor (1/06 & after) | 1 | |
| 92-5218 | HOLDER - compressor (before 1/06) | 1 | ||
| 3 | 92-5437 | HOLDER | 2 | |
| 4 | 92-5438 | HOLDER | 2 | |
| 5 | 92-5219 | SILENTBLOCK | 4 | |
| 55-8536 | FLATWASHER | 4 | ||
| 55-7344 | NUT | 8 | ||
| 6 | 78-1497 | BLOWER - drive, compressor (only for 1E29843G01, 1E32298G01) | 1 | |
| 78-1498 | BLOWER - drive, compressor (only for 1E31056G01) | 1 | ||
| 78-1742 | BELT | 1 | ||
| 77-3005 | PULLEY - idler | 1 | ||
| 7 | 11-5513 | VALVE - assy | 1 | |
| 55-8431 | ELBOW | 1 | ||
| 11-7777 | VALVE | 1 | ||
| 55-5264 | CAP | 1 | ||
| 8 | 33-768 | GASKET - flare | 3 | |
| 9 | 44-7893 | SWITCH - lpco | 1 | |
| 10 | 61-2909 | ELBOW | 1 | |
| 11 | 61-2809 | HOSE | 1 | |
| 12 | 41-7265 | SWITCH - hpco | 1 | |
| 13 | 92-5220 | BRACKET - switch | 1 | |
| 55-7036 | SCREW - bracket | 2 | ||
| 55-8221 | FLATWASHER | 4 | ||
| 55-7034 | NUT | 2 | ||
| 14 | 41-5205 | SOCKET - appliance | 1 | |
| 15 | 41-6991 | HARNESS (for connectors see 115D14) | 1 | |
| 16 | 41-5399 | HOUSING | 1 | |
| 17 | 41-5400 | CAP | 1 | |
| 18 | 41-5401 | RING - fixing | 1 | |
| 19 | 92-5225 | STRIP - neoprene | A/R | |
| 20 | 55-7004 | SCREW (only for 1E32724G01, 1E31056G01) | 4 | |
| 21 | 61-3399 | ADAPTER - compressor (only for 1E32724G01, 1E31056G01) | 1 | |
| 22 | 61-3400 | ADAPTER - compressor (only for 1E32724G01, 1E31056G01) | 1 | |
| 23 | 55-9371 | FLANGE (only for 1E32724G01, 1E31056G01) | 1 | |
| 24 | 51-1332 | FLANGE (only for 1E32724G01, 1E31056G01) | 1 |
