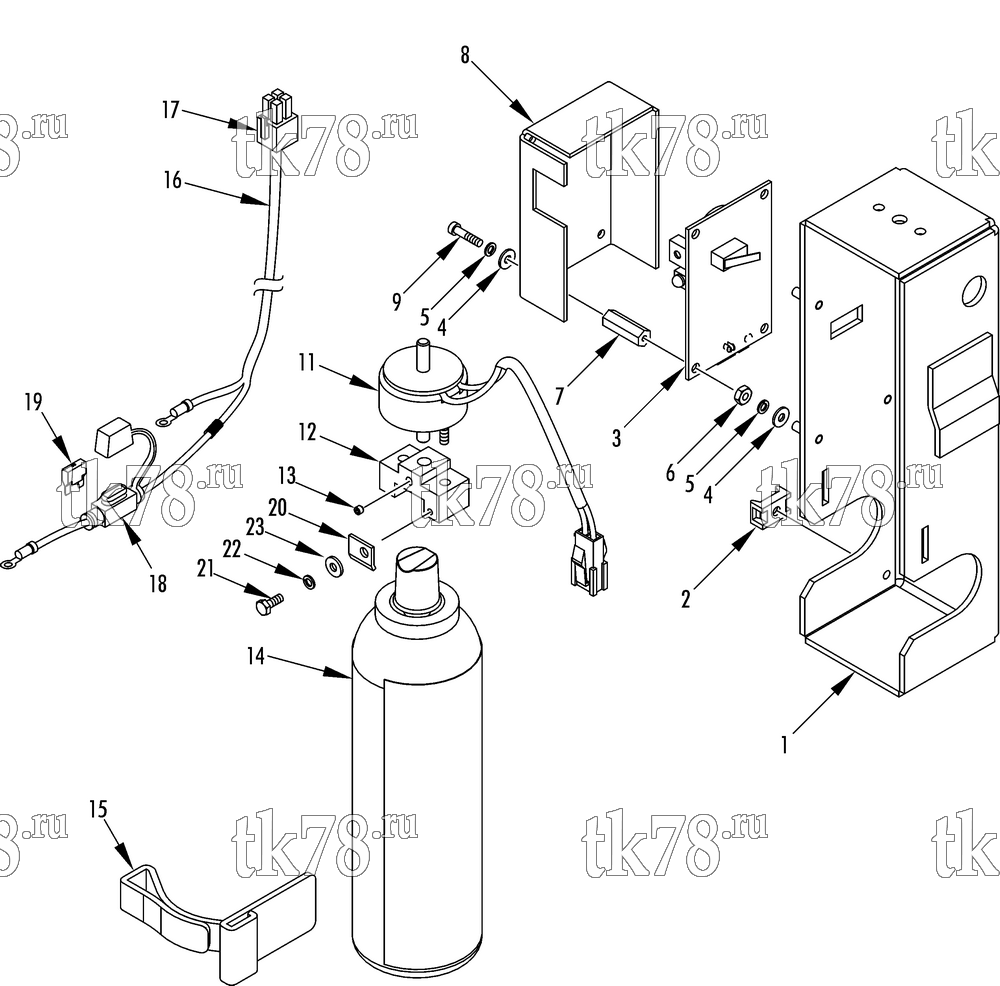

Установкa Thermo King Accessories & Options схема ENVIROFRESH UNIVERSAL ROOFMOUNT KIT (700658) – 217C9
Обновление от: 9/13/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 40-948 | KIT - Envirofresh | 1 | ||
| 1 | 98-7574 | BOX - Envirofresh | 1 | |
| 2 | 99-4327 | MOUNT - cable tie | 1 | |
| 55-2988 | RIVET - mount | 1 | ||
| 55-2330 | WRAP - band | 1 | ||
| 3 | 41-7395 | BOARD - pc, spray control | 1 | |
| 4 | 55-2359 | FLATWASHER | 8 | |
| 5 | 55-2360 | LOCKWASHER | 8 | |
| 6 | 55-2361 | NUT - pc board | 4 | |
| 7 | 92-5850 | STANDOFF | 4 | |
| 8 | 92-5851 | COVER - pc board | 1 | |
| 9 | 55-3427 | SCREW - cover | 1 | |
| 10 | 92-5852 | BRACKET - support | 1 | |
| 55-3015 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 11 | 41-5743 | SOLENOID | 1 | |
| 12 | 92-5853 | PLUNGER - spray nozzle | 1 | |
| 13 | 55-1768 | SCREW - set | 1 | |
| 14 | 203-553 | BOTTLE - Envirofresh fragrance | 1 | |
| 15 | 51-1567 | GRIP - tie | 1 | |
| 16 | 41-7396 | HARNESS - Envirofresh | 1 | |
| 17 | 41-654 | CONNECTOR - 4-way | 1 | |
| 18 | 41-3074 | HOLDER - fuse | 1 | |
| 30-41-3074 | Гнездо предохранителя | 600 ₽ |
|
|
| 19 | 41-4551 | FUSE - mini (5 amp, 32V) | 1 | |
| 30-41-4551 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 20 | 92-6242 | PLATE - nozzle support | 1 | |
| 21 | 55-3513 | SCREW - plate | 1 | |
| 22 | 55-3014 | LOCKWASHER | 1 | |
| 23 | 55-3013 | FLATWASHER | 1 |
