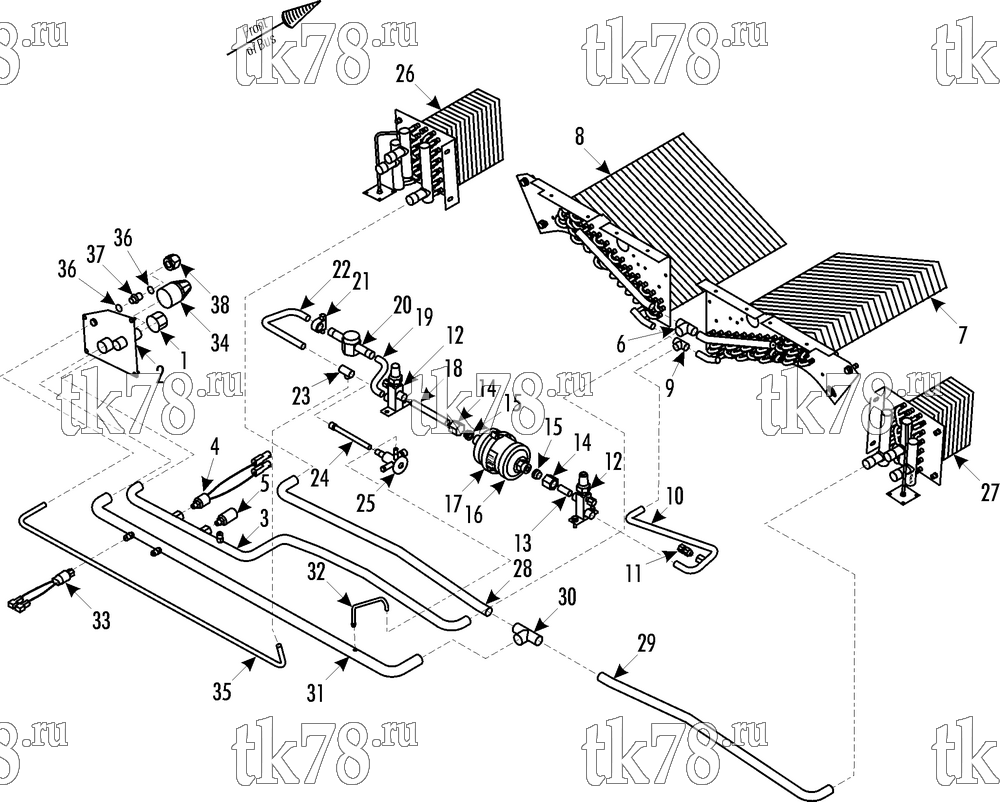

Установкa Thermo King AXR-100 1004 Articulated Bus схема REFRIGERATION COMPONENTS – 190E3
Обновление от: 2/16/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-2552 | CAP - manifold | 1 | |
| 2 | 92-3541 | PLATE - adapter | 1 | |
| 55-5130 | RIVET - plate | 4 | ||
| 3 | 61-2553 | TUBE - adapter to coil | 1 | |
| 61-2059 | VALVE | 1 | ||
| 66-6996 | FITTING - saddle | 2 | ||
| 4 | 41-1501 | SWITCH - hpco | 1 | |
| 5 | 41-5220 | SWITCH - hpco | 1 | |
| 6 | 55-7065 | TEE | 1 | |
| 7 | 67-1987 | COIL - condenser (curbside, see 190E5) | 1 | |
| 8 | 67-1988 | COIL - condenser (roadside, see 190E5) | 1 | |
| 9 | 55-2296 | TEE | 1 | |
| 10 | 61-2554 | TUBE - coil to valve | 1 | |
| 51-806 | FITTING - saddle | 1 | ||
| 11 | 66-9356 | VALVE - relief | 1 | |
| 12 | 66-4694 | VALVE - shutoff | 2 | |
| 66-2170 | CAP - valve | 2 | ||
| 55-6994 | SCREW - valve | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-6995 | FLATWASHER | 2 | ||
| 13 | 61-2555 | TUBE - valve to dehydrator | 1 | |
| 14 | 55-6838 | NUT - shoulder | 2 | |
| 15 | 55-6837 | SHOULDER | 2 | |
| 16 | 66-8344 | FILTER - dehydrator | 1 | |
| 33-566 | O-RING | 2 | ||
| 17 | 55-7800 | CLAMP - filter | 1 | |
| 18 | 61-2556 | TUBE - dehydrator to valve | 1 | |
| 19 | 61-2557 | TUBE - valve to indicator | 1 | |
| 20 | 66-1188 | INDICATOR - liquid | 1 | |
| 21 | 91-758 | CLAMP - tube | 1 | |
| 55-8316 | SCREW | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 22 | 61-2558 | TUBE - indicator to tee | 1 | |
| 23 | 55-2181 | TEE | 1 | |
| 24 | 61-2559 | TUBE - tee to expansion valve | 1 | |
| 25 | 61-1061 | VALVE - expansion | 1 | |
| 26 | 67-1989 | COIL - evaporator (roadside) | 1 | |
| 27 | 67-1990 | COIL - evaporator (curbside) | 1 | |
| 28 | 61-2560 | TUBE - evaporator to tee | 1 | |
| 29 | 61-2561 | TUBE - evaporator to tee | 1 | |
| 30 | 55-2950 | TEE | 1 | |
| 31 | 61-2562 | TUBE - tee to adapter | 1 | |
| 61-2059 | VALVE | 2 | ||
| 32 | 61-2563 | TUBE - to expansion valve | 1 | |
| 33 | 41-4309 | SWITCH - lpco | 1 | |
| 34 | 92-3542 | CAP (plastic) | 1 | |
| 35 | 61-2564 | TUBE - tee to adapter | 1 | |
| 36 | 33-1461 | O-RING | 2 | |
| 37 | 92-120 | ADAPTER - plug | 1 | |
| 38 | 92-121 | NUT | 1 |
