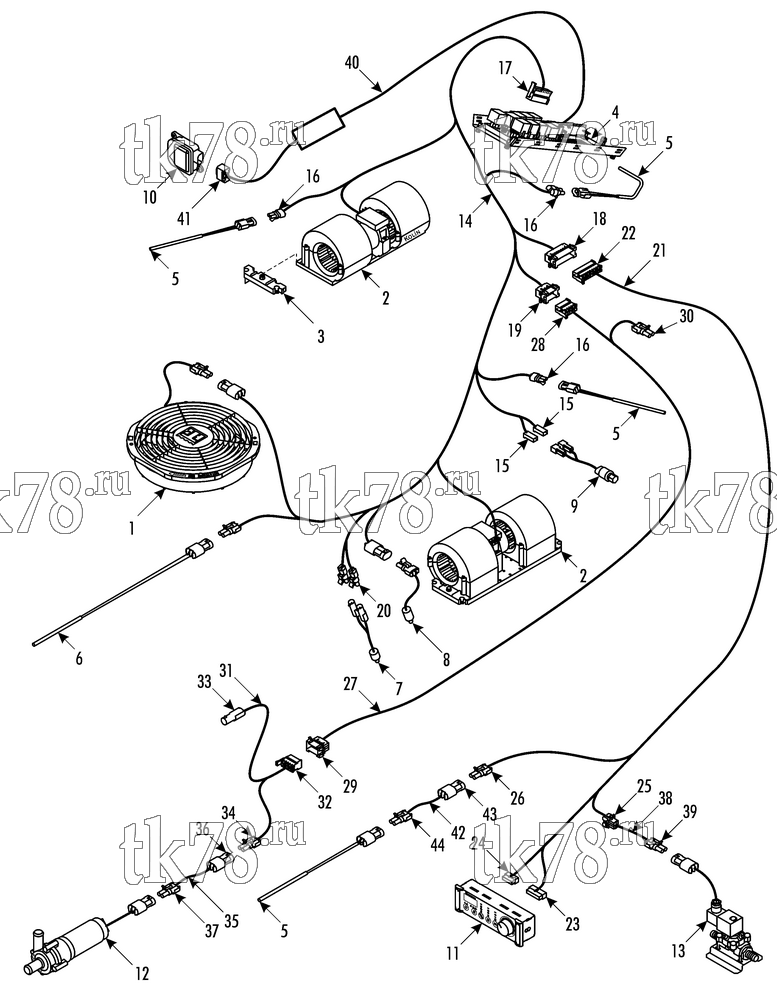

Установкa Thermo King ATHENIA Shuttle SR-250 1000, 1004 схема ELECTRICAL COMPONENTS - ClimaAIRE II (12V and 24V) – 263H8
Обновление от: 2/6/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1493 | FAN - condenser (12V) | 1 | |
| 78-1414 | FAN - condenser (24V) | 1 | ||
| 2 | 41-1717 | BLOWER - evaporator (12V) | 2 | |
| 78-1364 | BLOWER - evaporator (24V) | 2 | ||
| 3 | 51-259 | HOLDER - blower | 4 | |
| 55-7075 | FLATWASHER | 4 | ||
| 55-7042 | NUT | 4 | ||
| 4 | NSS | PANEL - control (12V, see 206C0) | 1 | |
| NSS | PANEL - control (24V, see 206D1) | 1 | ||
| 5 | 41-4157 | SENSOR - temperature | 4 | |
| 6 | 41-4335 | SENSOR - temperature | 1 | |
| 7 | 41-1501 | SWITCH - high pressure cutout | 1 | |
| 8 | 41-5220 | SWITCH - condenser pressure | 1 | |
| 9 | 41-4309 | SWITCH - low pressure | 1 | |
| 10 | 41-4315 | SERVOMOTOR (12V) | 1 | |
| 11 | 41-4658 | ClimaAIRE II (see 184F9) | 1 | |
| 12 | 41-2233 | PUMP - water (12VDC) | 1 | |
| 41-2234 | PUMP - water (24VDC) | 1 | ||
| 13 | NSS | VALVE - water (12 & 24 VDC, see 178H5) | 1 | |
| 14 | 41-6883 | HARNESS - unit (for connectors see 263H2) | 1 | |
| 15 | 44-6381 | CONNECTOR - female (1 pin) | 13 | |
| 16 | 44-5838 | CONNECTOR - tower (2 pin) | 3 | |
| 17 | 41-3856 | CONNECTOR - female (18 pin) | 1 | |
| 18 | 41-2772 | CONNECTOR - male (18 pin) | 1 | |
| 19 | 41-4054 | CONNECTOR - male(10 pin) | 1 | |
| 20 | 44-7327 | CONNECTOR - tower (1 pin) | 2 | |
| 21 | 41-5382 | HARNESS - driver panel (4 m, for connectors see 263H2) | 1 | |
| 41-5381 | HARNESS - driver panel (8 m, for connectors see 263H2) | 1 | ||
| 41-5380 | HARNESS - driver panel (10 m, for connectors see 263H2) | 1 | ||
| 41-5379 | HARNESS - driver panel (14 m, for connectors see 263H2) | 1 | ||
| 41-5360 | HARNESS - driver panel (16 m, for connectors see 263H2) | 1 | ||
| 41-5378 | HARNESS - driver panel (18 m, for connectors see 263H2) | 1 | ||
| 22 | 41-3856 | CONNECTOR - female (18 pin) | 1 | |
| 23 | 41-650 | CONNECTOR - in-line (18 pin, male) | 1 | |
| 24 | 41-661 | CONNECTOR - in-line (14 pin) | 1 | |
| 26 | 44-5838 | CONNECTOR - tower (2 pin) | 1 | |
| 27 | 41-4314 | HARNESS - extension (for connectors see 263H2) | 1 | |
| 28 | 41-3855 | CONNECTOR - female (10 pin) | 1 | |
| 29 | 41-4054 | CONNECTOR - male(10 pin) | 1 | |
| 30 | 44-5838 | CONNECTOR - tower (2 pin) | 1 | |
| 31 | 41-7625 | HARNESS - compressor (8 m, for connectors see 263H2) | 1 | |
| 41-7624 | HARNESS - compressor (12 m, for connectors see 263H2) | 1 | ||
| 41-7623 | HARNESS - compressor (14 m, for connectors see 263H2) | 1 | ||
| 41-7622 | HARNESS - compressor (18 m, for connectors see 263H2) | 1 | ||
| 32 | 41-3855 | CONNECTOR - female (10 pin) | 1 | |
| 33 | 44-7330 | CONNECTOR - shroud (1 pin) | 1 | |
| 34 | 44-5838 | CONNECTOR - tower (2 pin) | 1 | |
| 35 | 41-6152 | HARNESS - boost pump (7.6 m, for connectors see 263H2) | 1 | |
| 41-4144 | HARNESS - boost pump (9 m, for connectors see 263H2) | 1 | ||
| 41-4143 | HARNESS - boost pump (14 m, for connectors see 263H2) | 1 | ||
| 36 | 44-5835 | CONNECTOR - shroud (2 pin) | 1 | |
| 37 | 44-5838 | CONNECTOR - tower (2 pin) | 1 | |
| 38 | 41-5390 | HARNESS - water valve solenoid (10 m, Kit 720451, for connectors see 263H2) | 1 | |
| 41-5389 | HARNESS - water valve solenoid (20 m, Kit 720450, for connectors see 263H2) | 1 | ||
| 39 | 44-5838 | CONNECTOR - tower (2 pin) | 1 | |
| 40 | 41-6882 | HARNESS - servomotor (for connectors see 263H2) | 1 | |
| 41 | 41-3288 | CONNECTOR - female (6 pin) | 1 | |
| 42 | 41-5228 | HARNESS - sensor (9m, for connectors see 263H2) | 1 | |
| 43 | 44-5835 | CONNECTOR - shroud (2 pin) | 1 | |
| 44 | 44-5838 | CONNECTOR - tower (2 pin) | 1 |
