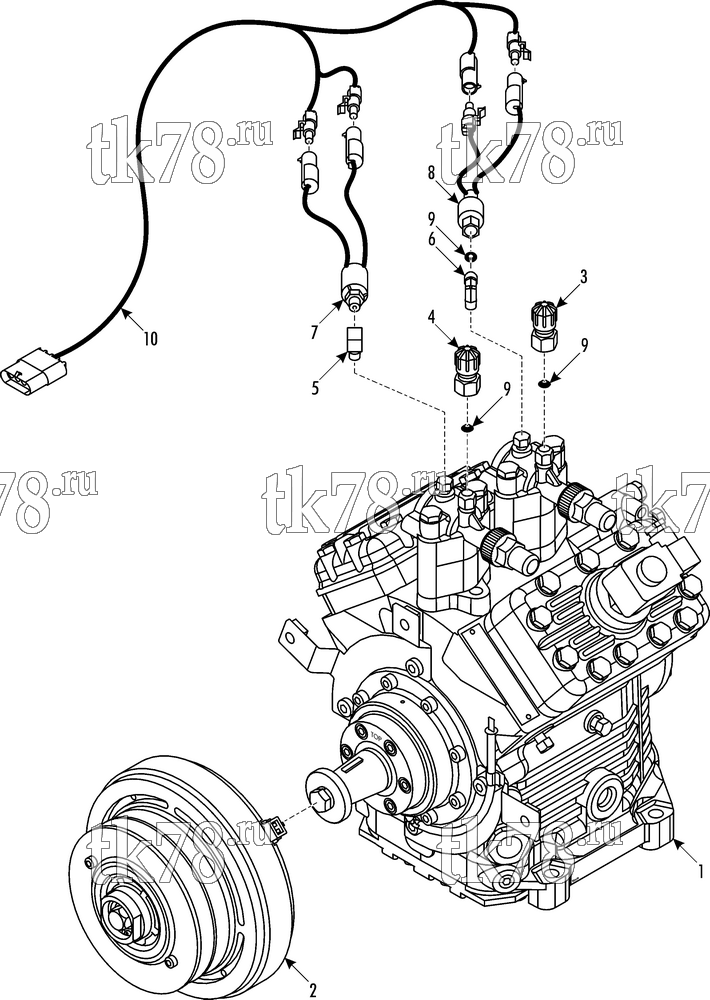

Установкa Thermo King ATHENIA S960 N 1004 ML PALMA схема COMPRESSOR GROUP (KIT 701689) – 243E6
Обновление от: 6/21/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-952 | COMPRESSOR - 3 valves (see 243E5) | 1 | |
| 2 | 107-369 | CLUTCH - compressor | 1 | |
| 3 | 51-360 | FITTING - low pressure | 1 | |
| 4 | 51-361 | FITTING - high pressure | 1 | |
| 5 | 55-2505 | ELBOW (1/8 x 1/8) | 1 | |
| 6 | 55-308 | ELBOW (1/4 x 1/8) | 1 | |
| 7 | 41-4146 | SWITCH - hpco | 1 | |
| 8 | 41-4147 | SWITCH - lpco | 1 | |
| 9 | 33-768 | GASKET (0.20id) | 3 | |
| 10 | 41-8008 | HARNESS - compressor (5,2m, for connectors see 243D5) | 1 |
