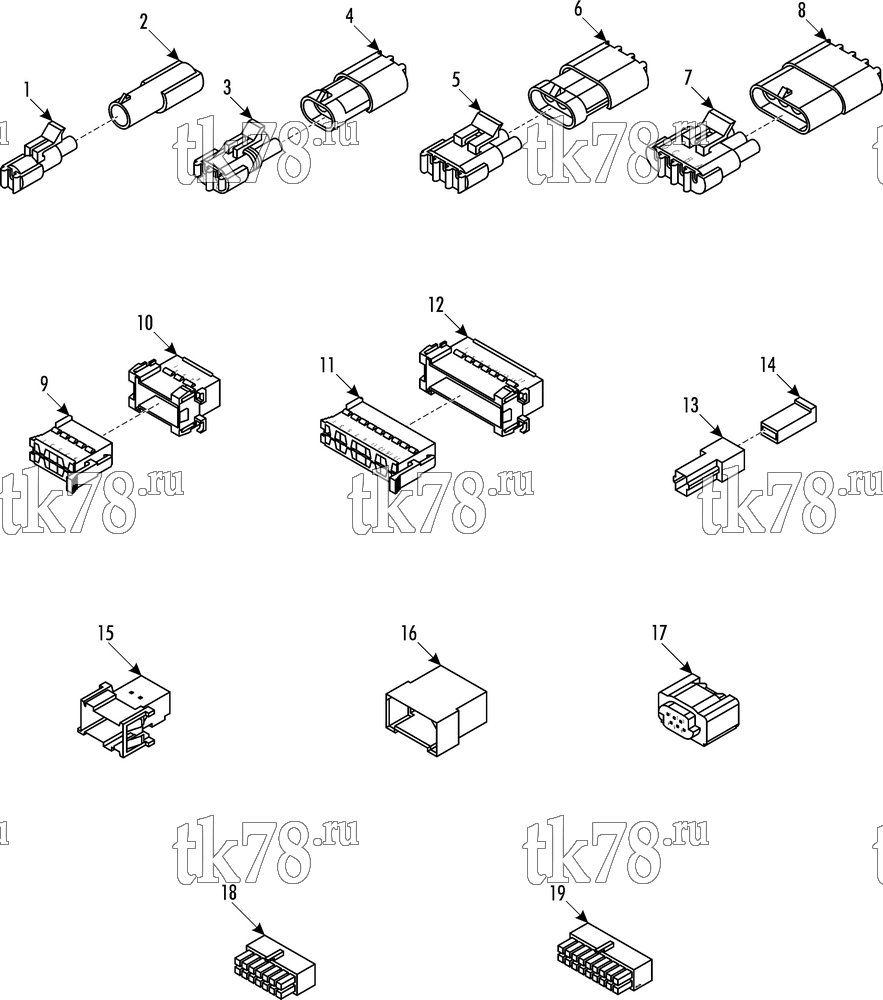

Установкa Thermo King ATHENIA S960 N 1000 Irisbus Ethel схема CONNECTORS – 243D5
Обновление от: 4/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-7327 | CONNECTOR - female (1-pin) | 1 | |
| 2 | 44-7330 | CONNECTOR - male (1-pin) | 1 | |
| 3 | 44-5838 | CONNECTOR - female (2-pin) | 1 | |
| 4 | 44-5835 | CONNECTOR - male (2-pin) | 1 | |
| 5 | 44-6959 | CONNECTOR - female (3-pin) | 1 | |
| 6 | 44-9569 | CONNECTOR - male (3-pin) | 1 | |
| 7 | 44-7881 | CONNECTOR - female (4-pin) | 1 | |
| 8 | 44-7880 | CONNECTOR - male (4-pin) | 1 | |
| 9 | 41-3855 | CONNECTOR - female (10-pin) | 1 | |
| 10 | 41-4054 | CONNECTOR - male(10-pin) | 1 | |
| 11 | 41-3856 | CONNECTOR - female (18-pin) | 1 | |
| 12 | 41-2772 | CONNECTOR - male (18-pin) | 1 | |
| 13 | 44-6264 | CONNECTOR - male (1-pin) | 1 | |
| 14 | 44-6381 | CONNECTOR - female (1-pin) | 1 | |
| 15 | 41-7652 | CONNECTOR - (6-pin) | 1 | |
| 16 | 41-3967 | CONNECTOR - (6-pin) | 1 | |
| 17 | 41-3288 | CONNECTOR - (6-pin) | 1 | |
| 18 | 41-661 | CONNECTOR - (14-pin) | 1 | |
| 19 | 41-650 | CONNECTOR - (18-pin) | 1 |
