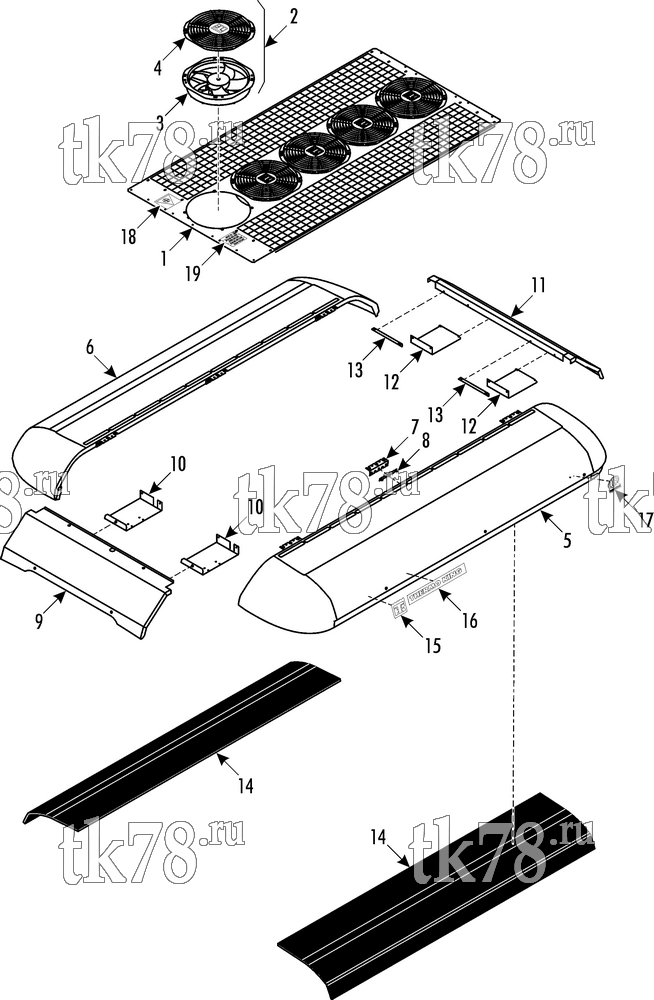

Установкa Thermo King ATHENIA S960 N 1000 Irisbus Ethel схема COVER - NARROW – 224B6
Обновление от: 3/24/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7844 | COVER - condenser | 1 | |
| 55-5130 | RIVET - cover | A/R | ||
| 2 | 78-1414 | FAN - assembly | 5 | |
| 3 | 78-1414 | FAN | 1 | |
| 4 | 78-1416 | GUARD - fan | 1 | |
| 51-1243 | SCREW | 1 | ||
| 55-7372 | SCREW - fan | 20 | ||
| 51-130 | LOCKWASHER | 20 | ||
| 55-7373 | NUT - captive | 20 | ||
| 5 | 98-7696 | COVER - evaporator | 1 | |
| 6 | 98-7245 | COVER - evaporator | 1 | |
| 51-9030 | SCREW - cover | 6 | ||
| 7 | 91-7098 | HINGE - cover | 6 | |
| 55-7036 | SCREW - hinge to frame | 12 | ||
| 55-7171 | LOCKWASHER | 12 | ||
| 55-7089 | FLATWASHER | 12 | ||
| 55-7036 | SCREW - hinge to cover | 18 | ||
| 55-7171 | LOCKWASHER | 18 | ||
| 55-7089 | FLATWASHER | 18 | ||
| 8 | 92-4019 | NUTPLATE | 6 | |
| 9 | 98-7845 | SPOILER | 1 | |
| 55-6994 | SCREW - spoiler | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 56-2086 | FLATWASHER | 4 | ||
| 51-290 | NUT - captive | 4 | ||
| 10 | 92-6373 | BRACKET | 2 | |
| 55-5130 | RIVET - bracket | 4 | ||
| 11 | 98-6896 | SPOILER | 1 | |
| 12 | 92-4020 | BRACKET | 2 | |
| 13 | 92-4021 | BRACKET | 2 | |
| 55-5130 | RIVET - spoiler & brackets | A/R | ||
| 14 | 92-5047 | INSULATION - cover | 2 | |
| 15 | 99-2789 | NAMEPLATE - TK logo | 2 | |
| 16 | 91-1154 | NAMEPLATE - Thermo King | 2 | |
| 17 | 92-1307 | NAMEPLATE - IR logo | 2 | |
| 18 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 19 | 99-8507 | NAMEPLATE - Caution, Fan | 1 |
