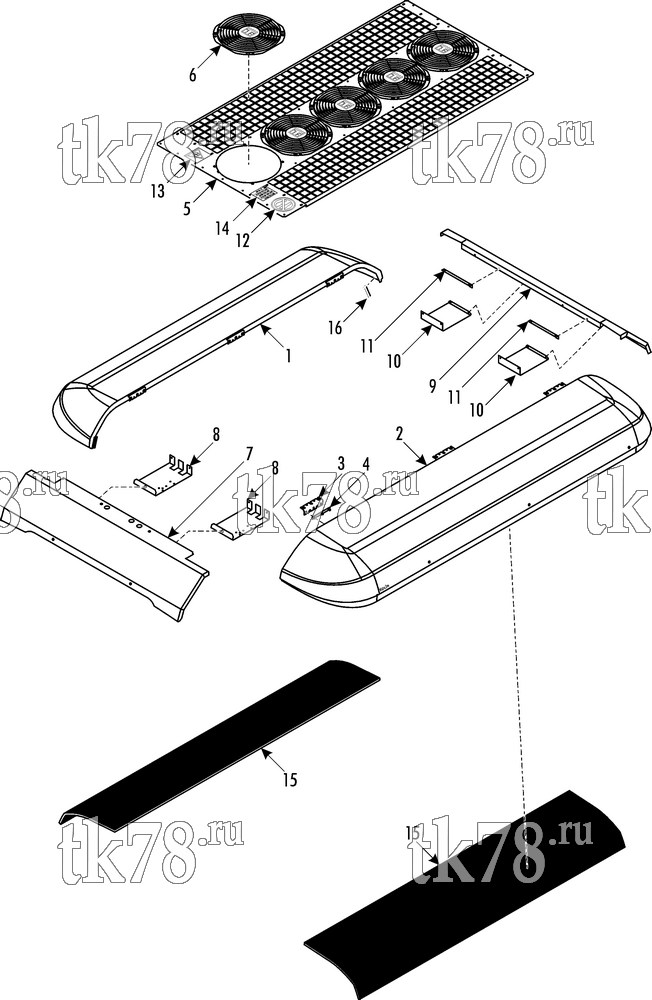

Установкa Thermo King ATHENIA S960 Iveco схема COVER – 237C7
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7247 | COVER - evaporator | 1 | |
| 2 | 98-7697 | COVER - evaporator | 1 | |
| 3 | 91-7098 | HINGE - cover | 6 | |
| 4 | 92-4019 | PLATE - nut | 6 | |
| 55-7036 | SCREW - hinge | 30 | ||
| 55-7171 | LOCKWASHER | 30 | ||
| 55-7089 | FLATWASHER | 30 | ||
| 55-8375 | NUT - captive | 12 | ||
| 51-1930 | SCREW - cover | 6 | ||
| 5 | 98-7844 | COVER - condenser | 1 | |
| 55-5130 | RIVET - cover | A/R | ||
| 6 | 78-1416 | GUARD - fan | 5 | |
| 55-7372 | SCREW | 20 | ||
| 51-130 | LOCKWASHER | 20 | ||
| 55-7373 | NUT - captive | 20 | ||
| 7 | 98-7846 | SPOILER | 1 | |
| 55-6994 | SCREW - spoiler | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 56-2086 | FLATWASHER | 4 | ||
| 51-290 | NUT - captive | 4 | ||
| 8 | 92-6373 | BRACKET - spoiler | 2 | |
| 55-5130 | RIVET - bracket | A/R | ||
| 9 | 98-6898 | SPOILER | 1 | |
| 10 | 92-4024 | BRACKET - spoiler | 2 | |
| 11 | 92-4021 | BRACKET - spoiler | 2 | |
| 55-5130 | RIVET - bracket | A/R | ||
| 12 | 92-3767 | NAMEPLATE - no step | 1 | |
| 13 | 99-8506 | NAMEPLATE - caution fan | 1 | |
| 14 | 99-8507 | NAMEPLATE - caution fan | 1 | |
| 15 | 92-5047 | INSULATION | 2 | |
| 16 | 92-146 | RUBBER - profile | A/R |
