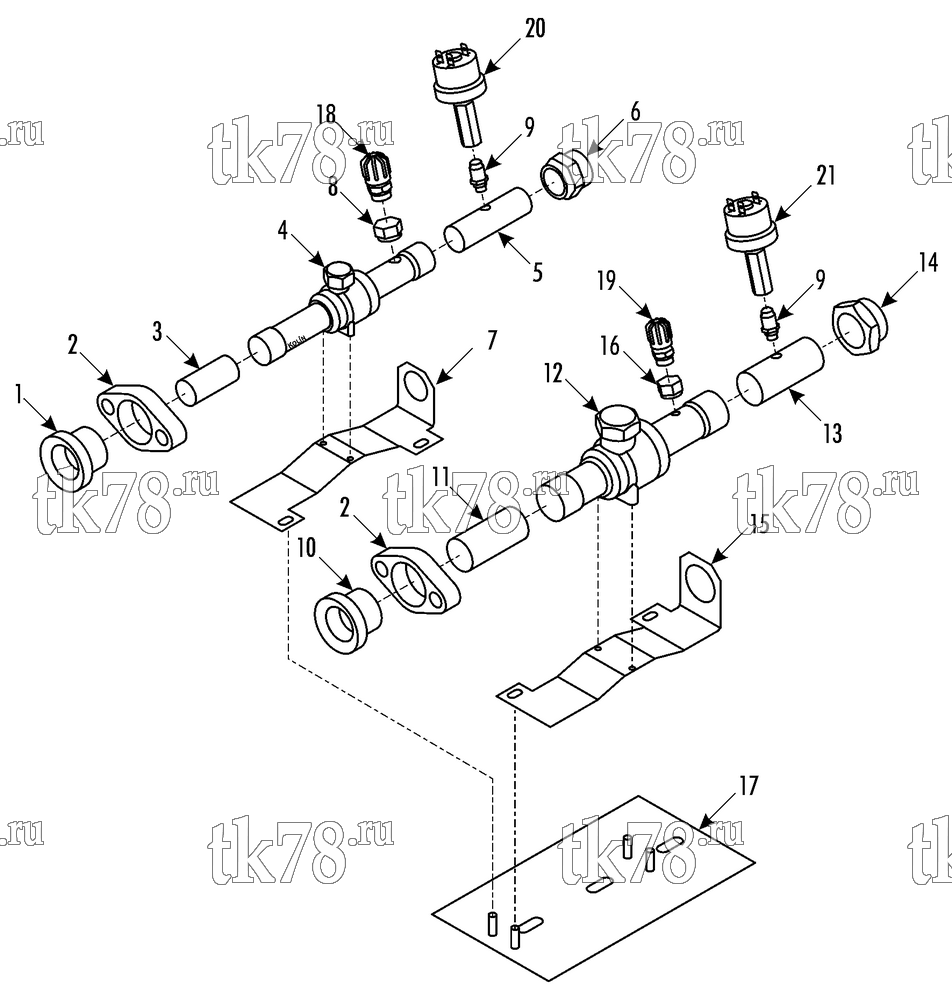

Установкa Thermo King ATHENIA S950 W 1004 WABCO CAN MAN CITY BUS схема SERVICE VALVE ASSEMBLY – 218A4
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 09-7075 | VALVE - assy | 1 | ||
| 1 | 61-1118 | ADAPTER (7/8 in) | 1 | |
| 2 | 55-9371 | FLANGE | 2 | |
| 3 | 61-1120 | TUBE | 1 | |
| 4 | 61-1117 | VALVE - discharge | 1 | |
| 5 | 61-1121 | TUBE | 1 | |
| 6 | 61-1119 | ADAPTER (7/8 in) | 1 | |
| 7 | 92-1498 | BRACKET | 1 | |
| 55-7862 | SCREW - bracket (M4) | 2 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 8 | 61-1122 | ADAPTER | 1 | |
| 9 | 55-9705 | VALVE - pressure | 2 | |
| 10 | 61-1113 | ADAPTER (1-1/8 in) | 1 | |
| 11 | 61-1114 | TUBE | 1 | |
| 12 | 61-1111 | VALVE - suction | 1 | |
| 13 | 61-1115 | TUBE | 1 | |
| 14 | 61-1112 | ADAPTER (1-1/8 in) | 1 | |
| 15 | 92-1497 | BRACKET | 1 | |
| 55-7862 | SCREW - bracket | 2 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 16 | 61-1116 | ADAPTER | 1 | |
| 17 | 92-1496 | PLATE - base | 1 | |
| 55-7354 | NUT - plate (M6) | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 18 | 61-1124 | PORT - service (discharge) | 1 | |
| 19 | 61-1123 | PORT - service (suction) | 1 | |
| 20 | 41-4332 | SWITCH - hpco (discharge) | 1 | |
| 21 | 41-4331 | SWITCH - lpco (suction) | 1 | |
| 203-393 | SEALER - thread | A/R |
