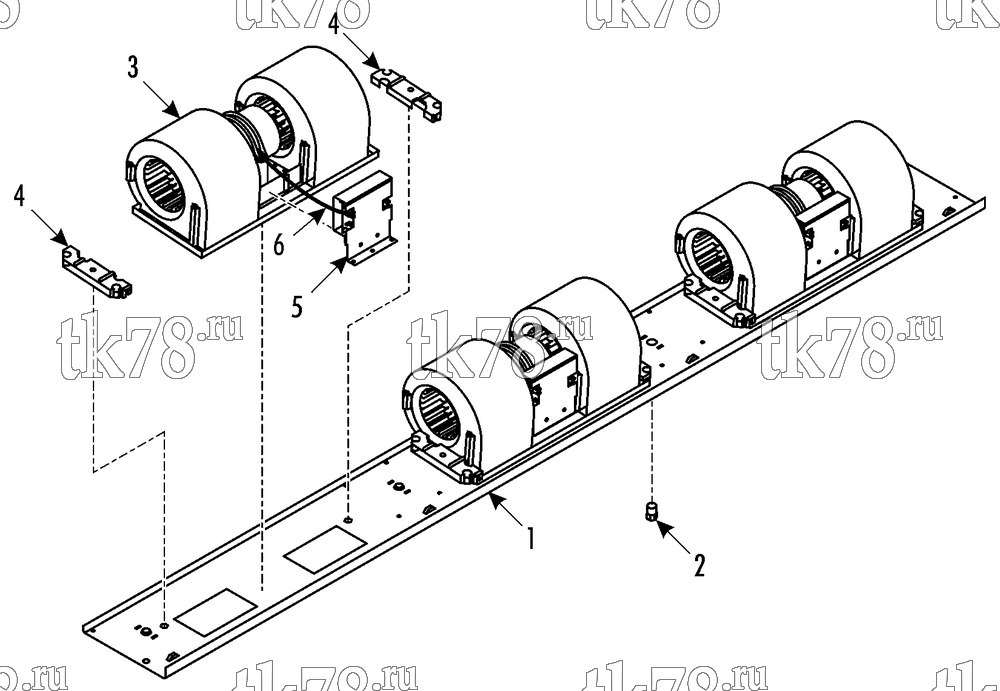

Установкa Thermo King ATHENIA S950 W 1004 WABCO CAN MAN CITY BUS схема BLOWERS (007041) – 216H6
Обновление от: 7/29/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6899 | PLATE - blower | 1 | |
| 55-5130 | RIVET - plate | A/R | ||
| 2 | 55-8403 | NUT - unit to bus roof (M8) | 4 | |
| 3 | 78-1395 | BLOWER | 3 | |
| 4 | 51-259 | HOLDER - blower | 6 | |
| 55-7372 | SCREW - holder | 6 | ||
| 55-7170 | LOCKWASHER | 6 | ||
| 55-7075 | FLATWASHER | 6 | ||
| 55-7373 | NUT - captive | 6 | ||
| 5 | 41-2757 | CONTROLLER - speed | 3 | |
| 55-5130 | RIVET - controller | A/R | ||
| 6 | 41-5192 | HARNESS - blower | 6 |
