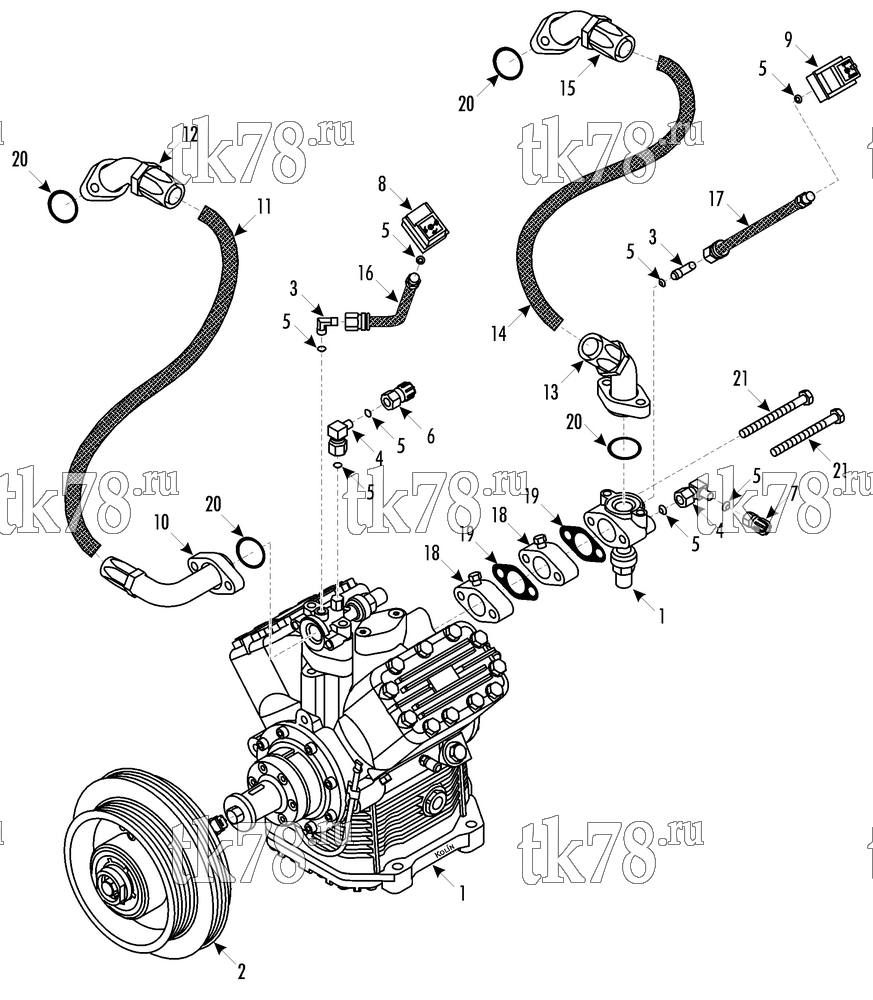

Установкa Thermo King ATHENIA S950 N 1004 WABCO CAN MAN CITY BUS схема COMPRESSOR GROUP (KIT 700737) – 218A9
Обновление от: 6/5/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-846 | COMPRESSOR - FKX 40/560 K (see 184H5) | 1 | |
| 2 | 107-358 | CLUTCH | 1 | |
| 3 | 55-308 | ELBOW | 2 | |
| 4 | 61-2724 | FITTING - L flare | 2 | |
| 5 | 33-768 | GASKET | 8 | |
| 6 | 51-361 | FITTING - high side | 1 | |
| 7 | 51-360 | FITTING - low side | 1 | |
| 8 | 41-6208 | SWITCH - hpco | 1 | |
| 9 | 41-7655 | SWITCH - lpco | 1 | |
| 10 | 51-583 | FITTING (flange, #16, 90 deg) | 1 | |
| 55-5427 | SCREW - fitting | 2 | ||
| 11 | 61-2152 | HOSE (#16) | A/R | |
| 12 | 61-2802 | FITTING (flange, #16, 45 deg) | 1 | |
| 13 | 51-581 | FITTING (flange, #20, 45 deg) | 1 | |
| 55-5427 | SCREW - fitting | 2 | ||
| 14 | 61-2183 | HOSE (#20) | A/R | |
| 15 | 61-2803 | FITTING (flange, #20, 45 deg) | 1 | |
| 16 | 61-3887 | HOSE - assy | 1 | |
| 17 | 61-3888 | HOSE - assy | 1 | |
| 18 | 92-5348 | FLANGE | 2 | |
| 19 | 33-3700 | GASKET - flat | 2 | |
| 20 | 33-3191 | GASKET - flat | 4 | |
| 21 | 108-1705 | SCREW - valve | 2 |
