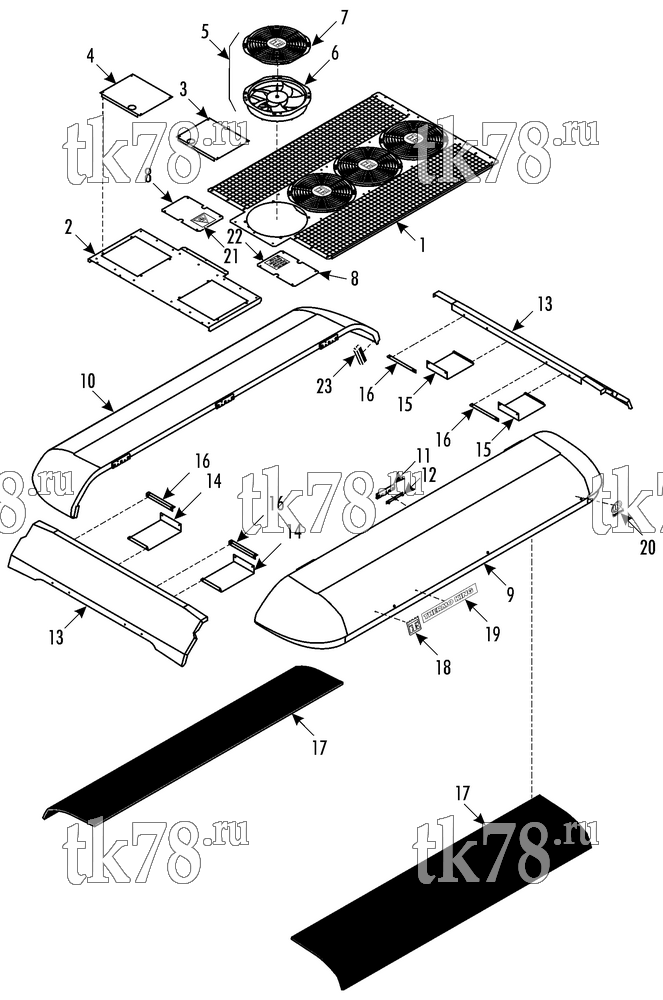

Установкa Thermo King ATHENIA S805 Split схема COVER ASSY - WIDE – 216F9
Обновление от: 3/24/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7063 | COVER - condenser | 1 | |
| 55-7373 | NUT - captive | 16 | ||
| 2 | 98-7695 | COVER - frame | 1 | |
| 55-5130 | RIVET - covers | A/R | ||
| 55-5047 | RIVET - covers | A/R | ||
| 3 | 92-6069 | COVER | 1 | |
| 4 | 92-6070 | COVER | 1 | |
| 55-7340 | SCREW - covers | 8 | ||
| 55-7404 | LOCKWASHER | 8 | ||
| 55-7089 | FLATWASHER | 8 | ||
| 51-190 | NUT - captive | 8 | ||
| 5 | 78-1414 | FAN - assembly | 4 | |
| 6 | 78-1414 | FAN | 4 | |
| 7 | 78-1416 | GUARD - fan | 4 | |
| 51-1243 | SCREW | 4 | ||
| 55-7372 | SCREW - fan | 16 | ||
| 51-130 | LOCKWASHER | 16 | ||
| 8 | 92-4018 | PLATE | 2 | |
| 55-5047 | RIVET - plate | 8 | ||
| 9 | 98-7697 | COVER - evaporator | 1 | |
| 10 | 98-7247 | COVER - evaporator | 1 | |
| 55-9306 | SCREW - covers | 6 | ||
| 11 | 91-7098 | HINGE - cover | 6 | |
| 55-7036 | SCREW - hinge to frame | 12 | ||
| 55-7171 | LOCKWASHER | 12 | ||
| 55-7089 | FLATWASHER | 12 | ||
| 55-7036 | SCREW - hinge to cover | 18 | ||
| 55-7171 | LOCKWASHER | 18 | ||
| 55-7089 | FLATWASHER | 18 | ||
| 12 | 92-4019 | NUTPLATE | 6 | |
| 13 | 98-6898 | SPOILER | 2 | |
| 14 | 92-4025 | BRACKET | 2 | |
| 15 | 92-4024 | BRACKET | 2 | |
| 16 | 92-4021 | BRACKET | 4 | |
| 55-5130 | RIVET - brackets | A/R | ||
| 17 | 92-5047 | INSULATION - cover | 2 | |
| 18 | 91-6232 | NAMEPLATE - TK logo | 2 | |
| 19 | 91-1154 | NAMEPLATE - Thermo King | 2 | |
| 20 | 92-1307 | NAMEPLATE - IR logo | 2 | |
| 21 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 22 | 99-8507 | NAMEPLATE - Caution, Fan | 1 | |
| 23 | 92-146 | GASKET - molded | A/R |
