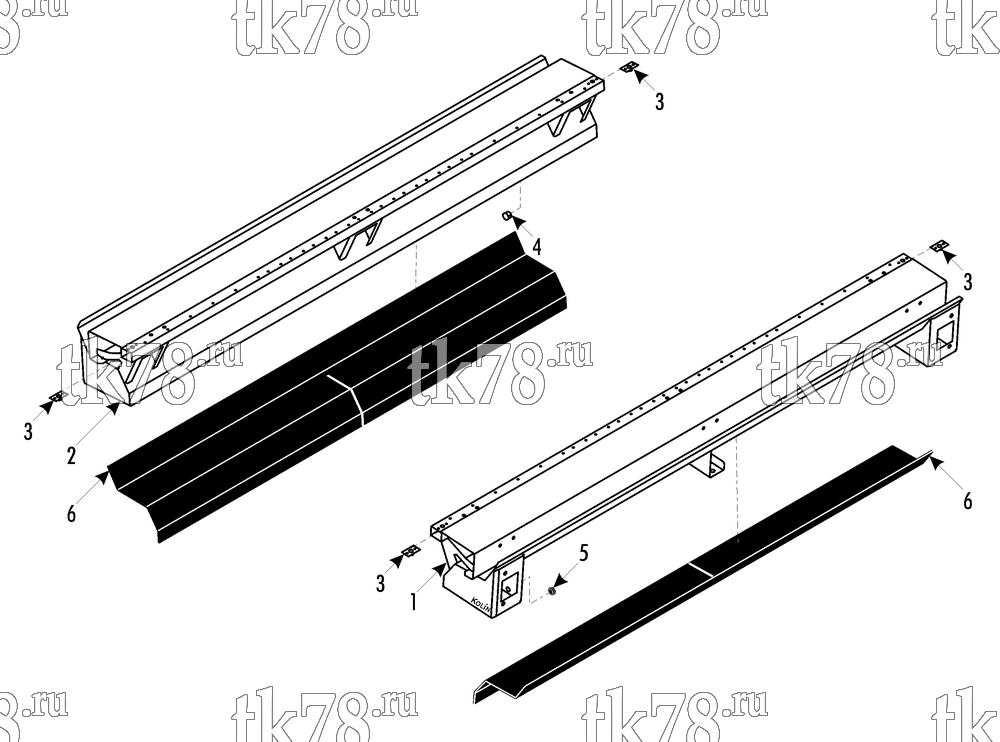

Установкa Thermo King ATHENIA S805 N/W 1000, 1004 схема AIR INTAKE WIDE W/O FA DAMPER (007379) - 3/2007 & after – 253C1
Обновление от: 7/27/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7857 | BASE - air intake | 1 | |
| 2 | 98-7858 | BASE - air intake | 1 | |
| 55-8375 | NUT - captive (M5, cover hinge) | 12 | ||
| 55-8403 | NUT - captive (M8, unit to bus roof) | 6 | ||
| 55-9837 | NUT - captive (M6, evaporator base to base) | 8 | ||
| 51-1670 | NUT - captive closed (M6, bracket to base) | 8 | ||
| 3 | 92-4030 | BRACKET - lifting eye | 4 | |
| 55-5130 | RIVET - bracket | 8 | ||
| 4 | 55-9574 | PLUG | 1 | |
| 5 | 33-314 | GROMMET (0.312 id) | 1 | |
| 6 | 92-5672 | INSULATION | 2 |
