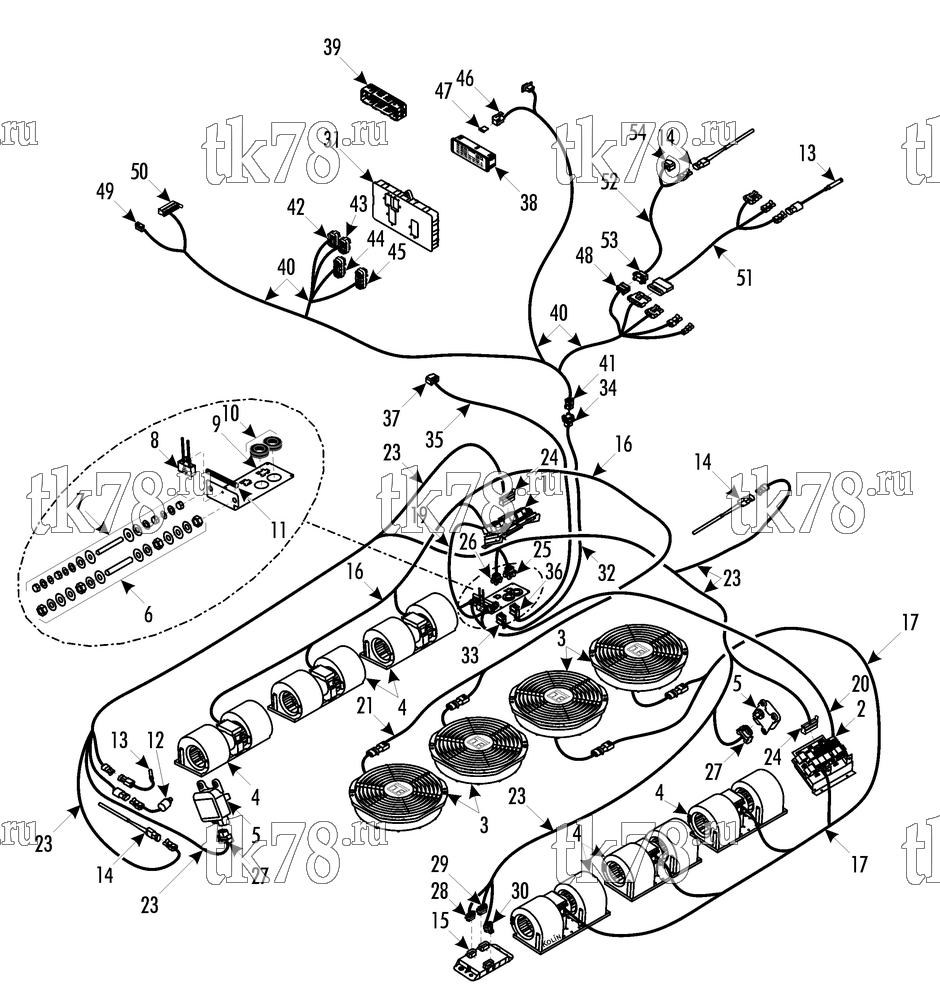

Установкa Thermo King ATHENIA S805 N/W 1000, 1004 схема ELECTRICAL COMPONENTS - IntelligAIRE II – 211B1
Обновление от: 8/1/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROLLER - left (see 206E1) | 1 | |
| 2 | NSS | CONTROLLER - right (see 194H9) | 1 | |
| 3 | 78-1414 | FAN (see 210H4, 210H5) | 4 | |
| 4 | 78-1297 | BLOWER (see 210H6) | 6 | |
| 5 | 41-3255 | SERVOMOTOR (only for units w/ dampers, see 210H9, 211A1) | 2 | |
| 6 | 55-9191 | STUD - negative (M10) | 1 | |
| 55-3672 | LOCKWASHER | 6 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-9189 | NUT | 4 | ||
| 7 | 55-9367 | STUD - positive (M8) | 1 | |
| 55-8631 | WASHER (nylon w/ shoulder) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 8 | 41-6098 | SUPPRESSOR - voltage | 1 | |
| 51-888 | STUD - self-clinching | 1 | ||
| 55-7830 | FLATWASHER | 1 | ||
| 55-9057 | LOCKWASHER | 1 | ||
| 55-7749 | NUT | 1 | ||
| 9 | 92-5060 | PLATE - electric connections | 1 | |
| 55-5130 | RIVET - plate | 4 | ||
| 10 | 33-452 | GROMMET (0.875 id) | 2 | |
| 11 | 92-3279 | STRIP - flange | A/R | |
| 12 | 41-5220 | SWITCH - cps | 1 | |
| 13 | 41-7706 | SENSOR - temperature | 2 | |
| 14 | 41-4157 | SENSOR - temperature | 3 | |
| 15 | 41-7198 | MODULE - expansion | 1 | |
| 55-6994 | SCREW - expansion module | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 16 | 41-7979 | HARNESS - control panel, left | 1 | |
| 17 | 41-7909 | HARNESS - control panel, right | 1 | |
| 19 | 41-7761 | HARNESS - supply, left | 1 | |
| 20 | 41-7762 | HARNESS - supply, right | 1 | |
| 23 | 41-9945 | HARNESS - control (units w/ fa dampers, for connectors see 115D14) | 1 | |
| 41-9944 | HARNESS - control (units w/o fa dampers, for connectors see 115D14) | 1 | ||
| 24 | 41-3856 | CONNECTOR (female, 18-pin) | 2 | |
| 25 | 41-4055 | CONNECTOR (male, 6-pin) | 1 | |
| 26 | 41-4949 | CONNECTOR (male, 4-pin) | 1 | |
| 27 | 41-3288 | CONNECTOR (female, 6-pin, units w/ fa dampers) | 2 | |
| 28 | 41-4199 | CONNECTOR (8-pin, black) | 1 | |
| 29 | 41-4198 | CONNECTOR (10-pin, gray) | 1 | |
| 30 | 41-4197 | CONNECTOR (10-pin, black) | 1 | |
| 31 | 41-3616 | MODULE - base, deluxe | 1 | |
| 32 | 41-6838 | HARNESS - roof unit to base module | 1 | |
| 33 | 41-2769 | CONNECTOR (female, 4-pin) | 1 | |
| 34 | 41-2770 | CONNECTOR (male, 4-pin) | 1 | |
| 35 | 41-8814 | HARNESS - roof unit to water valve | 1 | |
| 36 | 41-2767 | CONNECTOR (female, 6-pin) | 1 | |
| 37 | 41-3288 | CONNECTOR (female, 6-pin) | 1 | |
| 38 | 41-7200 | MODULE - display, deluxe | 1 | |
| 39 | 92-1937 | BRACKET - DIN panel | 1 | |
| 40 | 41-8809 | HARNESS - base module (IntelligAIRE II, for connectors see 115D14) | 1 | |
| 41 | 41-2769 | CONNECTOR (female, 4-pin) | 1 | |
| 42 | 44-8858 | CONNECTOR (18-pin, black) | 1 | |
| 43 | 41-4135 | CONNECTOR (18-pin, white) | 1 | |
| 44 | 44-8857 | CONNECTOR (30-pin, black) | 1 | |
| 45 | 41-4136 | CONNECTOR (30-pin, white) | 1 | |
| 46 | 41-4284 | CONNECTOR (6-pin) | 1 | |
| 47 | 41-4285 | LOCK - terminal | 1 | |
| 48 | 41-3855 | CONNECTOR (female, 10-pin) | 1 | |
| 49 | 41-2891 | CONNECTOR (male, 2 term) | 1 | |
| 50 | 41-3858 | CONNECTOR (female, 22-pin) | 1 | |
| 51 | 41-6840 | HARNESS - compressor (IntelligAIRE II, for connectors see 115D14) | 1 | |
| 52 | 41-8808 | HARNESS - floor heating (IntelligAIRE II, for connectors see 115D14) | 1 | |
| 53 | 41-4054 | CONNECTOR (male, 10-pin) | 1 | |
| 54 | 41-3288 | CONNECTOR (female, 6-pin) | 1 |
