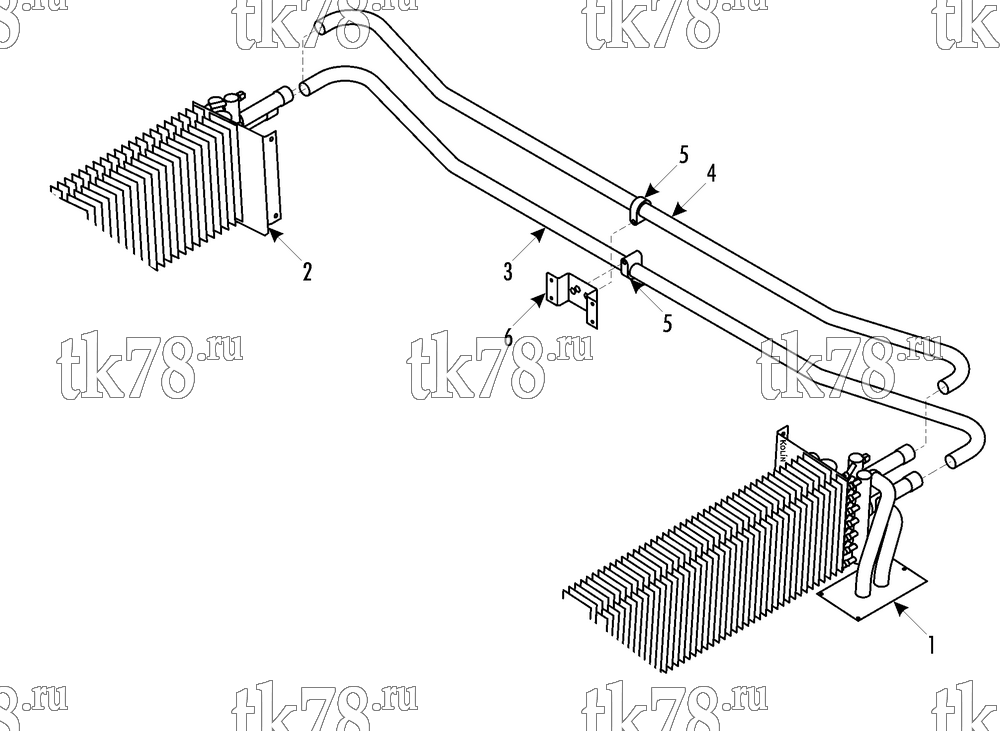

Установкa Thermo King ATHENIA S805 N/W 1000, 1004 схема TUBE HEATING - WIDE – 211A6
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2205 | COIL - evaporator/heater, curbside (see 211A7) before 12/2006 | 1 | |
| 67-2322 | COIL - evaporator/heater, curbside (see 211A7) 12/2006 & after | 1 | ||
| 2 | 67-2207 | COIL - evaporator/heater, roadside (see 211A7) before 12/2006 | 1 | |
| 67-2323 | COIL - evaporator/heater, roadside (see 211A7) 12/2006 & after | 1 | ||
| 3 | 61-3321 | TUBE - heating | 1 | |
| 4 | 61-3322 | TUBE - heating | 1 | |
| 5 | 55-7013 | CLAMP - tube | 2 | |
| 55-7027 | SCREW - clamp | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 6 | 61-2778 | HOLDER - tube | 1 | |
| 55-5130 | RIVET - holder | 4 |
