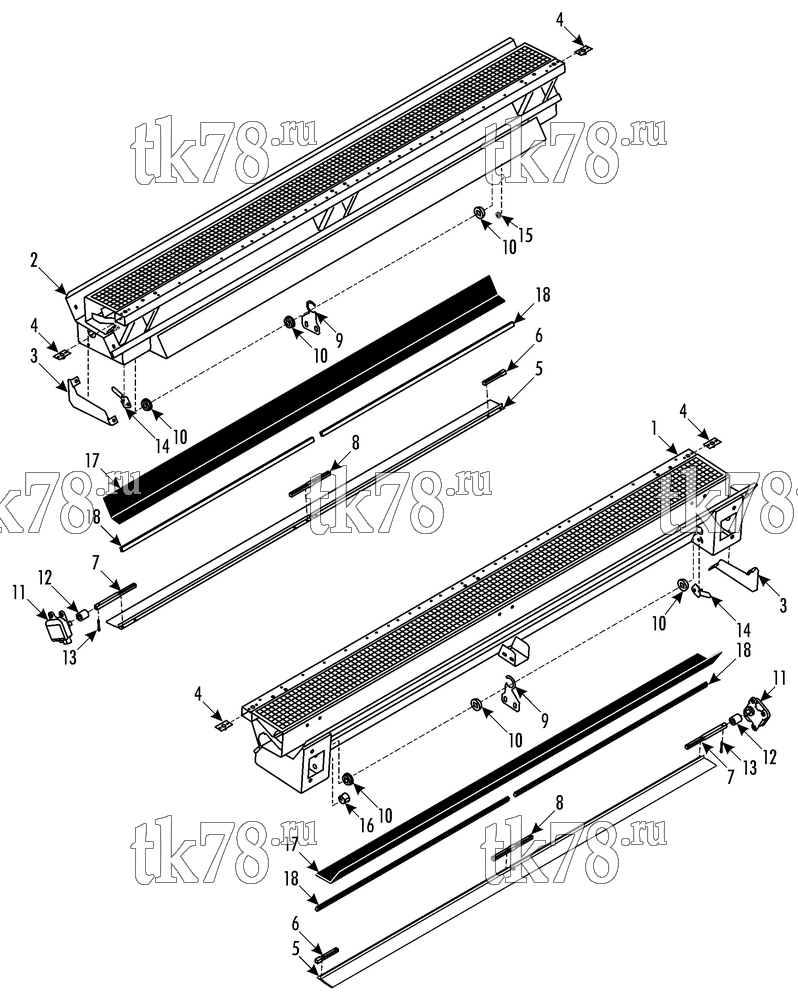

Установкa Thermo King ATHENIA S805 N/W 1000, 1004 схема AIR INTAKE - WIDE w/ FA DAMPER (007035) - before 3/2007 – 211A1
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7487 | BASE - weldment | 1 | |
| 2 | 98-7488 | BASE - weldment | 1 | |
| 55-7866 | NUT - captive (M4, servomotor) | 6 | ||
| 55-8375 | NUT - captive (M5, cover hinge & stopper) | 14 | ||
| 55-8403 | NUT - captive (M8, unit to bus roof) | 6 | ||
| 55-7373 | NUT - captive (M6, evaporator base to base) | 8 | ||
| 3 | 92-4623 | COVER | 2 | |
| 55-7340 | SCREW - cover | 4 | ||
| 55-7171 | LOCKWASHER | 4 | ||
| 55-8221 | FLATWASHER | 4 | ||
| 55-8375 | NUT - captive | 4 | ||
| 4 | 92-4030 | BRACKET - lifting eye | 4 | |
| 55-5130 | RIVET - bracket | 8 | ||
| 5 | 98-7484 | DAMPER | 2 | |
| 55-7169 | SCREW - damper | 16 | ||
| 55-7171 | LOCKWASHER | 16 | ||
| 55-8221 | FLATWASHER | 16 | ||
| 6 | 92-4031 | SHAFT - damper | 2 | |
| 7 | 92-5667 | SHAFT - damper, long | 2 | |
| 8 | 92-4032 | SHAFT - damper, middle | 2 | |
| 9 | 92-4034 | HOLDER - bearing | 2 | |
| 55-7172 | SCREW - holder | 4 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-7042 | NUT | 4 | ||
| 10 | 91-9142 | BEARING | 6 | |
| 11 | 41-2755 | SERVOMOTOR | 2 | |
| 55-9349 | SCREW - servomotor | 6 | ||
| 55-7369 | LOCKWASHER | 6 | ||
| 55-7697 | FLATWASHER | 6 | ||
| 12 | 92-685 | COUPLING - damper | 2 | |
| 13 | 55-5601 | PIN - cotter | 2 | |
| 14 | 92-4622 | STOPPER - damper | 2 | |
| 55-7172 | SCREW - stopper | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 15 | 55-9574 | PLUG | 1 | |
| 16 | 33-1055 | GROMMET (0.375 id) | 1 | |
| 17 | 92-5671 | INSULATION | 2 | |
| 18 | 92-5669 | INSULATION | 4 |
