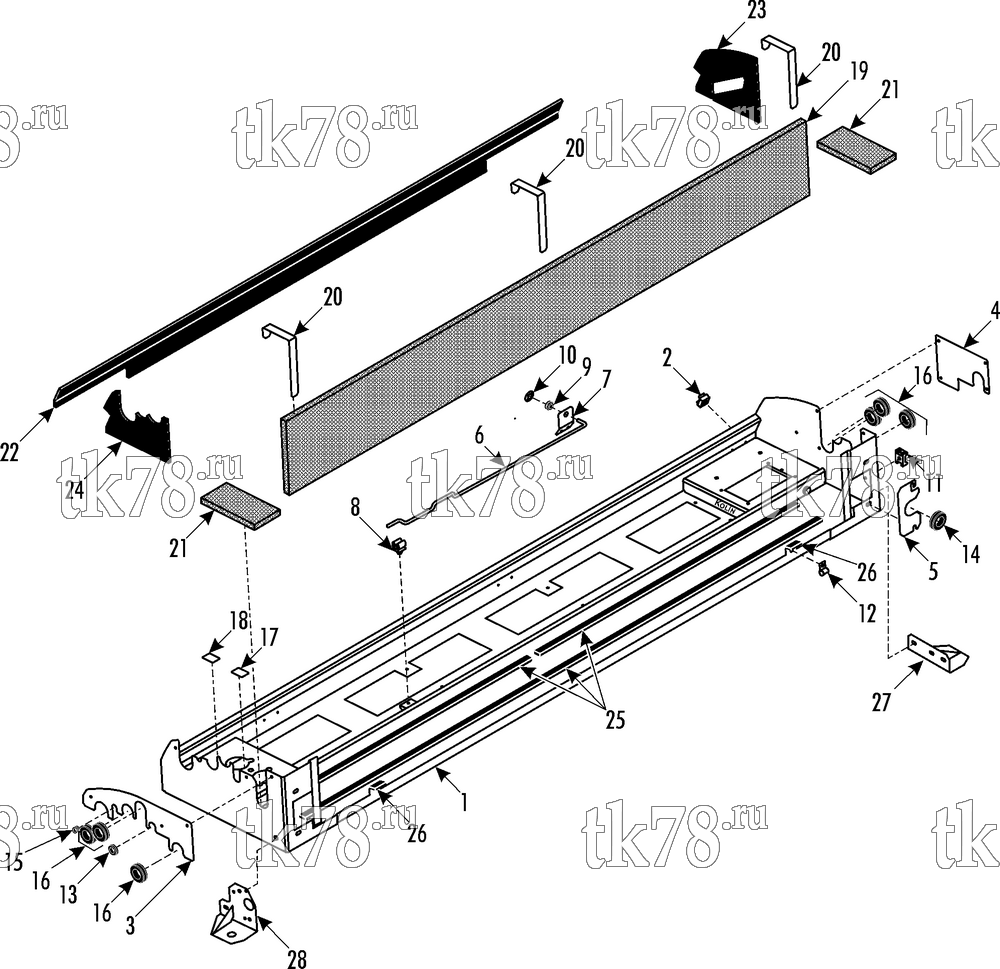

Установкa Thermo King ATHENIA S805 N/W 1000, 1004 схема EVAPORATOR BASE 2 – 210H8
Обновление от: 8/13/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7481 | BASE - evaporator | 1 | |
| 55-6994 | SCREW - base | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 2 | 55-9194 | NUT - captive | 3 | |
| 3 | 92-5665 | PLATE - cover | 1 | |
| 4 | 92-4002 | PLATE - cover (units w/o heater) | 1 | |
| 92-4003 | PLATE - cover (units w/ heater) | 1 | ||
| 55-5130 | RIVET - covers | A/R | ||
| 5 | 92-5666 | PLATE - cover | 1 | |
| 6 | 92-6378 | SUPPORT - cover | 1 | |
| 7 | 92-5048 | BRACKET - support | 1 | |
| 55-5130 | RIVET - bracket | 2 | ||
| 8 | 51-1669 | CLIP - support | 1 | |
| 9 | 83-258 | GROMMET (0.250 id) | 1 | |
| 10 | 51-809 | LOCKWASHER | 1 | |
| 11 | 99-3281 | MOUNT - bandwrap | 1 | |
| 55-5130 | RIVET - mount | 1 | ||
| 12 | 55-546 | CLAMP | 1 | |
| 55-7169 | SCREW - clamp | 1 | ||
| 55-7171 | LOCKWASHER | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 55-8375 | NUT - captive | 1 | ||
| 13 | 33-428 | GROMMET (0.50 id) | 1 | |
| 14 | 33-1084 | GROMMET (1.00 id) | 1 | |
| 15 | 33-451 | GROMMET (0.375 id) | 1 | |
| 16 | 33-452 | GROMMET (0.875 id) | A/R | |
| 17 | 91-7510 | NAMEPLATE - Gas In | 1 | |
| 18 | 91-8536 | NAMEPLATE - Vapor Out | 1 | |
| 19 | 92-5663 | FILTER - evaporator | 1 | |
| 20 | 92-5664 | CLIP - filter (for S805, S805 Split, S1000) | 3 | |
| 92-3540 | CLIP - filter (for S960 1000) | 3 | ||
| 92-5831 | CLIP - filter (for S960 1004) | 3 | ||
| 21 | 92-4007 | FILTER - evaporator | 2 | |
| 22 | 92-6377 | INSULATION | 1 | |
| 23 | 92-4013 | INSULATION | 1 | |
| 24 | 92-4014 | INSULATION | 1 | |
| 25 | 99-2996 | STRIP - neoprene | A/R | |
| 26 | 99-1908 | STRIP - neoprene | A/R | |
| 27 | 92-6060 | BRACKET (narrow units) | 1 | |
| 92-6059 | BRACKET (wide units) | 1 | ||
| 28 | 92-6056 | BRACKET (narrow units) | 1 | |
| 92-6058 | BRACKET (wide units) | 1 | ||
| 55-7172 | SCREW - brackets | 6 | ||
| 55-7170 | LOCKWASHER | 6 | ||
| 55-7075 | FLATWASHER | 6 | ||
| 55-7373 | NUT - captive | 2 |
