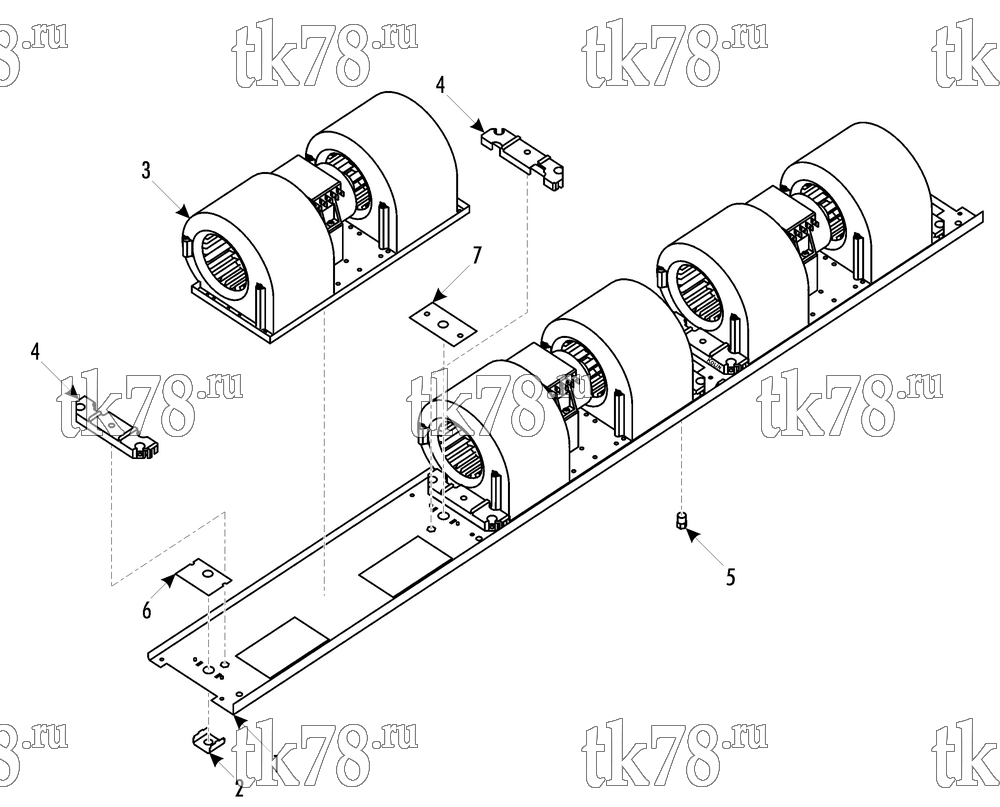

Установкa Thermo King ATHENIA S805 N/W 1000, 1004 схема BLOWERS (007352) – 210H6
Обновление от: 7/27/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-8514 | PLATE - blower | 1 | |
| 55-5130 | RIVET - plate to unit | A/R | ||
| 2 | 92-9146 | BRACKET | 4 | |
| 3 | 78-1297 | BLOWER | 3 | |
| 4 | 51-259 | HOLDER - blower | 6 | |
| 55-7372 | SCREW - holder | 6 | ||
| 55-7170 | LOCKWASHER | 6 | ||
| 55-7075 | FLATWASHER | 6 | ||
| 5 | 55-7373 | NUT - captive | 6 | |
| 6 | 92-6215 | SPACER | 2 | |
| 7 | 92-6090 | SPACER | 2 |
