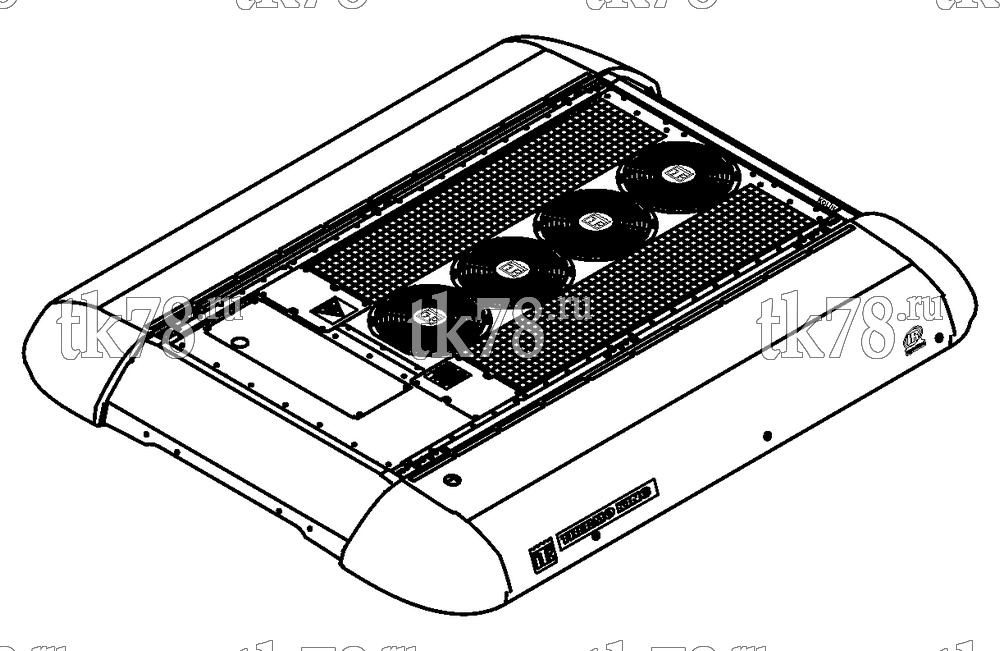

Установкa Thermo King ATHENIA S805 N/W 1000, 1004 схема ATHENIA S805 N/W 1000, 1004 REFERENCE SHEET – 11U8
Обновление от: 8/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 900234 | System ATHENIA S805 N 1000, R134a | 03/06 | ||
| 900235 | System ATHENIA S805 N 1004, R134a | 03/06 | ||
| 900236 | System ATHENIA S805 W 1000, R134a | 03/06 | ||
| 900237 | System ATHENIA S805 W 1004, R134a | 03/06 | ||
| 007029 | Unit ATHENIA S805 N 1000, R134a | 07/11 | ||
| 007030 | Unit ATHENIA S805 N 1004, R134a | 07/11 | ||
| 007031 | Unit ATHENIA S805 W 1000, R134a | 07/11 | ||
| 007032 | Unit ATHENIA S805 W 1004, R134a | 07/11 | ||
| 007033 | Air Intake Module - Narrow - Short w/ Fresh Air Damper 100% - before 3/2007 | 03/06 | ||
| 007034 | Air Intake Module - Narrow - Short w/o Fresh Air Damper 0% - before 3/2007 | 03/06 | ||
| 007035 | Air Intake Module - Wide - Short w/ Fresh Air Damper 100% - before 3/2007 | 03/06 | ||
| 007036 | Air Intake Module - Wide - Short w/o Fresh Air Damper 0% - before 3/2007 | 03/06 | ||
| 007376 | Air Intake Module - Narrow - Short L2 w/ 100 %Fresh Air - 3/2007 & after | 07/11 | ||
| 007377 | Air Intake Module - Narrow - Short L2 w/ 0% Fresh Air - 3/2007 & after | 07/11 | ||
| 007378 | Air Intake Module - Wide - Short L2 w/ 100% Fresh Air - 3/2007 & after | 07/11 | ||
| 007379 | Air Intake Module - Wide - Short L2 w/ 0% Fresh Air - 3/2007 & after | 07/11 | ||
| 007039 | Plate with Brush Type Blowers - for unit S805 - before 3/2007 | 03/06 | ||
| 006598 | Plate with Brush Type Blowers ( 2 x 3pc) | 03/06 | ||
| 007352 | Plate Blower Module - 3/2007 & after | 07/11 | ||
| 720756 | ClimaAIRE II DP with Display w/Harness (Unit - Driver panel - 9m length) | 03/06 | ||
| 720757 | ClimaAIRE II DP with Display w/Harness (Unit - Driver panel - 12m length) | 03/06 | ||
| 720811 | ClimaAIRE II DP with Display w/Harness (Unit - Driver panel - 15m length) | 03/06 | ||
| 720758 | ClimaAIRE II DP with Display w/Harness (Unit - Driver panel - 18m length) | 03/06 | ||
| 700460 | ClimaAIRE II DP with Display w/Harness (Unit - Driver panel - 15m length) | 03/06 | ||
| 700563 | ClimaAIRE II DP with Display w/Harness (Unit - Driver panel - 9m length) | 03/06 | ||
| 700564 | ClimaAIRE II DP with Display w/Harness (Unit - Driver panel - 12m length) | 03/06 | ||
| 700565 | ClimaAIRE II DP with Display w/Harness (Unit - Driver panel - 18m length) | 03/06 | ||
| 719302 | Harness ClimaAIRE (Unit - Compressor - 8.3m length) | 03/06 | ||
| 719343 | Harness ClimaAIRE (Unit - Compressor - 10m length) | 03/06 | ||
| 720028 | Harness ClimaAIRE (Unit - Compressor - 14m length) | 03/06 | ||
| 700504 | Harness ClimaAIRE (Unit - Compressor - 8.3m length) | 03/06 | ||
| 700507 | Harness ClimaAIRE (Unit - Compressor -10m length) | 03/06 | ||
| 700505 | Harness ClimaAIRE (Unit -Compressor -14m length) | 03/06 | ||
| 700461 | Harness ClimaAIRE (Unit - Compressor -14m length) | 03/06 | ||
| 700566 | Harness ClimaAIRE (Unit - Compressor - 8.3m length) | 03/06 | ||
| 700567 | Harness ClimaAIRE (Unit - Compressor -10m length) | 03/06 | ||
| 006990 | Kit Electric ATHENIA IntelligAIRE II Control, System S800, 100% Fresh Air - before 5/2006 | 03/06 | ||
| 006991 | Kit Electric ATHENIA IntelligAIRE II Control, System S800, Return Air - before 5/2006 | 03/06 | ||
| 007291 | Kit Electric IntelligAIRE II Control S805 w/o Blowers, 100% Fresh Air - 5/2006 & after | 07/11 | ||
| 007292 | Kit Electric IntelligAIRE II Control S805 w/o Blowers, 0% Fresh Air - 5/2006 & after | 07/11 | ||
| 700261 | Kit Electro Installation ATHENIA IntelligAIRE II | 07/11 | ||
| 880269 | Kit Installation ATHENIA | 03/06 | ||
| 718220 | Compressor X430, 24V, Pulley 2B/2A; Dia. 9"" | 07/11 | ||
| 720587 | Compressor X430-HPC,R134a, 24V, Pulley 2B/2A, 8.03"/ 8.89""" | 07/11 | ||
| 700574 | Kit compressor S391-HPC, R134A,pulley 2B/2A | 03/06 | ||
| 880110 | Kit Adapters for X430 Compressor (#16, #20) | 03/06 | ||
| 700474 | Kit Adapters for S391 and S616 Compressors (#16, #20) | 03/06 | ||
| 880153 | Kit Adapters Compressor (#20, #24) | 07/11 | ||
| 720208 | Kit Fittings Refrigerant ORS (#20/#16 - Suct 0 deg/Disch 0 deg) | 03/06 | ||
| 720209 | Kit Fittings Refrigerant ORS (#20/#16 - Suct 45 deg/Disch 45 deg) | 03/06 | ||
| 720210 | Kit Fittings Refrigerant ORS (#20/#16 - Suct 90 deg/Disch 90) | 03/06 | ||
| 720211 | Kit Fittings Refrigerant Flange (#20/#16 - Suct 0 deg/Disch 0 deg) | 03/06 | ||
| 720212 | Kit Fittings Refrigerant Flange (#20/#16 - Suct 90 deg/Disch 90 deg) | 03/06 | ||
| 720213 | Kit Fittings Refrigerant Flange (#20/#16 - Suct 45 deg/Disch 45 deg) | 03/06 | ||
| 720214 | Kit Fittings Refrigerant Flange (#20/#16 - Suct 90 deg/Disch 0 deg) | 03/06 | ||
| 720365 | Kit Fittings Refrigerant Flange (#20/#16 - Suct 0 deg/Disch 90 deg) | 03/06 | ||
| 720366 | Kit Fittings Refrigerant Flange (#20/#16 - Suct 90 deg/Disch 45 deg) | 03/06 | ||
| 720367 | Kit Fittings Refrigerant Flange (#20/#16 - Suct 45 deg/Disch 90 deg) | 03/06 | ||
| 720215 | Kit Hose Refrigerant (#16, #20, 1m - without fittings) | 03/06 | ||
| 720216 | Kit Hose Refrigerant (#16, #20, 6m - without fittings) | 03/06 | ||
| 720217 | Kit Hose Refrigerant (#16, #20, 7m - without fittings) | 03/06 | ||
| 720218 | Kit Hose Refrigerant (#16, #20, 8m - without fittings) | 03/06 | ||
| 720219 | Kit Hose Refrigerant (#16, #20, 9m - without fittings) | 03/06 | ||
| 720220 | Kit Hose Refrigerant (#16, #20, 10m - without fittings) | 03/06 | ||
| 720221 | Kit Hose Refrigerant (#16, #20, 12m - without fittings) | 03/06 | ||
| 720222 | Kit Hose Refrigerant (#16, #20, 14m - without fittings) | 03/06 | ||
| 720223 | Kit Hose Refrigerant (#16, #20, 16m - without fittings) | 03/06 | ||
| 720224 | Kit Hose Refrigerant (#16, #20, 18m - without fittings) | 03/06 | ||
| 720395 | Kit Fittings for Tube Installation | 03/06 | ||
| 700257 | Kit Suction T-piece Fitting (DN28, 7/8"-14UNF,DN28)" | 03/06 | ||
| 719004 | Kit Water Boost Pump 27 Vdc; Hose connections - I.D. 21mm; for US only | 03/06 | ||
| 719005 | Kit Water Boost Pump; 27 Vdc; Hose connections - I.D. 38mm; 5000L/Hr | 03/06 | ||
| 719006 | Harness (Unit - Water Boost Pump - 14m length) | 03/06 | ||
| 719007 | Harness (Unit - Water Boost Pump - 9m length) | 03/06 | ||
| 719008 | Harness (Unit - Water Boost Pump - 7.6m length) | 03/06 | ||
| 700129 | Kit Water Valve 2-way Servomotor | 03/06 | ||
| 700130 | Kit Water Valve 3-way Servomotor | 03/06 | ||
| 700127 | Kit Harness 10m Servomotor Water Valve | 03/06 | ||
| 700128 | Kit Harness 20m Servomotor Water Valve | 03/06 | ||
| 720451 | Harness - Water Valve 10m | 07/11 | ||
| 720450 | Harness - Water Valve 20m | 07/11 | ||
| 700296 | Kit Floor Temperature Sensor ClimaAIRE II 9m | 03/06 | ||
| 719305 | Kit Alternator 150 A, 24 Vdc, 24 V Excitation, 3.25" for ClimaAIRE" | 03/06 | ||
| 719306 | Kit Alternator 125 A, 24 Vdc, 12 V Excitation, 3.25" for ClimaAIRE" | 03/06 | ||
| 709797 | Kit Alternator 150 A, 24 Vdc, 24 V Excitation, 3.25"" | 03/06 | ||
| 711180 | Kit Alternator 125 A, 24 Vdc, 12 V Excitation, 3.25"" | 03/06 | ||
| 715245 | Kit Muffler | 03/06 | ||
| 700178 | Kit Return Air Grill - ATHENIA S800 - S1300 | 03/06 | ||
| 701418 | Kit Return Air Grille - Grey | 07/11 | ||
| 800355 | Kit - Drain Water Hose 20m | 07/11 | ||
| 800356 | Kit - Drain Water Hose, 40m | 07/11 | ||
| 007072 | Kit Electric Assy ATHENIA 100 % Fresh Air - IntelligAIRE II - P180 | 07/11 | ||
| 700398 | Kit Electric IntelligAIRE II - P180 | 07/11 | ||
| 700407 | Kit Compressor for S616, Compressor w/o Clutch | 07/11 | ||
| 700470 | Kit Compressor S616, no Clutch | 07/11 | ||
| 700634 | Kit ClimaAIRE I D w/ Harness 6m | 07/11 | ||
| 700635 | Kit ClimaAIRE I D w/ Harness 8m | 07/11 | ||
| 700636 | Kit ClimaAIRE I D w/ Harness 10m | 07/11 | ||
| 700637 | Kit ClimaAIRE I D w/ Harness 12m | 07/11 | ||
| 700638 | Kit ClimaAIRE I D w/ Harness 14m | 07/11 | ||
| 700639 | Kit ClimaAIRE I D w/ Harness 16m | 07/11 | ||
| 700640 | Kit ClimaAIRE I D w/ Harness 18m | 07/11 | ||
| 700621 | Kit Compressor X430 2B/2A 9 inch 24V w/o Thermistor | 07/11 | ||
| 700629 | Kit Compressor X430 HPC 24V LNG 12-K w/o Thermistor | 07/11 | ||
| 700627 | Kit Compressor X430 HPC LNG PULLEY 2B/2A w/o Thermistor | 07/11 | ||
| 701070 | Kit Compressor Bock FKX 40/560, Clutch 195.8 OD 10K 24V | 07/11 | ||
| 701095 | Kit Bolts Lifting | 07/11 | ||
| 701339 | Kit - Compressor Bock FKX 40/560 | 07/11 | ||
| 800339 | Kit Plate of Decal Assy - R134a | 07/11 | ||
| 702192 | Kit Compressor Bock FKX 40/470 K Clutch LA16.0151Y | 07/11 | ||
| 702193 | Kit Compressor Bock FKX 40/470 K Clutch LA16.0205Y | 07/11 | ||
| 702194 | Kit Compressor Bock FKX 40/470 K Clutch LA16.0228Y | 07/11 | ||
| 702195 | Kit Compressor Bock FKX 40/560 K Clutch LA16.0151Y | 07/11 | ||
| 702196 | Kit Compressor Bock FKX 40/560 K Clutch LA16.0205Y | 07/11 | ||
| 702197 | Kit Compressor Bock FKX 40/560 K Clutch LA16.0228Y | 07/11 | ||
| 702198 | Kit Compressor Bock FKX 40/655 K Clutch LA16.0151Y | 07/11 | ||
| 702199 | Kit Compressor Bock FKX 40/655 K Clutch LA16.0205Y | 07/11 | ||
| 702200 | Kit Compressor Bock FKX 40/655 K Clutch LA16.0228Y | 07/11 | ||
| 702261 | Kit Fittings Refrigerant Flange 20 - Suct 0 deg/16 - Disch 45 deg | 07/11 | ||
| 702262 | Kit Fittings Refrigerant Flange 20 - Suct 45 deg/16 - Disch 0 deg | 07/11 | ||
| 702489 | Kit Crate Dry Narrow ATHENIA S805/S960 | 07/11 | ||
| 720264 | Kit Heating Valve | 07/11 |
