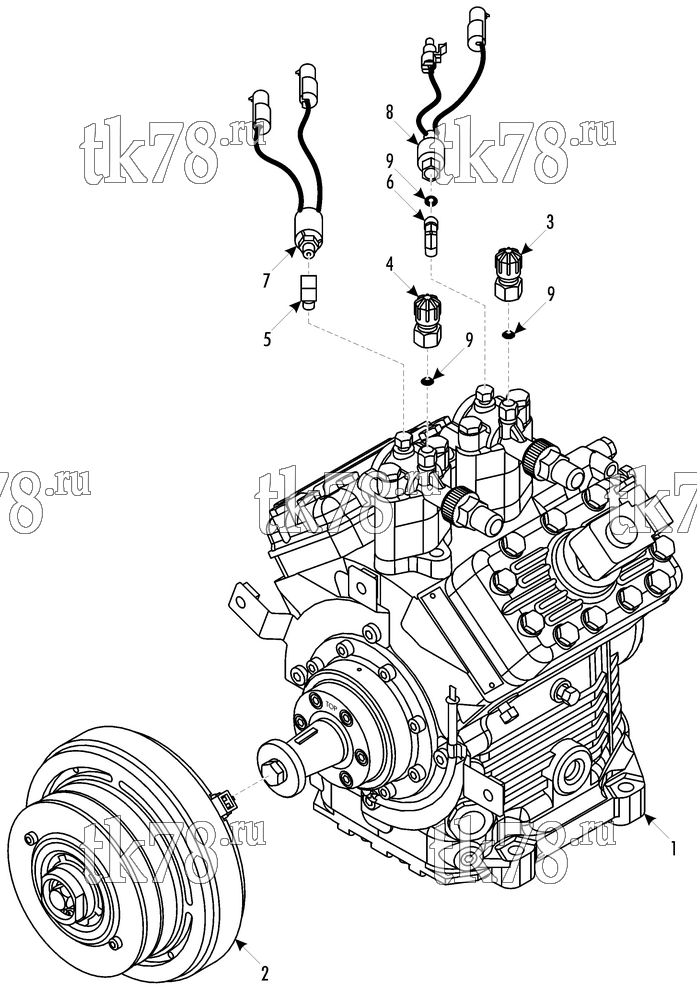

Установкa Thermo King ATHENIA S805 N Citelis схема COMPRESSOR GROUP (KIT 701315) – 237H4
Обновление от: 7/26/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-962 | COMPRESSOR - FKX 40/470 K w/o pulley (see 237H5) | 1 | |
| 2 | 107-369 | CLUTCH - compressor | 1 | |
| 3 | 51-360 | FITTING - low pressure | 1 | |
| 4 | 51-361 | FITTING - high pressure | 1 | |
| 5 | 55-2505 | ELBOW - hpco switch | 1 | |
| 6 | 55-308 | ELBOW - lpco switch | 1 | |
| 7 | 41-4146 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 41-4531 | SWITCH - hpco (switch only) | 1 | ||
| 8 | 41-4147 | SWITCH - lpco (for connectors see 115D14) | 1 | |
| 41-4530 | SWITCH - lpco (switch only) | 1 | ||
| 9 | 33-768 | GASKET | 3 |
