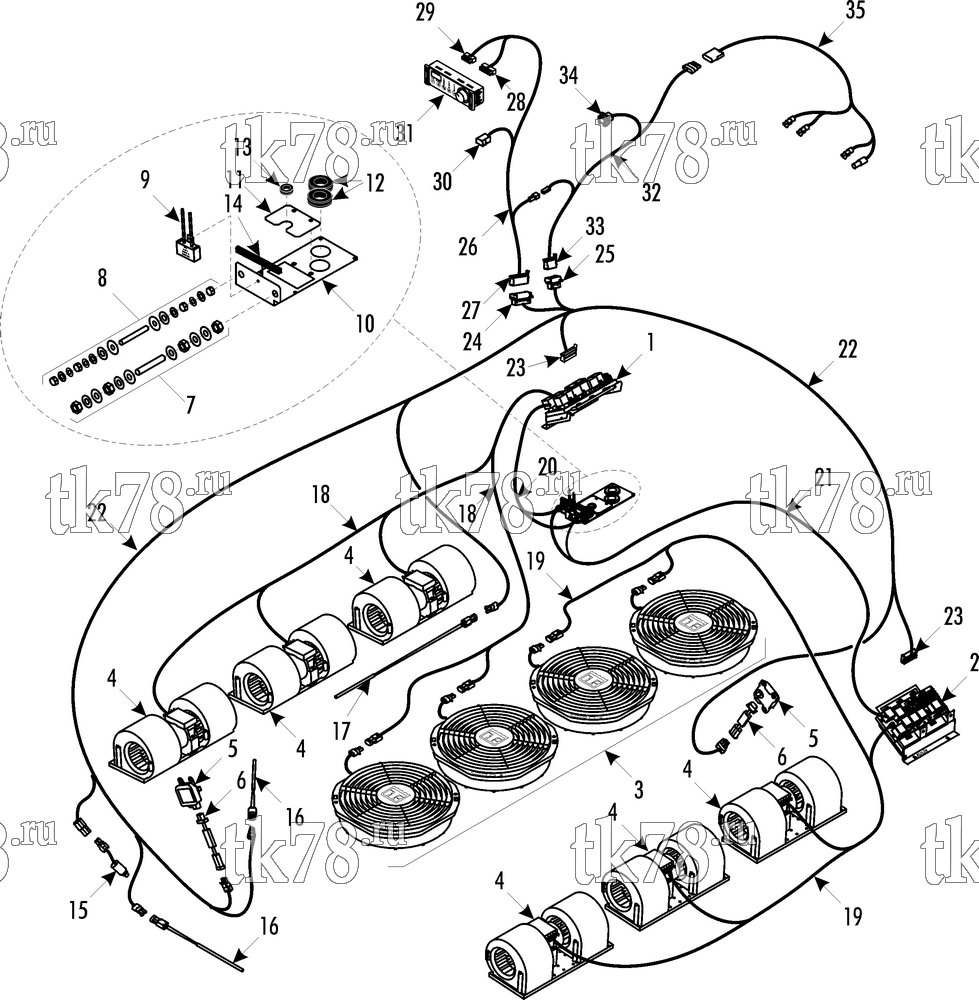

Установкa Thermo King ATHENIA S805 N Citelis схема ELECTRICAL COMPONENTS – 227A4
Обновление от: 10/29/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROLLER - left (see 194H8) | 1 | |
| 2 | NSS | CONTROLLER - right (see 194H9) | 1 | |
| 3 | 78-1414 | FAN (see 210H4) | 4 | |
| 4 | 78-1297 | BLOWER (see 210H6) | 6 | |
| 5 | 41-3255 | SERVOMOTOR (see 224B9) | 2 | |
| 6 | 41-7190 | CONTROLLER - servomotor | 2 | |
| 7 | 55-9191 | STUD - terminal (M10) | 1 | |
| 55-3672 | LOCKWASHER | 6 | ||
| 55-3066 | LOCKWASHER | 2 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-9189 | NUT | 4 | ||
| 8 | 55-9367 | STUD - terminal (M8) | 1 | |
| 55-8631 | WASHER (nylon w/ shoulder) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 9 | 41-6098 | SUPPRESSOR - voltage | 1 | |
| 51-888 | STUD - self clinching | 1 | ||
| 55-7830 | FLATWASHER | 1 | ||
| 55-9057 | LOCKWASHER | 1 | ||
| 55-7749 | NUT | 1 | ||
| 10 | 92-6088 | PLATE - electric connections | 1 | |
| 55-5130 | RIVET - plate | 4 | ||
| 11 | 92-6089 | COVER | 1 | |
| 55-7664 | SCREW - cover | 2 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 55-7866 | NUT - captive | 2 | ||
| 12 | 33-452 | GROMMET (0.875 id) | 2 | |
| 13 | 33-428 | GROMMET (0.50 id) | 1 | |
| 14 | 92-3279 | STRIP - flange | A/R | |
| 15 | 41-5220 | SWITCH - cps (see 224H0) | 1 | |
| 16 | 41-4157 | SENSOR - temperature | 2 | |
| 17 | 41-4335 | SENSOR - temperature | 1 | |
| 18 | 41-8003 | HARNESS - control panel, left | 1 | |
| 19 | 41-7909 | HARNESS - control panel, right | 1 | |
| 20 | 41-7761 | HARNESS - supply, left | 1 | |
| 21 | 41-7762 | HARNESS - supply, right | 1 | |
| 22 | 41-8004 | HARNESS - control (for connectors see 115D14) | 1 | |
| 23 | 41-3856 | CONNECTOR (18-pin, female) | 2 | |
| 24 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 25 | 41-4054 | CONNECTOR (10-pin, male) | 1 | |
| 41-3968 | BOARD - pc | 1 | ||
| 44-3228 | DIODE - rectifier | 1 | ||
| 26 | 41-8005 | HARNESS - control panel to ClimaAIRE II on the Dash Board (for connectors see 115D14) | 1 | |
| 41-8006 | HARNESS - control panel to ClimaAIRE II in the Air Duct (for connectors see 115D14) | 1 | ||
| 27 | 41-3856 | CONNECTOR (18-pin, female) | 1 | |
| 28 | 41-650 | CONNECTOR - in-line (18 terminal) | 1 | |
| 29 | 41-661 | CONNECTOR - in-line (14 terminal) | 1 | |
| 30 | 41-7662 | CONNECTOR (4-pin) | 1 | |
| 41-3968 | BOARD - pc | 1 | ||
| 41-7307 | RESISTOR (221 kOhm) | 1 | ||
| 31 | 41-4658 | ClimaAIRE II (see 184F9) | 1 | |
| 32 | 41-8007 | HARNESS - control panel to compressor (8.8 m, for connectors see 115D14) | 1 | |
| 33 | 41-3855 | CONNECTOR (10-pin, female) | 1 | |
| 34 | 41-7652 | CONNECTOR (6-pin) | 1 | |
| 44-5537 | SOCKET - relay | 1 | ||
| 41-5657 | RELAY | 1 | ||
| 41-3968 | BOARD - pc | 1 | ||
| 44-3228 | DIODE - rectifier | 1 | ||
| 35 | 41-8008 | HARNESS - compressor (5.2 m, for connectors see 115D14) | 1 |
