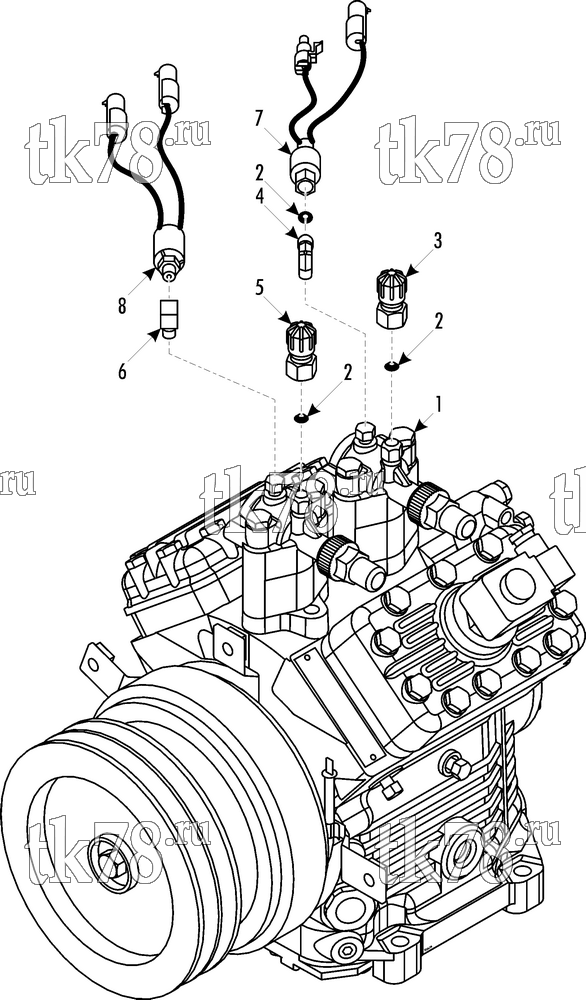

Установкa Thermo King ATHENIA S805 N Citelis схема COMPRESSOR GROUP (KIT 701065) – 227A2
Обновление от: 10/29/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-908 | COMPRESSOR - FKX 40/655K (see 227A3) | 1 | |
| 107-347 | CLUTCH (2SPB, 24V) | 1 | ||
| 2 | 33-768 | GASKET | 3 | |
| 3 | 51-361 | FITTING -highside | 1 | |
| 4 | 55-308 | ELBOW | 1 | |
| 5 | 51-360 | FITTING - lowside | 1 | |
| 6 | 55-2505 | ELBOW | 1 | |
| 7 | 41-4147 | SWITCH - lpco (for connectors see 115D14) | 1 | |
| 41-4530 | SWITCH - only | 1 | ||
| 8 | 41-4146 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 41-4531 | SWITCH - only | 1 |
